Flat Duplex Optical Cable 2F for Data Centers
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Flat Duplex Optical Cable 2F for Data Centers |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Flat Duplex Optical Cable 2F For Data Centers | Attenuation: | Typical 0.36/0.22 |
|---|---|---|---|
| Fiber Count: | 2 | Optical Fiber Diameter(±1µm): | 125µm |
| Coating Diameter(±5µm): | 250µm | Tight Buffer Diameter(±50µm): | 900µm |
| Optic Fiber Color: | 1. White 2. Blue 3. Orange 4. Green 5. Brown 6. Grey7. Red 8. Black 9. Yellow 10. Violet 11. Pink 12. Aqua | Core Reinforce: | Aramid Yarn |
| Sheath Material: | PVC、LSZH | Sheath Diameter: | 3.0±0.1mm |
| Temperature Range: | -20℃-+70℃ | Warranty: | 5 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | duplex fiber optic cable for data centers,2F flat optical cable,data center duplex fiber cable |
||
Product Description
Flat Duplex Optical Cable 2F for Data Centers
Product Overview
Flat duplex optical cable utilizes Φ600µm or Φ900µm compact fiber as the optical transmission medium. The compact fiber is wrapped in aramid yarn as the strength component unit, enclosed in a layer of PVC or LSZH material, and finished with a flat layer of polyvinyl chloride (PVC) or low-smoke halogen-free (LSZH) jacket.
Applications
- Flat Duplex (two basic units inside) moving connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Characteristics
- Adopts tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element provides excellent tensile resistance
- Good flame-retardant performance with low induced attenuation within operating temperature range
Parameters and Properties

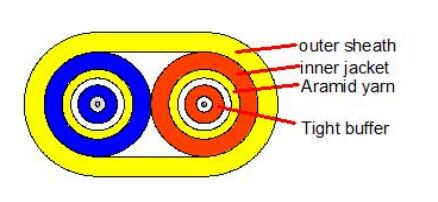

Cable Structure
Specifications
Length: 2000M production optical cable
Cable Marking: Outer sheath printing specifications include: OPTICAL FIBER CABLE 4.0X7.0 SM G657A1-9/125um - LSZH - MM/YY 00000M
Packaging & Delivery
Packaging: Wooden Drums Protection. According to customer or our company request.
Delivery Length: Standard Reel Length: 0.5-2.0 km or according to customer request.
Cable Marking
- Cable Marker every Meter by inkjet printing
- Year of manufacture
- Type of Cable
- Number of fiber
- Cable length
- Etc.
- According to customer or our company request
Product Images
Why Choose TAKFLY
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
