Precision MPO to LC Breakout Patch Cord with 2-Fiber and Optional APC/UPC Connectors for Flexible Connectivity
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO/MTP Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $9.88-US $19.88/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | SC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | 2-Fiber MPO to LC Breakout Patch Cord,Optional APC/UPC MPO to LC Patch Cord,Flexible Connectivity MPO LC Breakout Cable |
||
Product Description
Precision MPO to Duplex LC Breakout Patch Cord
High-performance 2-fiber breakout patch cord with optional APC/UPC connectors for flexible connectivity solutions in data centers and telecommunications networks.
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military applications
- Optical Switch interframe connections
Key Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4, 8, 12, 24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Technical Specifications

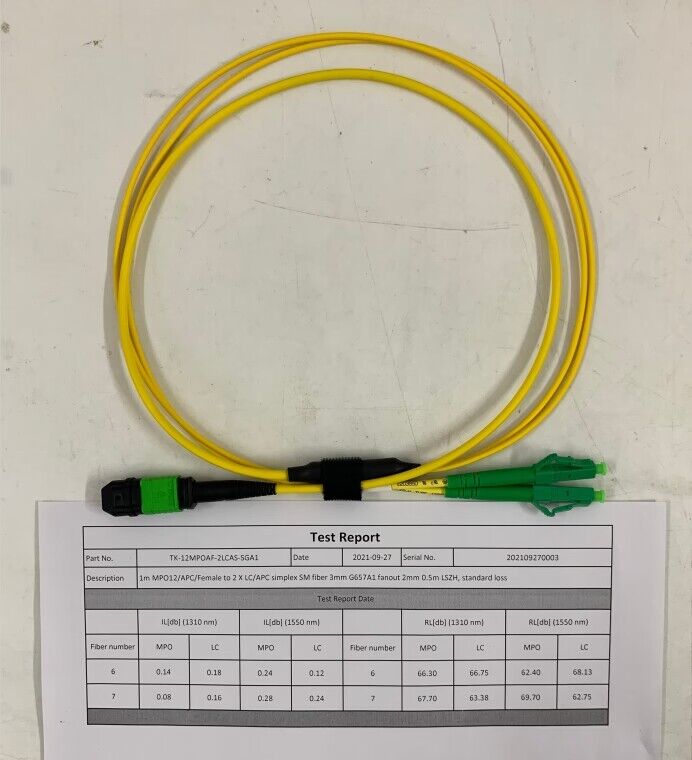

Part Number: TK-12MPOAF-2LCAS-SGA1
Date: 2021-09-27 | Serial Number: 202109270003
Description: 1m MPO 12/APC/Female to 2 X LC/APC simplex SM fiber 3mm G657A1 fanout 2mm 0.5m LSZH, standard loss
| Insertion Loss [dB] | Return Loss [dB] | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber | MPO 1310nm | LC 1310nm | MPO 1550nm | LC 1550nm | Fiber | MPO 1310nm | LC 1310nm | MPO 1550nm | LC 1550nm |
| 6 | 0.14 | 0.18 | 0.24 | 0.12 | 6 | 66.30 | 66.75 | 62.40 | 68.13 |
| 7 | 0.18 | 0.16 | 0.28 | 0.24 | 7 | 67.70 | 63.38 | 69.70 | 62.75 |

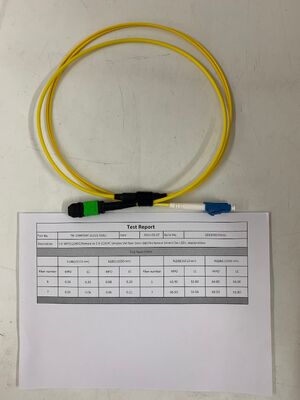

Part Number: TK-12MPOAF-2LCUS-SGA1
Date: 2021-09-27 | Serial Number: 202109270002
Description: 1m MPO 12/APC/Female to 2 X LC/UPC simplex SM fiber 3mm G657A1 fanout 2mm 0.5m LSZH, standard loss
| Insertion Loss [dB] | Return Loss [dB] | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber | MPO 1310nm | LC 1310nm | MPO 1550nm | LC 1550nm | Fiber | MPO 1310nm | LC 1310nm | MPO 1550nm | LC 1550nm |
| 6 | 0.28 | 0.20 | 0.08 | 0.20 | 6 | 61.90 | 53.80 | 64.80 | 54.00 |
| 7 | 0.05 | 0.06 | 0.06 | 0.21 | 7 | 65.50 | 54.50 | 68.50 | 51.80 |
Custom Ordering Options
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to requirements
- MPO/MTP connector specifications: method (A/B/C type), gender (male/female), fiber count
- Insertion/Return Loss: Standard/Low Loss options
- Product type: Pigtail/Patch Cord/LGX Box/Patch Panel
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. More quantity, the price will be more competitive.
Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For large quantities we deliver by sea. We provide quotes with freight and lead time based on your detailed requirements.
How is your quality?
Our production follows IEC and European standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
What's your lead time?
Depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for up to 5000 pieces. We keep regular products in stock and handle urgent orders.
What's your warranty?
1-year warranty for patch cords from delivery date for non-artificial damage. For artificial damage, we provide free repair with freight paid by customer.
What's your packing?
International export standard packaging. Custom logo printing available upon request.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Can I have a sample?
Free samples available for products under $10. Freight paid by buyer before delivery.
How can I order?
- Send inquiry with product name, specification, quantity, and delivery address
- We provide quotation with lead time
- After confirmation, we send Proforma Invoice with bank details
- Production begins after payment receipt
- Confirm consignee details before delivery
- Tracking number provided after shipment
What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
With the same quality standard, if you find better pricing elsewhere, TAKFLY can match it. Our team has 3+ years of optical fiber industry experience and is ready to be your professional product assistant.
