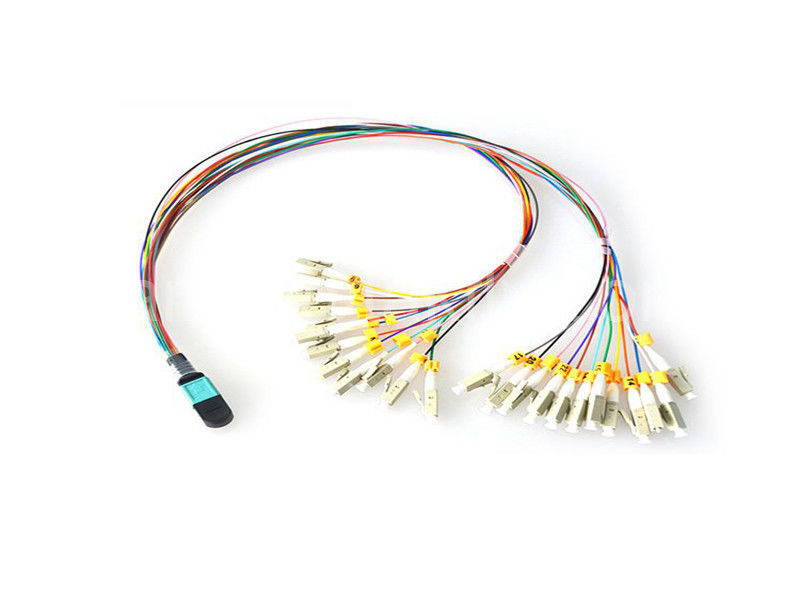

24 Core OM3 Multimode MPO Patch Cord with LSZH Sheath for High-Density Data Centers
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $12.88-US $18.88/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | LC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | OM3 mpo mpo cable,GR326-CORE Patch Cord,LSZH mpo mpo cable |
||
Product Description
Multi Mode OM3 MPO-MPO 24 Core LSZH Patch Cord
Fiber Optic MPO/MTP Patch Cord assemblies are pre-terminated with MPO connectors on both ends. These breakout MPO cables are specifically designed for high-density fiber networks, fast ethernet, fiber channel, data centers, and gigabit ethernet applications.
Key Features
- 100% pre-terminated and factory tested for optimal performance
- Rapid configuration and networking reduces installation time
- Supports 40G and 100G network applications
- LSZH jacket material (OFNR, OFNP also available)
- Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations
- Customized products available
Applications
- CATV and metro test equipment
- FTTH (Fiber to the Home)
- Telecommunication networks
- Local area networks (LAN)
- Wide area networks (WAN)
- Premise installations
- Data processing networks
- Video and martial active device termination
- Optical Distribution Frame
- Optical Network Equipment
Multimode Fiber Bandwidth Specifications
Maximum Bandwidths:
OM1 - 62.5/125μm - 10GBit up to 33 meters (108 feet)
OM2 - 50/125μm - 10GBit up to 82 meters (270 feet)
OM3 - 50/125μm, Laser Optimized - 10GBit up to 300 meters (984 feet)
OM4 - 50/125μm, Laser Optimized - 10GBit up to 550 meters (1805 feet)
OM1 - 62.5/125μm - 10GBit up to 33 meters (108 feet)
OM2 - 50/125μm - 10GBit up to 82 meters (270 feet)
OM3 - 50/125μm, Laser Optimized - 10GBit up to 300 meters (984 feet)
OM4 - 50/125μm, Laser Optimized - 10GBit up to 550 meters (1805 feet)
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Types | LC, SC, ST, FC, MPO/MTP |
| Fiber Mode | SM (G652,G655,G657); MM (OM1-OM5) 50/125μm |
| Minimum Bend Radius | 7.5mm |
| Insertion Loss | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return Loss | SM: APC: 60dB MM: PC: 25dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 100 N |
| Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Ordering Information
When ordering optical fiber patch cords, please specify:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirements
- MPO/MTP connector details: method (A type / B type / C type), male/female, fiber count
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 piece, but prices are more competitive with larger quantities.
Q: Can you quote FOB price?
A: Yes. We deliver by air (DHL, TNT, UPS, FEDEX) or by sea for large quantities.
Q: How is your quality?
A: Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
Q: What's your lead time?
A: For fiber optic patch cords, lead time is 2-3 working days for up to 5,000 pieces. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: 1-year warranty for patch cords (non-artificial damage). For artificial damage, we offer free repair with freight paid by customer.
Q: What's your payment term?
A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
