Rack Mount Fiber Optic PLC Splitter Specification
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Rack Mount Fiber Optic PLC Splitter Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Rack Mount Fiber Optic PLC Splitter Specification | Operating Wavelength(nm): | 1260 ~ 1650 |
|---|---|---|---|
| Type（1*N）: | 1*2 1*4 1*8 1*16 1*32 1*64 | Max.Insertion Loss（dB）: | 3.9 7.2 10.3 13.5 16.8 20.3 |
| Min.Return Loss（dB）: | 55 | Fiber Type: | ITU-T G657A1 , G657A2 And G.652D |
| Max.Temperature Stability（dB）: | 0.5( Typical 0.3 ) | Operating Temperature（℃）: | -40 ~ +85 |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | rack mount fiber optic splitter,PLC splitter with warranty,fiber optic PLC splitter specification |
||
Product Description

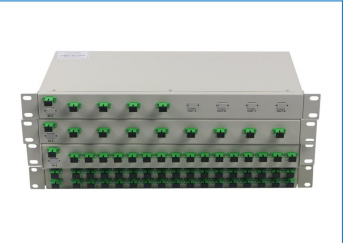

Rack Mount PLC (Planar Lightwave Circuit) Splitter is a power distribution device based on integrated quartz baseplate technology. Single Mode PLC 1×N and 2×N Splitters uniformly divide optical signals from one or two inputs to multiple outputs, and can be operated in reverse to combine multiple signals into one or two fibers.
- Telecommunication sector
- PON Systems
- FTTH (Fiber to the Home)
- CATV
- Video Transmission
- Broadband Operation Wavelength
- Low Insertion Loss
- Low PDL (Polarization Dependent Loss)
- Compact Design
- Good Channel-to-Channel Uniformity
- High Reliability and Stability
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
| Type (1×N) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type (2×N) | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Note: All measurements made at room temperature, connectors not included. Minimum Return Loss: 55 dB for all types.
| Package Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Metal Box (L×W×H mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (L×W×H mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
| Package Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Basic Metal Box (L×W×H mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 |
| Mini Module Metal Box (L×W×H mm) | 70×7×4 | 70×7×4 | 70×7×4 | 80×12×4 | 80×20×6 | 100×40×6 |
| Module Plastic Box (L×W×H mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
A8: EXW, FOB, CFR, CIF, DDU
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
