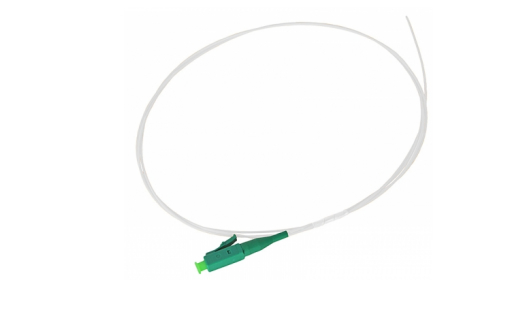

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-SC/UPC 0.9mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | LC Simplex 0.9mm Fiber Optic Pigtail | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM≥ 60 DB | Fiber Type: | SM G657A1 |
| Diameter: | 0.9mm | Connector Type: | LC/APC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 30cm Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Highlight: | 0.9mm simplex fiber optic pigtail,APC connector fiber optic pigtail,G657A1 single mode pigtail |
||
Product Description
LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Application
- CATV
- Telecommunication Networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| End face type | APC |
|---|---|
| Fiber type | SM G657A1 |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | APC SM≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Hytrel |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 30cm or Customized |
| Packing | 12PCS 0.9mm color pigtails in one set |
Why choose TAKFLY - Advantages
Professional manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 500 assembly workers with 5 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
