LC Simplex 0.9mm Fiber Optic Pigtail with Low Insertion Loss for Telecom Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-SC/UPC 0.9mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 35 DB | Fiber Type: | OM1/OM2 |
| Diameter: | 3.0mm | Connector Type: | PC/UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | 0.9mm Fiber Optic Pigtail,LC Simplex Fiber Pigtail,Low Insertion Loss Optical Fiber Pigtail |
||
Product Description

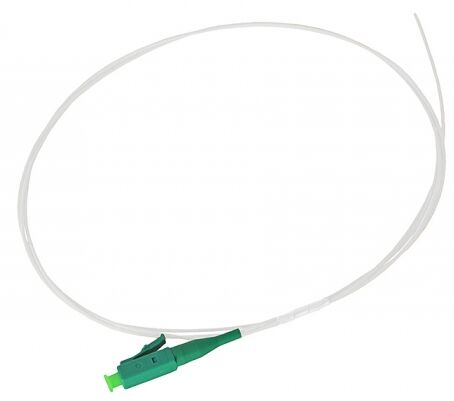

LC Simplex 0.9mm Fiber Optic Pigtail
Product Description
Takfly operates 8 Fiber Optic Patchcord production lines with a daily production capacity of 20,000 units. Established in 2000 with over 400 workers, Takfly has 21 years of manufacturing experience in fiber optic products, specializing in MPO/MTP Patch cords, Fiber Optic Patchcords, pigtails, adapters, attenuators, PLC Splitters, WDM/CWDM/DWDM, Termination Boxes, Fast Connectors, Media Converters, POE Switches, SFP Transceivers, and High Power products.
Certifications include ISO9001, ISO14001, CE, ROHS, REACH, FCC, and CPR.
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| Parameter | Specification |
|---|---|
| End face type | APC |
| Fiber type | SM G657A1 |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Hytrel |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 30cm or Customized |
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. More quantity results in more competitive pricing.
3. Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For large quantities we deliver by sea. We can quote price with freight and lead time after receiving detailed requirements with quantity.
4. How is your quality?
Our production follows IEC and Europe standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
5. What's your lead time?
Depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for up to 5,000 pieces. We keep regular products in stock and can handle urgent orders.
6. What's your warranty?
1-year warranty for patch cords from delivery date for non-artificial damage. For artificial damage, we repair for free with customer paying freight.
7. What's your packing?
International export standard package. Logo printing available upon request before quotation.
8. Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
9. Can I have a sample?
Free samples available for products under $10. Buyer pays freight before delivery.
10. How can I order?
- Send mail or inquiries with product name, specification, and quantity
- We provide quotation with lead time
- After confirmation, we send PI with bank account
- Production begins after payment received
- Confirm consignee before delivery
- Tracking number provided after delivery
11. What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry. It's honored to be your professional product assistant.
