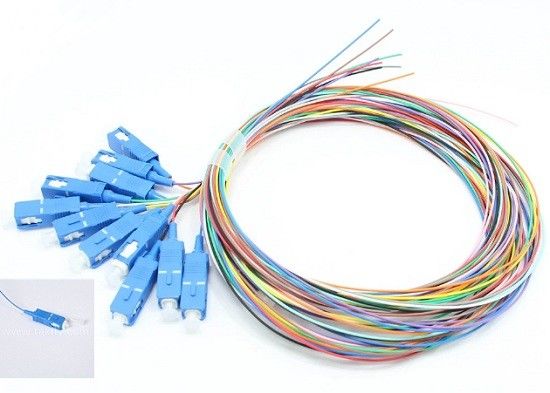

12 Core OS2 UPC Sc Pigtail Single Mode 0.9mm G657A1 Fiber Optic Pigtail Colour Coded

12 Core OS2 UPC Sc Pigtail Single Mode 0.9mm G657A1 Fiber Optic Pigtail Colour Coded

Product Details:

Place of Origin: China
Brand Name: DF/OEM
Certification: CE,RoHS,EMC
Model Number: TK-PT-SC-12F

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: USD3.71-4.29/PCS
Packaging Details: 1pcs a bag
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10,000pcs a month
Get Best Price Contact Now

Detail Information

Product Name: 12F SC Color-coded Pigtail Fiber Type: SM/Singlemode
Polish Type: SC/UPC Cable Type: 0.9mm G652A1
Fiber Core: 12F IR: ≤ 0.3 DB
RL: ≥50dB Cable Length: 1m
Operating Temperature: -20 To 70°C
High Light:

OS2 Fiber Optic Pigtail

,

0.9mm sc pigtail single mode

,

G657A1 Fiber Optic Pigtail

Product Description

SC/UPC 12 Fibres OS2 Singlemode Colour-Coded 0.9mm G657A1 Fiber Optic Pigtail

12F SC colour-coded pigtail Description

One of the primary effects of pigtail is cohesion. The optical fiber and the pigtail connection, the bare fiber and pigtail fusion together into a whole, and the optic pigtail has a single fiber head, through the fiber transceiver is connected. The fiber and twisted pair connection, to the information socket.

In the welding process of optical fiber, the following primary things are comminly used: optical termination box, optical fiber transceiver, pigtail, coupler, special stripping pliers, optical fiber cutting knife, etc.

The comminly used pigtail in the transmission system include SC, FC, LC, E2000, ST, and others.



12F SC colour-coded pigtail Specification:

Item SC pigtail
End face type PC,UPC and APC
Fiber Type SM(G652,G655,G657);MM(OM1-OM5)
Core number 12F
Cable Diameter(mm) 0.9,2.0,3.0 or customized
Insertion loss(dB) ≤ 0.3
Return loss(Min)

UPC SM≥50dB

APC SM≥ 60 dB

PC MM ≥ 35 dB

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20~70
Storage Temperature -40~80
Outer Sheath Material PVC,LSZH
Bending radius
(Static/Dynamic)
10D/20D
Length Customized



12F SC colour-coded pigtail Features

  • Low insertion loss and High reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard:Telcordia GR-326-CORE

12F SC colour-coded pigtail Application

  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)

12 Core OS2 UPC Sc Pigtail Single Mode 0.9mm G657A1 Fiber Optic Pigtail Colour Coded 0

Patchcord/Jumper Odering information

Fiber Type SM(G652,G655,G657);MM(OM1-OM5)
Fiber count simplex or dumplex
Cable diameter 0.9, 2.0, 3.0 or customized
Connector LC, SC,FC,ST
Polish type APC, UPC or PC
Jacktet Type LSZH or PVC
Length 1m...
Breakout lengths customized
Jacket color Yellow, Aqua, Violet or customized



FQA :

1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.

3. Q: Can you quote FOB price?
A: Yes. 1) We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
2) We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
3) We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.

10. Q: How can I order?
A:1). Send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2). We will offer our quotation with lead time.
3). After the quotation confirmed, we will send a PI with our bank account.
4). Production will be arranged after the payment received.
5). Confirm the consignee with you before we deliver it.
6). The tracking number will be provided after the delivery.

11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
