FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly |
| Model Number: | SM G657A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.5-US$100 |
| Delivery Time: | 3-12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30000/Mon |
|
Detail Information |
|||
| Highlight: | FTTH drop cable G657A1 SC/APC,fiber optic pigtail non messenger wire,SC/APC patchcord 3.0*2.0mm |
||
|---|---|---|---|
Product Description
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
Product Overview
This Fast Connect drop cable features an anti-vibration design that enables plug-and-play installation without splicing. This design facilitates rapid deployment, reduces installation time, and ensures high network reliability and durability.
Outline Drawing
All dimensions are in mm
Fiber Optic Attributes
- Mode field diameter: 8.6μm ± 0.4μm at 1310nm
- Cladding diameter: 125.0μm ± 0.7μm
- Coating diameter: 245μm ± 10μm
- Coating-cladding concentricity error: ≤ 12.5μm
- Cut-off wavelength: ≤ 1260nm
- Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB
FTTH Cable Specifications
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: FRP
- Diameter: 0.4mm
Outer Sheath
- Material: LSZH Black
- Cable size: 3.0 × 2.0mm
Connector Features & Benefits
- Fast deployment, plug and play
- IP67 protection
- Anti-vibration design
- Ferrule protection and orientation design
- Easy to install and uninstall
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC (1310) |
| Insertion Loss | ≤ 0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤ 0.3 dB + 0.25 dB/km*L(km) @ 1550nm |
| Return Loss | ≥ 60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃ to +60℃ |
| Operating Temperature | -25℃ to 70℃ |
| Storage Temperature | -40℃ to 75℃ |
| Cable pull | 80N |
Optical Fiber Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength (N) | 40 | 80 |
| Crush load (N) | 500 | 1000 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (μm) | 125 ± 1 | |
| Cladding non-circularity | ≤ 1.0% | |
| Coating diameter (μm) | 242 ± 7 | |
Schematic Drawing

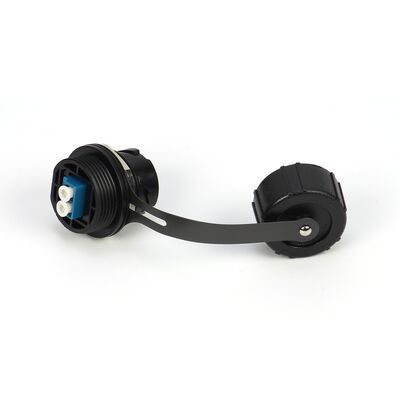

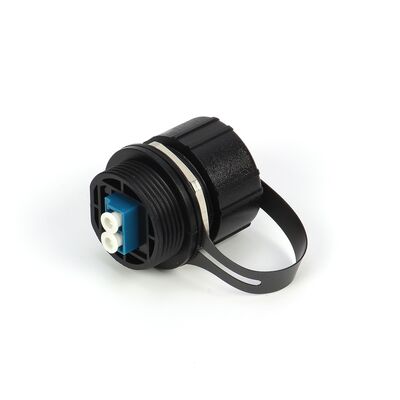

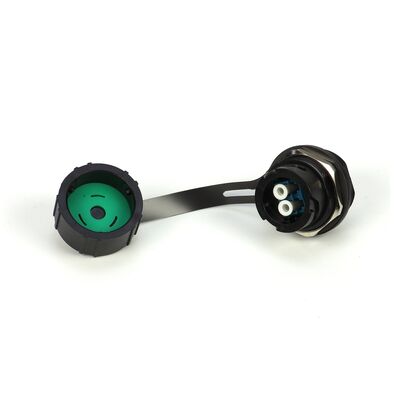

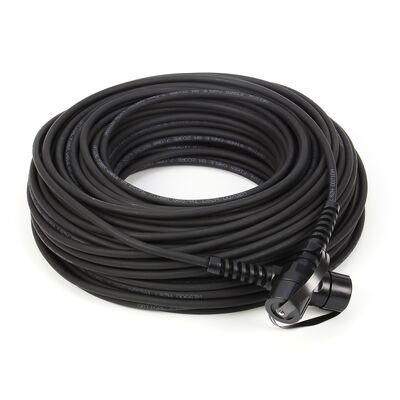

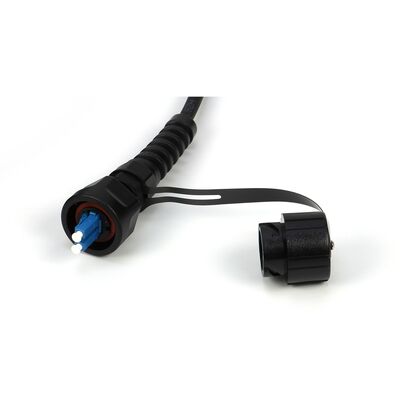

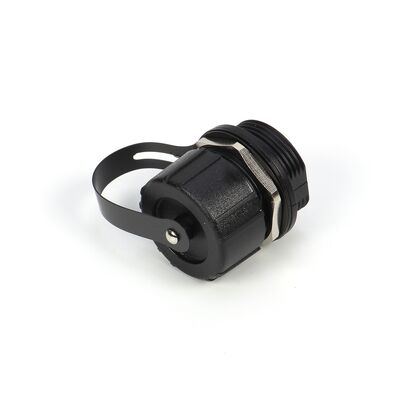

Product Images

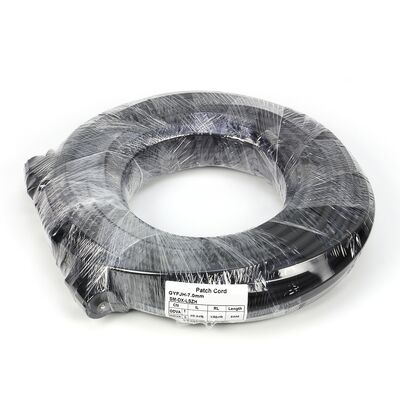

Packaging
- Stretch film packaging of the offered products
- As shown below
