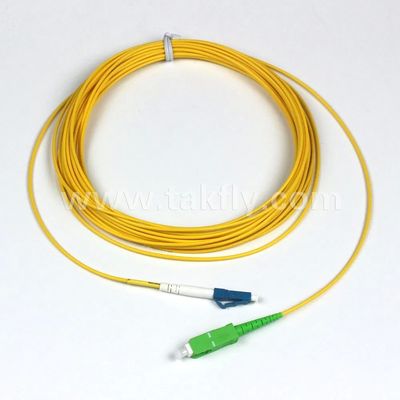

LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength
Product Summary
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations. Key Features Low insertion loss and high return loss MT based Multi...
Product Custom Attributes
Model NO.:
LC/UPC Patch Cord
Connection Structure:
MPO-MPO
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
>10000N
Core:
Multicore
Sheath Material:
LSZH,PVC
Fiber Type:
OS1, OS2, Om1, Om2, Om3, Om4
Connector Type:
Sc, FC, St, LC,Odc,Iplc,Pdlc, MTRJ, MPO,MTP,Mu,SMA
Cable Color:
Yellow, Blue, Green, Aqua, Red, Beige,Purple
Insertion Loss:
≤0.3 DB
Return Loss:
≥45 DB
Operating Wavelength:
1310, 1510 Nm
Operating Temperature:
-40~75 ºC
Storage Temperature:
-45~85 ºC
Highlight:
3 Years Warranty Fiber Optic Patch Cord
,100N Lateral Pressure Fiber Optic Jumper
,>10000N Tensile Strength Fiber Optic Cable
Basic Properties
Place of Origin:
Shenzhen, China
Brand Name:
OED/ODM
Certification:
RoHS, CE, Reach
Document:
Trading Properties
Minimum Order Quantity:
10
Price:
0.45
Packaging Details:
Standard Export Carton box
Delivery Time:
3-7 working days( depends on quantity)
Payment Terms:
T/T
Supply Ability:
5000 pcs /day
Product Description
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations.
Key Features
- Low insertion loss and high return loss
- MT based Multi-fiber Connector supporting up to 12 fibers
- Exceptional reliability and stability
- Excellent repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥45 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

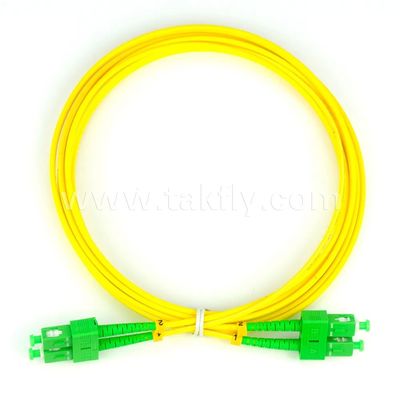

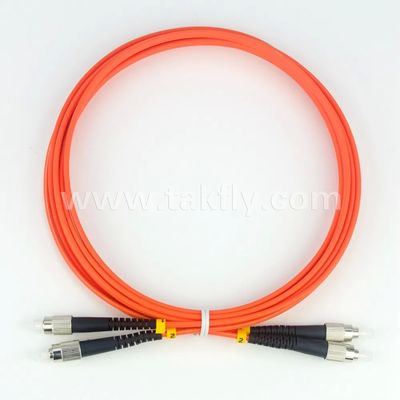

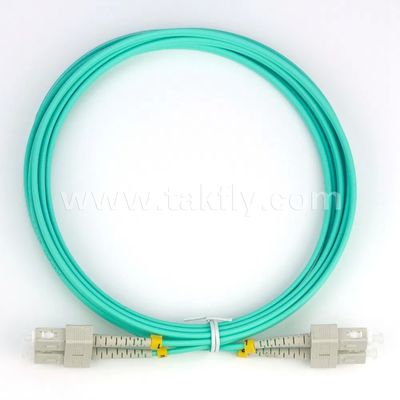

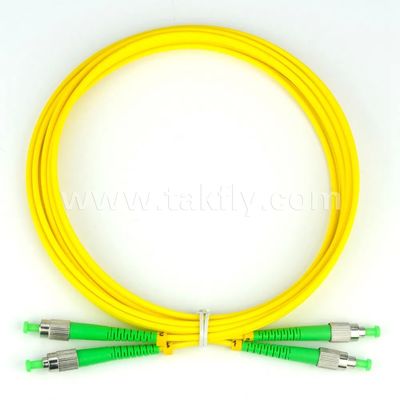

Product Images
