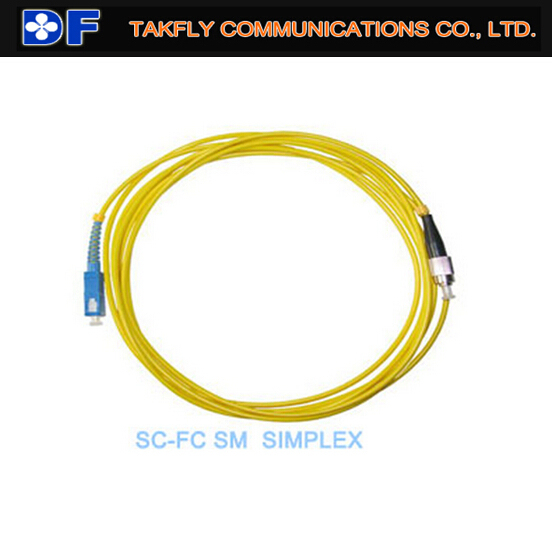

SC to FC Simplex Single Mode Fiber Optic Patch Cord with PVC Sheath and Customized Length Options
Product Summary
SC to FC SM Simplex Fiber Optic Patch Cord High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 ...
Product Custom Attributes
Connection Structure:
FC-SC
Allowed Lateral Pressure:
>1000(N/100mm)
Allowed Tensile Strength:
1000N<10000N
Core:
Single Core
Sheath Material:
PVC
Fiber Type:
0.9mm 2.0mm 3.0mm
Fiber Length:
1m 3m 5m 10m Or Customized
Connector:
Sc To FC
Insertion Loss:
<0.3dB
Return Loss:
≥50dB
Repeatability:
≤0.1
Durability:
<0.1dB Typical Change,1000 Mating
Interchangeability:
≤0.2dB
Operating Temperature:
-20°C ~ +70°C
Storage Temperature:
-40°C ~ +80°C
Highlight:
Simplex Fiber Optic Patch Cord
,PVC Sheath Fiber Optic Cable
,Customized Length Optical Patch Cord
Basic Properties
Certification:
RoHS, CE
Trading Properties
Minimum Order Quantity:
100
Price:
0.75
Product Description
SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
