Simplex SC APC to LC UPC 9/125um OS1 Fiber Patch Cord 0.3dB Loss
Product Summary
Simplex SC APC to LC UPC 9/125um OS1 Patch Cord Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system ...
Product Custom Attributes
Connection Structure:
12cores Fiber Jumper
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Double Core
Sheath Material:
PVC Or LSZH
Connector Type:
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect
Cable Jacket Color:
Yellow,Blue,Green,Aqua,Red,Magenta,Beige
Cable Outer Diameter:
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Polishing:
PC,Upc,APC
Fiber Type:
OS1,OS2,Om1,Om2,Om3,Om4
Cable Jacket Material:
PVC,LSZH,Ofnp,PE
Fiber Cores:
Sx,Dx,4~144 Multi-Fibers Cores
Return Loss:
PC>30dB; APC> 50dB
Insertion Loss:
< 0.3 DB
Highlight:
Simplex SC APC to LC UPC fiber patch cord
,OS1 fiber optic cable with 0.3dB loss
,9/125um SC APC LC UPC patch cable
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
0.56
Product Description

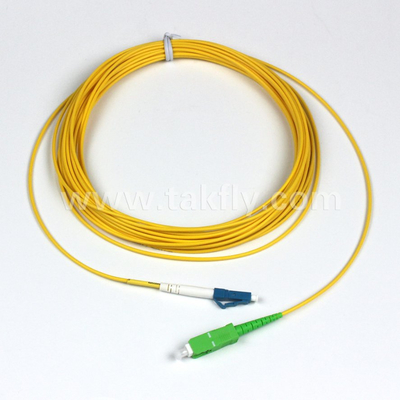

Simplex SC APC to LC UPC 9/125um OS1 Patch Cord
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connections. High quality at competitive pricing through direct sourcing.
Key Features
- Low insertion loss
- High return loss (minimal reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Type | Singlemode (UPC/APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 125.3+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 125.5+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 126.0+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | - |
Available Connector Types
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |
