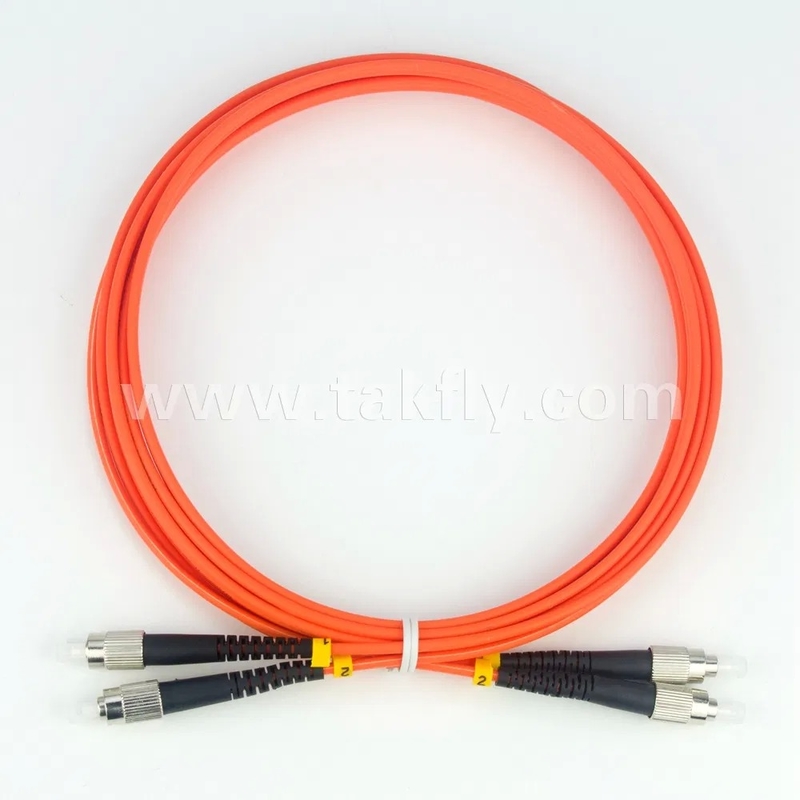

Takfly FC-FC Duplex Fiber Patch Cord 2m 62.5/125um 3.0mm
Product Summary
FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and connect in minutes at equipment and fiber patch panels. Our quick connector system ...
Product Custom Attributes
Connection Structure:
FC-FC
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Double Core
Sheath Material:
PVC
Connector Type:
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect
Cable Outer Diameter:
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
MPO MTP Polishing:
PC,Upc,APC
Fiber Type:
OS1,OS2,Om1,Om2,Om3,Om4,Om5
Cable Jacket Material:
PVC,LSZH,Ofnr,Ofnp,PE
Fiber Cores:
Sx,Dx,4~144 Multi-Fibers Cores
Return Loss:
PC>30dB; APC> 60dB
Insertion Loss:
< 0.3 DB
Operating Temperature:
-45 To +85 Degree
Highlight:
FC-FC duplex fiber patch cord
,62.5/125um fiber optic cable
,3.0mm duplex fiber patch cable
Basic Properties
Place of Origin:
China Mainland
Brand Name:
Takfly
Certification:
RoHS, CE, ISO9001, VDE, CCC
Document:
Trading Properties
Minimum Order Quantity:
1
Price:
0.6
Packaging Details:
Standard export packing: Carton box
Delivery Time:
2-15 working days, depends on quantity
Payment Terms:
T/T,L/C,MoneyGram,Western Union
Supply Ability:
5000 pcs/day
Product Description
FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and connect in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key steps are completed in the factory to ensure excellent connections. High quality at low cost through direct sourcing.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Specifications
| Singlemode (UPC) | Singlemode (APC) | Multimode | |
|---|---|---|---|
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.1db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85 degree | ||
Ferrule Hole Sizes
| Singlemode (UPC/APC) | Multimode |
|---|---|
| 125.0+1/-0um, Concentricity: ≤1.0um | 125.0um, Concentricity: ≤3.0um |
| 125.3+1/-0um, Concentricity: ≤1.0um | |
| 125.5+1/-0um, Concentricity: ≤1.0um | |
| 126.0+1/-0um, Concentricity: ≤1.0um |
Product List
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |
