OM3 Duplex LC Fiber Patch Cord 0.9mm-3.0mm PVC/LSZH
Product Summary
OM3 Duplex LC Fiber Optic Patch Cords Product Description Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector ...
Product Custom Attributes
Connection Structure:
Duplex Fiber Jumper
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Multicore
Sheath Material:
PVC Or LSZH
Connector Type:
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect
Cable Outer Diameter:
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
MPO MTP Polishing:
PC,Upc,APC
Fiber Type:
OS1,OS2,Om1,Om2,Om3,Om4
Cable Jacket Material:
PVC,LSZH,Ofnp,PE
Fiber Cores:
Sx,Dx,4~144 Multi-Fibers Cores
Return Loss:
PC>30dB; APC> 50dB
Insertion Loss:
< 0.3 DB
Operating Temperature:
-45 To +85 Degree
Highlight:
OM3 duplex LC fiber patch cord
,0.9mm PVC fiber optic cable
,LSZH duplex LC patch cord
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
1.49
Product Description
OM3 Duplex LC Fiber Optic Patch Cords
Product Description
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality at a competitive price.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.3dB | ≤ 0.2dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45°C to +85°C | ||
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm 125.3+1/-0μm, Concentricity: ≤1.0μm 125.5+1/-0μm, Concentricity: ≤1.0μm 126.0+1/-0μm, Concentricity: ≤1.0μm |
125.0+1/-0μm, Concentricity: ≤0.5μm 125.3+1/-0μm, Concentricity: ≤0.5μm 125.5+1/-0μm, Concentricity: ≤0.5μm 126.0+1/-0μm, Concentricity: ≤0.5μm |
125.0μm, Concentricity: ≤3.0μm 127.0μm, Concentricity: ≤3.0μm 128.0μm, Concentricity: ≤3.0μm |
Product Variants
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

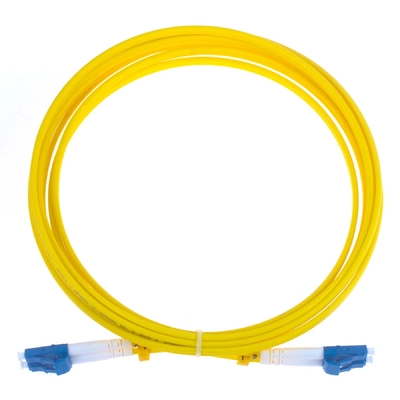

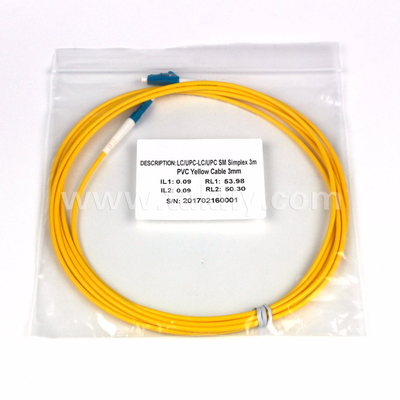

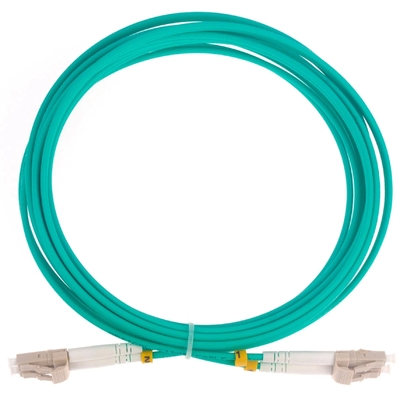

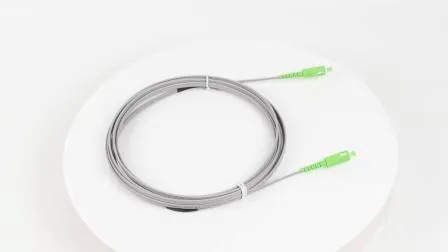

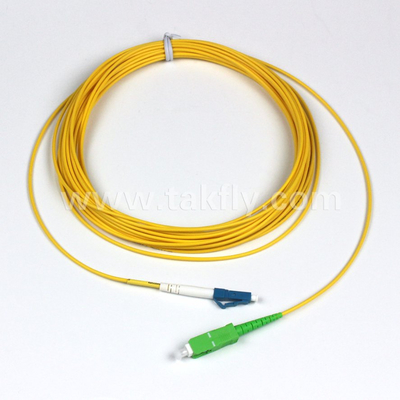

Product Images
