SC-SC Single Mode Duplex Fiber Optic Patch Cable 0.9mm-3.0mm
Product Summary
Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable The Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable is a high-performance patch cord designed for connecting devices in fiber optic networks. These ISO/IEC 11801 compliant cables feature SC/APC connectors for reliable signal ...
Product Custom Attributes
Connection Structure:
SC-SC
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Simplex Duplex Quard
Sheath Material:
PVC, LSZH
Fiber Mode:
Single Mode
Cable Diameter:
0.9mm,2.0mm,3.0mm
Operation Wavelength:
1310/1550nm
Cable Length:
1m,3m,5m Or Customized
Operating Temperature:
-40c~+80c
Insertion Loss:
≤0.20dB
Changeability:
≤ 0.20dB
Radius Of Curvature:
10 ≤ R ≥25 Nm
Insert And Pull Frequency:
> 1000 Time
Highlight:
SC-SC single mode fiber optic cable
,duplex fiber optic patch cable 0.9mm
,single mode fiber optic cable 3.0mm
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
0.75
Product Description
Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable
The Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable is a high-performance patch cord designed for connecting devices in fiber optic networks. These ISO/IEC 11801 compliant cables feature SC/APC connectors for reliable signal transmission.
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability between connectors
- Supports 10 Gigabit data transmission rates
- Available with multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN networks
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | °C | -40 ~ +85 |

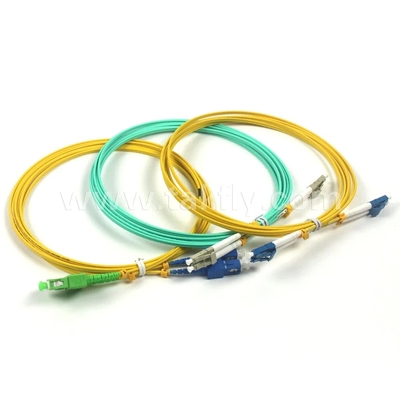

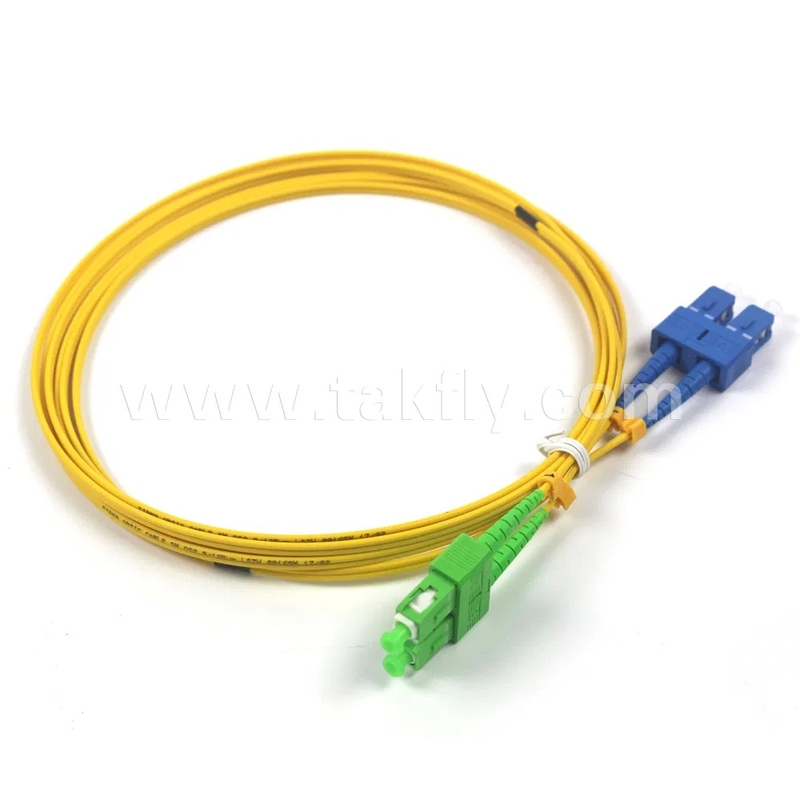

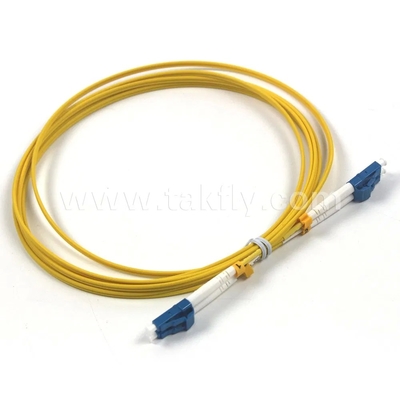

Product Images
