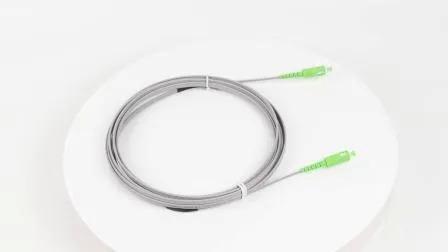

3.0mm SC Fiber Optic Patch Cord 3m LSZH G652D Single Core
Product Summary
Shenzhen Factory SM MM Simplex Duplex LC/SC/ST/FC 0.9 2.0 3.0mm Fiber Optic Patch Cord SC-SC fiber patch cord is used to attach one device to another for signal routing. The SC (Subscriber Connector) is a general purpose push/pull style connector featuring a square, snap-in design that latches with ...
Product Custom Attributes
Connection Structure:
SC
Material Shape:
Round Wire
Lateral Pressure:
>1000(N/100mm)
Tensile Strength:
>10000N
Core Type:
Single Core
Sheath Material:
PVC Or LSZH
Connector Type:
Sc, FC, St, LC,Odc,Iplc,Pdlc, MTRJ, MPO,MTP,Mu,SMA
Length:
3m,5m,10 Or Customized
Material:
LSZH,PVC,PE,PU
Fiber Type:
G652D,G655,G657A1,G657A2
Fiber OD:
125±0.2um
Insertion Loss:
0.2dB (Typical), 0.3dB (Max)
Return Loss:
PC: 50dB, UPC: 55dB, APC: 65dB
Operation Temperature:
-40°C~+85°C
Storage Temperature:
-40°C~+85°C
Highlight:
3.0mm SC fiber optic patch cord
,LSZH G652D single core cable
,3m SC fiber optic cable
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
0.61
Product Description

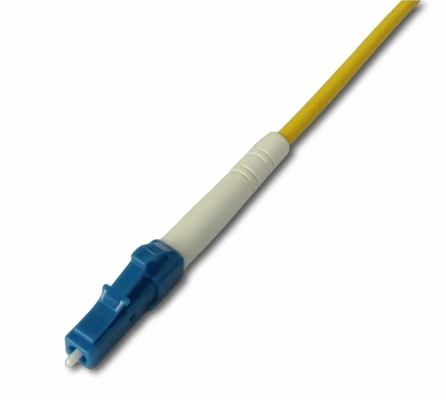

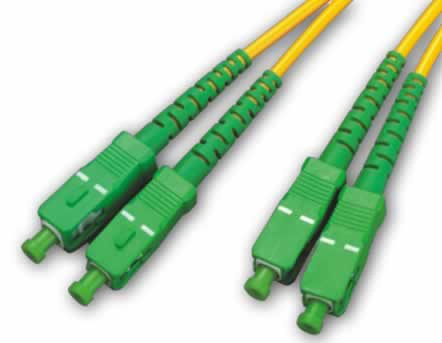

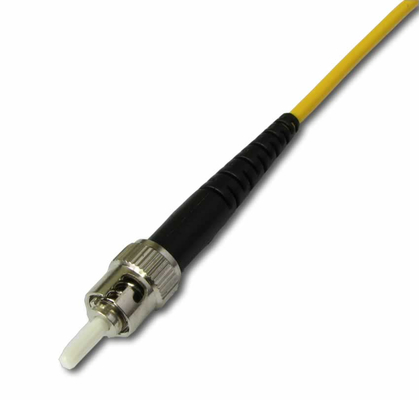

Shenzhen Factory SM MM Simplex Duplex LC/SC/ST/FC 0.9 2.0 3.0mm Fiber Optic Patch Cord

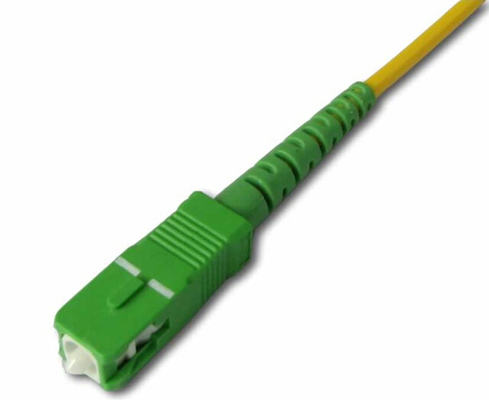

SC-SC fiber patch cord is used to attach one device to another for signal routing. The SC (Subscriber Connector) is a general purpose push/pull style connector featuring a square, snap-in design that latches with a simple push-pull motion and is keyed for proper alignment.
Key Features
- Low insertion loss and high return loss
- High density connection with easy operation
- Excellent reliability and stability
- Superior repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Performance Specifications
| Parameter | Unit | SM | MM |
|---|---|---|---|
| Normal Fiber OD | um | 125±0.2 | 125±0.2 |
| Connector Type | SC,FC,ST, E-2000, LC, MU, MTRJ | SC,FC,ST, E-2000, LC, MU, MTRJ | |
| Insertion loss (Typical) | dB | 0.2 | 0.4 |
| Insertion loss (Max) | dB | 0.3 | 0.5 |
| Return Loss (Typical) | dB | PC:50, UPC:55, APC:65 | 35 |
| Mating Durability (500 cycles) | dB | 0.2 | |
| Temperature Stability | dB | 0.3 | |
| Operation Temperature | °C | -40 to +85 | |
| Storage Temperature | °C | -40 to +85 | |
