MTRJ-MTRJ Duplex Single Mode Fiber Patch Cord 0.2dB Insertion Loss
Product Summary
MTRJ-MTRJ Duplex Single Mode Fiber Optic Patch Cord MTRJ-MTRJ Duplex Singlemode Optical Patch Cord Applications CATV Telecom networks Optical test equipment Local area networks Wide area networks Data processing networks Features Low insertion loss value High back reflection loss value Stable ...
Product Custom Attributes
Connection Structure:
MTRJ
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
<100N
Core:
Double Core
Sheath Material:
PVC
Insertion Loss:
0.2dB
Return Loss:
50dB
Tensile Strength:
10kgs
Operating Temperature:
-40~85 Degree
Suitable Fiber:
9/125 50/125 62.5/125
Insert-pull Test:
1000 Times
Repeatability:
<=0.1
Ceramic Ferrule Specification:
125.5um Concentricity Deviations:<=1um | 127um Concentricity Deviations:<=3um
Production Capacity:
50,000/Week
Highlight:
MTRJ-MTRJ duplex fiber patch cord
,single mode fiber optic cable
,low insertion loss fiber patch cord
Basic Properties
Certification:
RoHS, CE
Trading Properties
Minimum Order Quantity:
1
Price:
1.8
Product Description

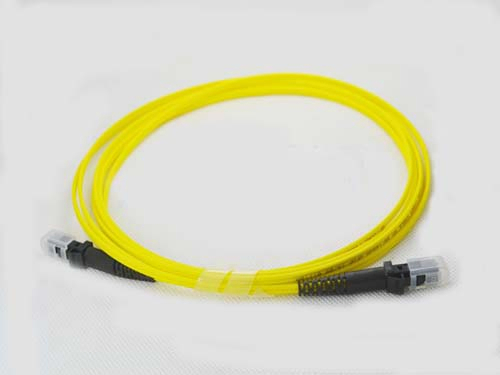

MTRJ-MTRJ Duplex Single Mode Fiber Optic Patch Cord
MTRJ-MTRJ Duplex Singlemode Optical Patch Cord
Applications
- CATV Telecom networks
- Optical test equipment
- Local area networks
- Wide area networks
- Data processing networks
Features
- Low insertion loss value
- High back reflection loss value
- Stable capability and high reliability
- Precise connector
- Excellent mechanical capability
- Boots in a variety of colors
Specifications
| Item | Single Mode | Multi Mode |
|---|---|---|
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40ºC ~ +85ºC | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviations:≤3um |
| Suitable Fiber | 9/125um | 50/125um, 62.5/125um |
