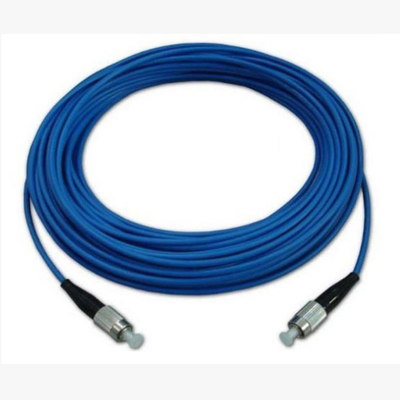

ST SM Simplex Armored Fiber Optic Patch Cord 10m 15m Custom Length
Product Summary
ST SM Simplex Customized Armored Fiber Optic Patch Cord Product Features Conforms to IEC, EIA-TIA, and Telecordia performance requirements Custom connectors provide waterproof, gasproof capabilities and high temperature resistance Can be wired similarly to ordinary electric cable installations ...
Product Custom Attributes
Model NO.:
TK-00112111
Connection Structure:
ST
Material Shape:
Flat Wire
Allowed Lateral Pressure:
>1000(N/100mm)
Allowed Tensile Strength:
1000N<10000N
Core:
Single Core
Sheath Material:
LSZH/PVC
Fiber Type:
Single Mode
Cable Length:
10m,15m, Or Upon Request
Insertion Loss:
Less Than 1dB
Return Loss:
More Than 55dB
Tight Buffer OD:
0.6mm ± 0.05mm
Outer Jacket OD:
3.0 +/- 0.2 Mm
Tube Inner Diameter:
1.5mm ± 0.2mm
Min. Bend Radius:
≥ 40 ± 5mm
Highlight:
ST SM simplex fiber optic patch cord
,armored fiber optic cable 10m
,custom length fiber optic patch cord
Basic Properties
Certification:
RoHS, CE
Trading Properties
Minimum Order Quantity:
10
Price:
3.5
Product Description
ST SM Simplex Customized Armored Fiber Optic Patch Cord
Product Features
- Conforms to IEC, EIA-TIA, and Telecordia performance requirements
- Custom connectors provide waterproof, gasproof capabilities and high temperature resistance
- Can be wired similarly to ordinary electric cable installations
- Rodent-resistant design with space-saving, low-cost construction
- Enhanced stability and security
- Easy installation and maintenance
- Available in different fiber types
- Offered in standard and custom lengths
- RoHS, REACH & SvHC compliant
Technical Parameters
| ITEM | SIMPLEX | DUPLEX | DESCRIPTION |
|---|---|---|---|
| Fiber count | 1 | 2 | |
| Tight Buffer | OD 0.6mm ± 0.05mm | OD 0.6mm ±0.05mm | Blue/Yellow |
| Kevlar | 2 * 1110 dtex * 2 | 2 * 1110 dtex * 2 | Yellow |
| Outer Jacket | OD 3.0 +/- 0.2 mm | OD 3.3 +/- 0.1 mm | PVC, LSZH |
Armoured Flexible Tube Specifications
| Parameter | Specification |
|---|---|
| Tube Material | Stainless |
| Inner Diameter | 1.5mm ± 0.2mm |
| Tensile Strength | ≤ 147N |
| Min. Bend Radius | ≥ 40 ± 5mm |
| Pressure Resistance | ≤ 2450/50mm |
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. 1) We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver by sea. 2) We can quote price with freight and lead time after receiving detailed requirements with quantity. 3) We have competitive shipping forwarders.
Q: How is your quality?
A: Our production follows IEC, Europe standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
Q: What's your lead time?
A: Depends on quantity and products. For fiber optic patch cord, lead time is 2-3 working days for up to 5000 pcs. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: 1 year warranty for patch cords since delivery for non-artificial damage. For artificial damage, we offer free repair with buyer covering freight.
Q: What's your packing?
A: International export standard package. Custom logo printing available upon request before quotation.
Q: Can you offer OEM/ODM?
A: Yes, all products accept OEM/ODM. We can sign Confidentiality Agreement.
Q: Can I have a sample?
A: Free samples available for products under $10. Buyer pays freight before delivery.
Q: How can I order?
A: 1) Send inquiry with product name, specification, quantity and delivery address. 2) We provide quotation with lead time. 3) After confirmation, we send PI with bank details. 4) Production begins after payment. 5) Confirm consignee before delivery. 6) Tracking number provided after shipping.
Q: What's your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For large amounts: 50% deposit in advance, 50% balance before delivery.
