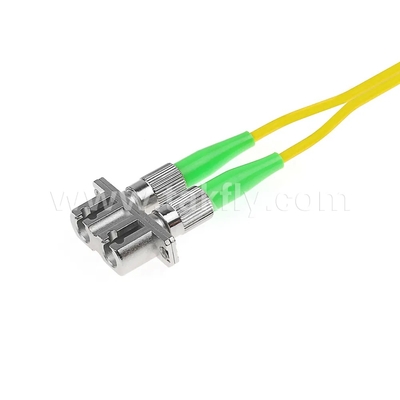

E2000-SC Duplex Fiber Optic Patchcord 1.6mm G652D G657A Single Mode
Product Summary
CE RoHS Qualified FCAPC to FCAPC Singlemode G652D G657A Duplex Fiber Optic Patchcord Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode ...
Product Custom Attributes
Connection Structure:
E2000-Sc
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Double Core
Sheath Material:
PVC/LSZH/Ofnp/Ofnr
Fiber Type:
G652D, G655, G657
Polishing:
PC, Upc, APC
Operating Temperature:
-40c~+80c
Cable Length:
1m.3m.5m Or Customized
Fiber Mode:
Single Mode Or Multi-Mode
Cable Diameter:
1.6mm, 2.0mm, 3.0mm
Operation Wavelength:
1310/1550nm
Insertion Loss:
≤0.20dB
Return Loss:
≥60dB
Highlight:
duplex fiber optic patchcord
,single mode fiber optic cable
,G652D G657A fiber optic
Basic Properties
Place of Origin:
Shenzhen of China
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
0.01
Product Description

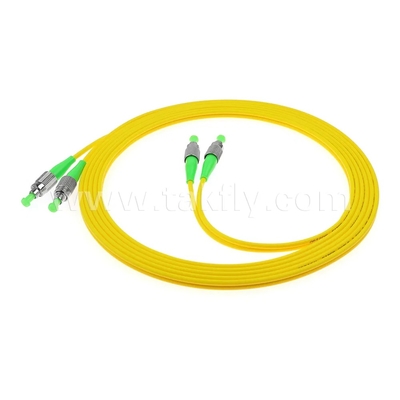

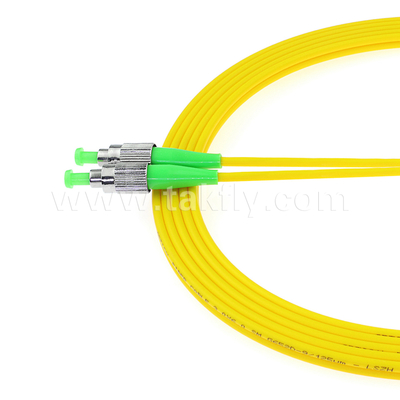

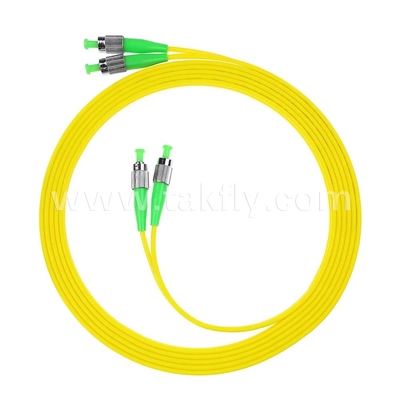

CE RoHS Qualified FCAPC to FCAPC Singlemode G652D G657A Duplex Fiber Optic Patchcord
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
Key characteristics:
- All connectors have precision pre-radiused zirconia ferrules
- ST and FC connectors have metal bodies
- Corning, YOFC, OFS fiber is standard
- Standard and custom configurations available
- Duplex clips included with duplex configurations
Features
- Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard
- Connector type standard: IEC61574 series
- Low Insertion Loss: IEC 61300-3-4, IL≤0.20dB
- High Return Loss: IEC61300-3-6; RL≥60dB
- Flammability: IEC60332-1
- Excellent repeat plug feature and interchangeability
- Ceramic Ferrule with high-density docking (concentricity ≤0.5)
- Available with general PVC or LSZH cable options
Advantages
- 4-stage polishing process: 1200um, 9um, 1um and 0.5um polishing
- Ferrule concentricity <0.5
- Insertion Loss <0.2dB
- Fast lead time: 2-4 working days
- Manufacturing machines imported from Germany and Japan
Applications
- Telecommunications
- CATV, LAN, MAN, WAN, Test & Measurement
- Medical applications
Specifications
| Item | Parameter |
|---|---|
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss(dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5 (Typical 0.3) |
| Operating Temperature(ºC) | -40 ~ +85 |
| Storage Temperature(ºC) | -40 ~ +85 |
All measurements are made at room temperature, and connectors not included
Why Choose TAKFLY - Our Advantages
Professional Manufacturer
- 24+ years manufacturing experience in fiber optic products - one stop purchasing
- 450+ assembly workers with 3+ years experience
- 26 R&D Engineers
- 16 Sets Germany imported Injection Machines and 10+ Cable Production Lines

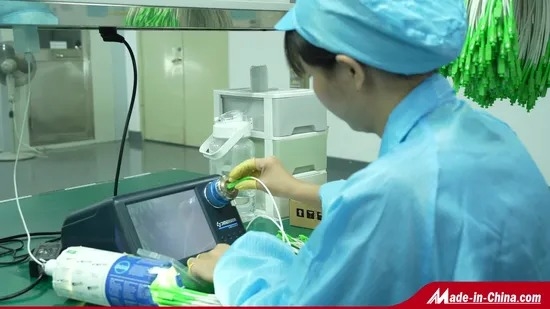

- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand accepted
- Exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- 24/7 after-sales service available
Quality Control
- Raw material incoming inspection before production
- Full check after every individual process
- Full check of production half done
- Full check of finished products before packing
- Final spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available per request
Shipping
- Express: DHL, UPS, FEDEX, TNT, EMS (3-5 working days) with tracking
- By Sea or Air: Can use your forwarder or our cooperated one
Payment Terms
T/T, Paypal, Western Union and L/C accepted
Pricing
Negotiable for large quantities
With over 10 years of experience in this field, we provide excellent service and professional support. Contact us today for inquiries or product questions!
