LC/PC Simplex OS2 Fiber Optic Patch Cord 3m 9/125
Product Summary
LC/PC Simplex OD 2mm SM OS2 3m 9/125 Fiber Optic Patch Cord A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features LC (Lucent Connector) interface, which offers a compact form factor at half the size of ST connectors. Key Features Low insertion loss ...
Product Custom Attributes
Connection Structure:
LC
Material Shape:
Round Wire
Lateral Pressure:
>1000(N/100mm)
Tensile Strength:
>10000N
Core Type:
Single Core
Sheath Material:
PVC Or LSZH
Insertion Loss:
Less Than 0.3dB
Return Loss:
More Than 45dB
Operating Wavelength:
1310 1510nm
Operating Temperature:
-40~75
Storage Temperature:
-45~85
Fiber Type:
OS1, OS2, Om1, Om2, Om3, Om4
Insertion Loss Change:
< 0.1dB
Return Loss Change:
< 5dB
Insert & Pull Force:
2kg
Highlight:
LC/PC simplex OS2 fiber patch cord
,OS2 fiber optic cable 3m
,9/125 duplex fiber optic patch cord
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
1
Price:
0.56
Product Description
LC/PC Simplex OD 2mm SM OS2 3m 9/125 Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features LC (Lucent Connector) interface, which offers a compact form factor at half the size of ST connectors.
Key Features
- Low insertion loss and high return loss
- Compact, lightweight design for high-density connections
- Excellent exchangeability between components
- High reliability and stability
- Supports 10 Gigabit data transmission rates
- Multiple connector types available: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC, and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, and WAN infrastructure
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | ºC | -40~+85 |

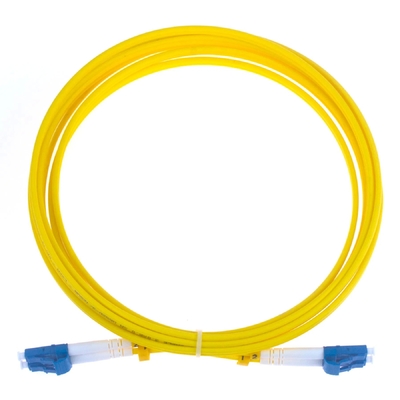

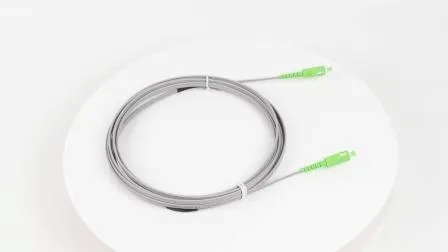

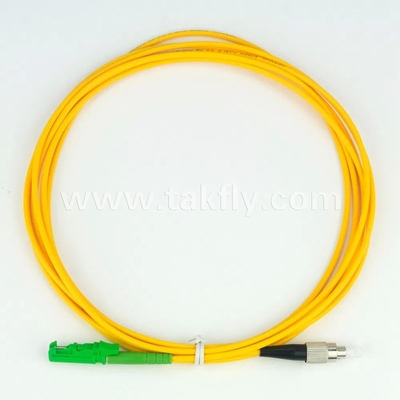

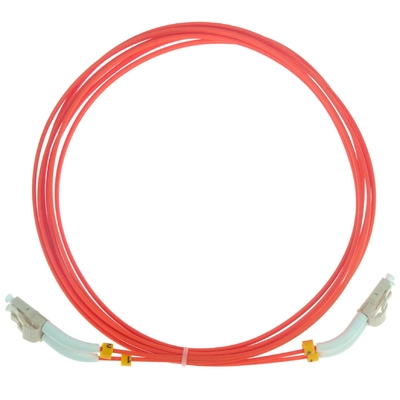

Product Images
