SC/APC Duplex 9/125um Singlemode Fiber Optic Cable 3.0mm PVC
Product Details:
| Certification: | RoHS, CE, ISO9001, VDE, CCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1.56 |
|
Detail Information |
|||
| Connection Structure: | SC-SC | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Lateral Pressure: | 100(N/100mm)<1000(N/100mm) | Allowed Tensile Strength: | 100N<1000N |
| Core: | Single Core | Sheath Material: | PVC Or LSZH |
| Connector Type: | Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect | Cable Outer Diameter: | 0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| MPO MTP Polishing: | PC,Upc,APC | Fiber Type: | OS1,OS2,Om1,Om2,Om3,Om4 |
| Cable Jacket Material: | PVC,LSZH,Ofnp,PE | Fiber Cores: | Sx,Dx,4~144 Multi-Fibers Cores |
| Return Loss: | PC>30dB; APC> 50dB | Insertion Loss: | < 0.3 DB |
| Operation Wavelength: | 850nm,1310nm,1550nm | ||
| Highlight: | SC/APC duplex singlemode fiber cable,9/125um fiber optic cable with PVC,3.0mm singlemode fiber optic cable |
||
Product Description

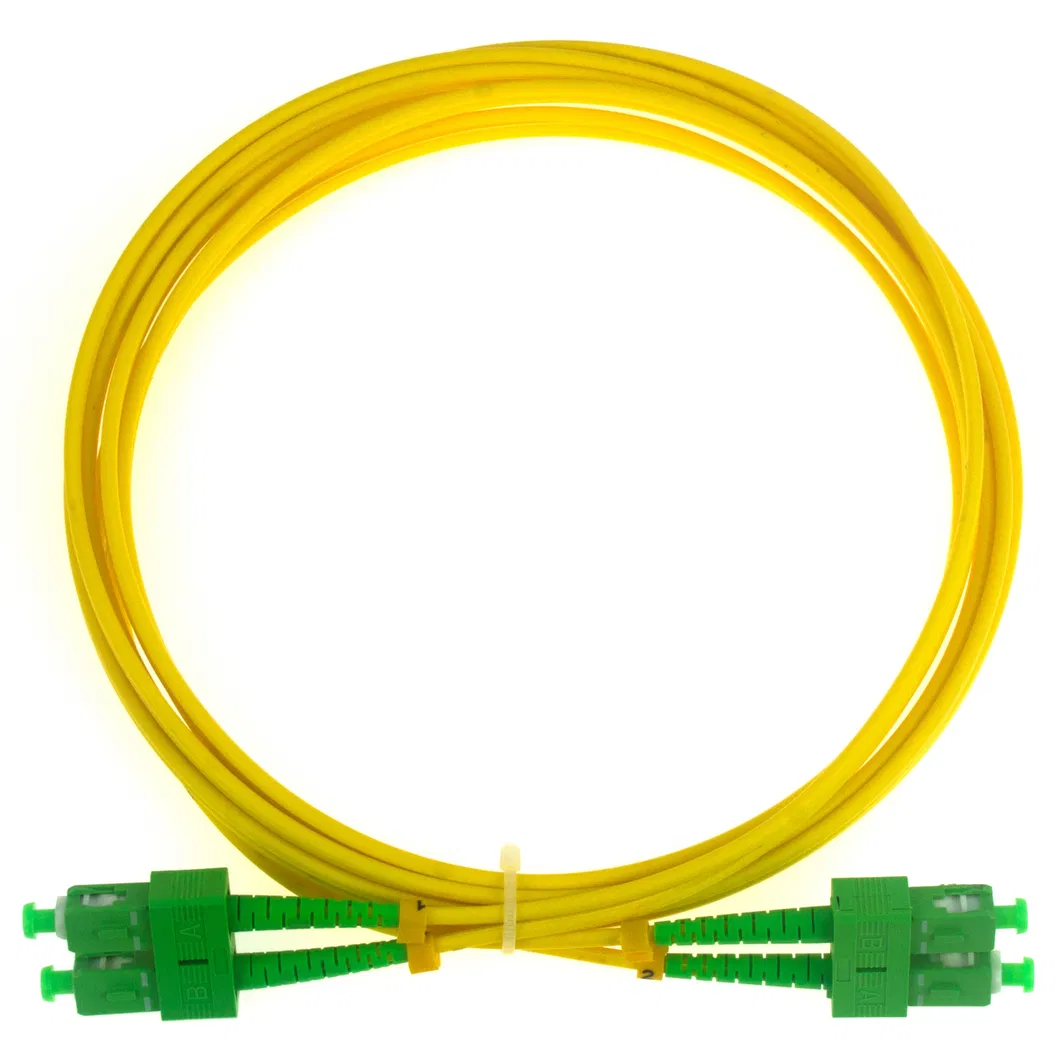

SC/APC Duplex 9/125μm Singlemode Communication Cable
Product Description
High-performance singlemode fiber optic cable with SC/APC connectors, designed for reliable communication networks with low insertion loss and high return loss.
Specifications
- Type: SC-SC
- Polishing: PC (APC/UPC)
- Insertion Loss: ≤0.2 dB
- Return Loss: ≥50dB
- Exchangeability: ≤0.2dB
- Repeatability: ≤0.2dB/1000times
- Operation Wavelength: 850nm, 1310nm, 1550nm
- Operating Temperature: -30°C to +75°C
- Storage Temperature: -40°C to +85°C
- Cable OD: 3.0mm/2.0mm/0.9mm
- Cable Material: OFNR, LDZH & Polarization maintaining
- Mode: 9/125μm
- Fiber Cable Type: PVC 3.0mm
- Available Cores: Single core, dual-core, 4 core, 6 cores, 12 core (customizable)
- Connector Options: FC, SC, ST, LC, MU, MTRJ, E-2000
- Custom Lengths Available
Key Features
- Low insertion loss
- High return loss (low reflection)
- Easy installation
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Performance Specifications
| Singlemode (UPC) | Singlemode (APC) | Multimode | |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45°C to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Connector Options
| Singlemode 9/125 | Multimode (50/125 or 62.5/125) |
|---|---|
| ST | ST |
| SC | SC |
| FC | FC |
| LC | LC |
| MU | MU |
| MTRJ(female) | MTRJ(female) |
| MTRJ(male) | MTRJ(male) |
| DIN | E2000 |
| E2000 |
