LC to LC 10G OM3 Fiber Patch Cord 2.0mm Duplex
Product Summary
LC to LC 10G Multimode OM3 Fiber Optic Patch Cords Product Details Item: Nice price OEM service fiber patch cord Connector: LC, SC, FC, ST etc Inserted core cover: PC, UPC, APC Fiber type: singlemode, multimode, OM3 Cable type: simplex, duplex, bundle, ribbon Cable diameter: 0.9/2.0/3.0mm Cable ...
Product Custom Attributes
Connection Structure:
LC
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Multicore
Sheath Material:
PVC
Cover Material:
PVC,LSZH
Type:
Simplex,Duplex
Length:
1m, 2m Or Other Length
Diameter:
0.9,2.0,3.0mm
Insertion Loss SM:
≤0.25dB
Insertion Loss MM:
≤0.30dB
Return Loss SM:
≥45dB
Return Loss MM:
≥35dB
Operating Temperature:
-40°C~+75°C
Highlight:
LC to LC OM3 fiber patch cable
,10G duplex fiber optic cord
,2.0mm LC fiber patch cord
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE
Trading Properties
Minimum Order Quantity:
1
Price:
1
Product Description
LC to LC 10G Multimode OM3 Fiber Optic Patch Cords
Product Details
- Item: Nice price OEM service fiber patch cord
- Connector: LC, SC, FC, ST etc
- Inserted core cover: PC, UPC, APC
- Fiber type: singlemode, multimode, OM3
- Cable type: simplex, duplex, bundle, ribbon
- Cable diameter: 0.9/2.0/3.0mm
- Cable color: yellow, orange, aqua, grey etc
Key Features
- Various connector types available
- Low back reflection loss
- Compact size
- Low insertion loss
- High Return Loss
- Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
- Singlemode Fiber or Multimode Fiber Available (For Simplex or Duplex)
Applications
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Technical Specifications
| Item | Mode Type | PC | SPC | UPC | APC |
|---|---|---|---|---|---|
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test: Additional Loss≤0.1dB, Return Loss Variability<5dB | |||||
| Temperature Stability(-40°C~85°C): Additional Loss≤0.2dB, Return Loss Variability<5dB | |||||
| Operating Temperature: -40°C~+75°C | |||||
| Storage Temperature: -40°C~+85°C | |||||
| Option: Cable Diameters; 0.9, 2mm, 3mm & others | |||||
| Type: simplex, duplex, Material Type: pvc, hytrel, LSZH, OFNP, OFNR | |||||

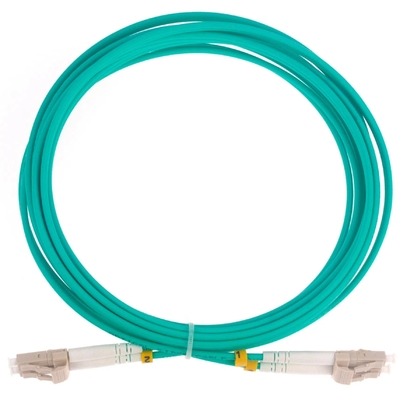

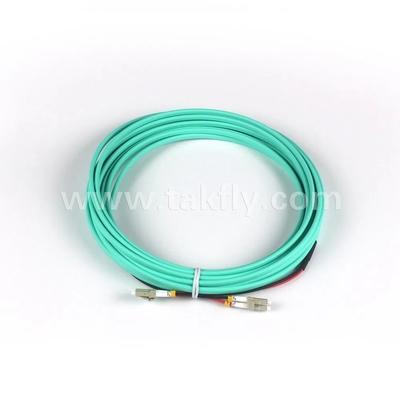

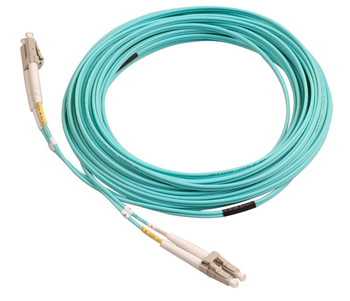

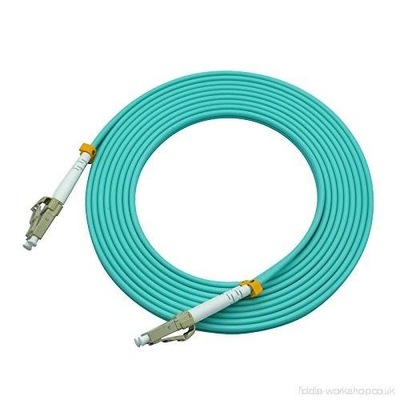

Product Images
Any questions about this multimode fiber patch cord? Please leave an inquiry or contact us directly.
