12 Core OM3 Fiber Optic Pigtail LSZH Jacket 0.9mm SC FC ST LC
Product Summary
High Quality LSZH Jacket 12 Cores LC SC FC ST Bundle Fan-out OM3 Fiber Optic Pigtail Product Description Optical Fiber Pigtail provides quick and easy field termination of fibers. Available in 900 micron options, allowing installers to terminate and make connections in minutes at equipment and fiber ...
Product Custom Attributes
Connection Structure:
SC
Material Shape:
Round Wire
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Core:
Multicore
Sheath Material:
PVC
Connector Type:
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect
Cable Outer Diameter:
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Cable Jacket Material:
PVC,LSZH,Ofnp,PE,PU
Fiber Type:
OS1,OS2,Om1,Om2,Om3,Om4
Fiber Cores:
Sx,Dx,4~144 Multi-Fibers Cores
Return Loss:
PC>30dB; APC> 50dB
Insertion Loss:
< 0.3 DB
Operating Temperature:
-45 To +85 Degree
Ferrule Hole Sizes:
125.0+1/-0um, Concertricity: ≤1.0um | 125.0+1/-0um, Concertricity: ≤0.5um | 125.0um, Concertricity: ≤3.0um
Highlight:
12 core OM3 fiber optic pigtail
,LSZH jacket fiber optic cable
,SC FC ST LC fiber pigtail
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
10
Price:
0.69
Product Description

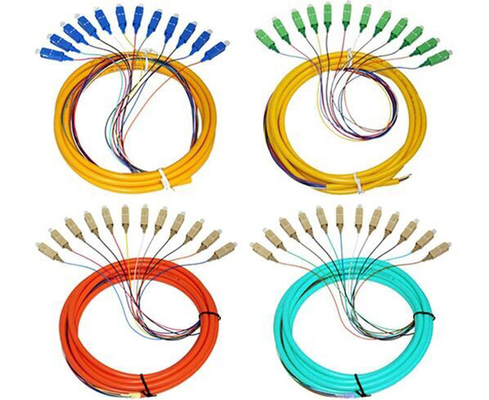

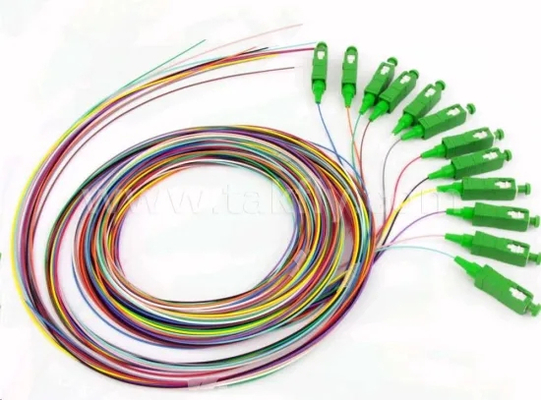

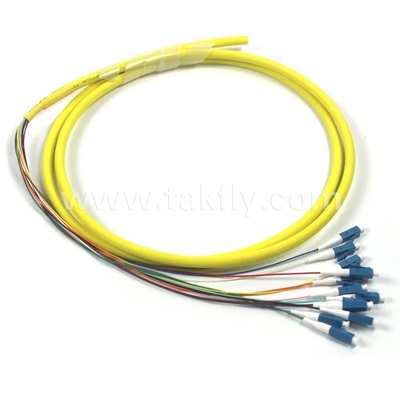

High Quality LSZH Jacket 12 Cores LC SC FC ST Bundle Fan-out OM3 Fiber Optic Pigtail
Product Description

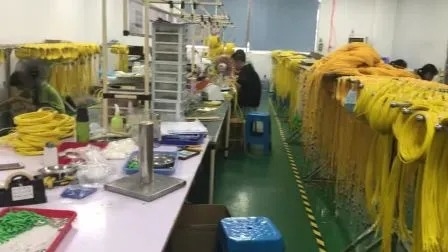

Optical Fiber Pigtail provides quick and easy field termination of fibers. Available in 900 micron options, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality. We offer high quality products at competitive prices through direct sourcing.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Product Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |
