SC to FC Single Mode 9/125 Fiber Patch Cord 3m 5m 10m Custom Length
Product Summary
Hotselling SC/UPC to FC/APC Single Mode 9/125 Simplex Optical Fiber Patch Cord A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features SC to FC/APC connectors with single mode 9/125μm fiber for optimal signal transmission. Product Details SC-SC fiber ...
Product Custom Attributes
Connection Structure:
FC-SC
Material Shape:
Round Wire
Allowed Lateral Pressure:
>1000(N/100mm)
Allowed Tensile Strength:
>10000N
Core:
Single Core
Sheath Material:
PVC Or LSZH
Connector Type:
Sc, FC, St, LC,Odc,Iplc,Pdlc, MTRJ, MPO,MTP,Mu,SMA
Length:
3m,5m,10 Or Customized
Material:
LSZH,PVC,PE,PU
Fiber:
G652D,G655,G657A1,G657A2
Fiber Type:
SM, MM
Normal Fiber OD:
125±0.2um
Insertion Loss:
0.2dB (Typical), 0.3dB (Max)
Return Loss:
PC:50dB, UPC:55dB, APC:65dB
Operation Temperature:
-40°C~+85°C
Highlight:
SC to FC single mode fiber patch cord
,9/125 fiber optic cable with warranty
,custom length SC FC patch cable
Basic Properties
Certification:
RoHS, CE, ISO9001, VDE, CCC
Trading Properties
Minimum Order Quantity:
10
Price:
0.56
Product Description

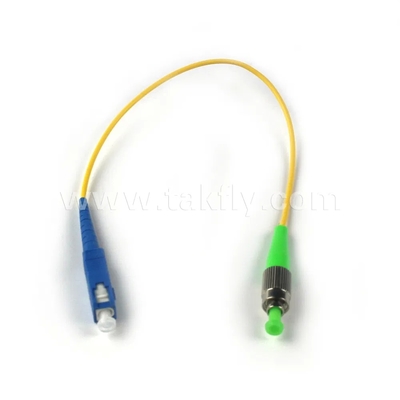

Hotselling SC/UPC to FC/APC Single Mode 9/125 Simplex Optical Fiber Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features SC to FC/APC connectors with single mode 9/125μm fiber for optimal signal transmission.
Product Details
- SC-SC fiber patch cord configuration
- Subscriber Connector (SC) - general purpose push/pull style connector with square, snap-in design
- Keyed connector latches with simple push-pull motion
Key Features
- Low insertion loss and high return loss
- High density connection with easy operation
- Excellent reliability and stability
- Superior repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Performance Specifications
| Parameter | Single Mode | Multimode |
|---|---|---|
| Normal Fiber OD | 125±0.2μm | 125±0.2μm |
| Connector Types | SC, FC, ST, E-2000, LC, MU | MTRJ, SC, FC, ST, E-2000, LC, MU |
| Insertion Loss (Typical) | 0.2dB | 0.4dB |
| Insertion Loss (Max) | 0.3dB | 0.5dB |
| Return Loss (Typical) | PC: 50dB UPC: 55dB APC: 65dB |
35dB |
| Mating Durability (500 cycles) | 0.2dB | |
| Temperature Stability | 0.3dB | |
| Operation Temperature | -40°C to +85°C | |
| Storage Temperature | -40°C to +85°C | |
