Transparent FTTH Fiber Optic Drop Cable 2.2x3.0mm G657A2 Flat Indoor
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | DF/TAKFLY/OEM |
| Certification: | CPR Eca ,ISO9001, ISO14001, CE, ROHS, REACH |
| Model Number: | GJXFH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2KM |
|---|---|
| Price: | USD35~45 |

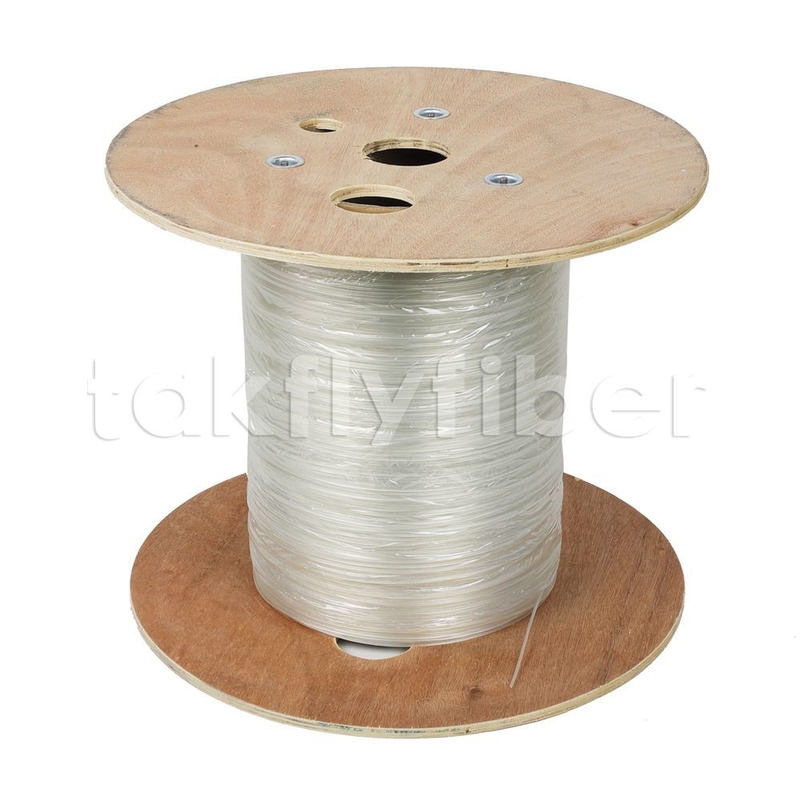

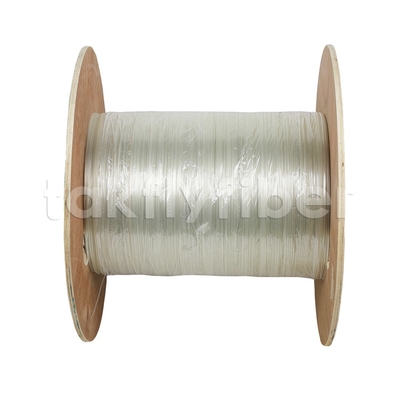

| Packaging Details: | 2KM per drum |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000KM per month |
|
Detail Information |
|||
| Cable Diameter: | 2.2x3.0mm | Fiber Count: | 1 Core , 2 Cores |
|---|---|---|---|
| Fiber Type: | SM G657A1 , G657A2 , G657B3 , G652D | Cable Jacket: | PVC |
| Jacket Color: | Transparent , White , Black , Grey Or Customized | Length Per Reel: | 1KM Or 2KM Or Customized |
| Central Strength Member: | FRP , KFRP , Steel Wire | Short Term Tensile Strength: | 80N |
| Highlight: | transparent FTTH fiber optic cable,G657A2 flat indoor cable,2.2x3.0mm fiber drop cable |
||
Product Description
Transparent FTTH Fiber Optic Drop Cable 2.0X3.0mm Sm G657A2 Flat Type Indoor Cable
Product Specifications
| Cable Diameter | 2.2x3.0mm |
| Fiber count | 1 Core, 2 Cores |
| Fiber Type | SM G657A1, G657A2, G657B3, G652D |
| Cable Jacket | PVC |
| Jacket Color | Transparent, White, Black, Grey or Customized |
| Length per reel | 1KM or 2KM or customized |
| Central strength member | FRP, KFRP, steel wire |
| Short Term Tensile Strength | 80N |
Product Description

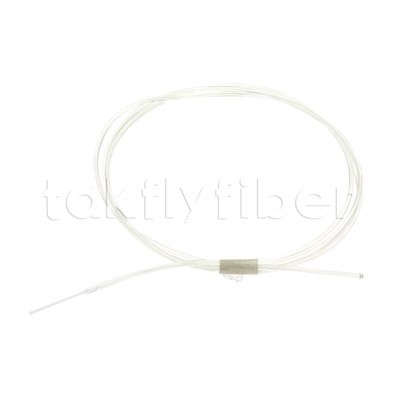

Flat Self-adhesive Transparent FTTH Drop Cable GJXFH
As digital applications penetrate deeply, the network needs of modern families and offices have advanced from "basic connectivity" to "high-speed coverage throughout the house".
Takfly's Flat Self-adhesive FTTH Drop Cable is directly connected to the homes, the bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. Two parallel strength members are placed at the two sides, then the cable is completed with transparent PVC sheath, and finally add a layer of self-adhesive double-sided tape to one side of the outer sheath.
Key Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Simple structure, light weight and high practicability
- Good mechanical properties, high electrical insulation, strong flexibility, sturdiness, and good flame retardancy
- Simple construction, beautiful and reliable
Applications
- Adopted to indoor distribution
- Suitable for aerial, wall or vertical surface application
- As FTTH cable, for indoor horizontal and vertical cabling
Optical Parameters and Properties
| Optical fiber type | Test wavelength | Attenuation | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | ... | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | ... | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | ... | ... | 7.5 |
| G657B3 | 1310/1550nm | 0.36/0.22 | ... | ... | 5 |
Product Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 x 0.5mm | |
| Outer Sheath Cable | material | PVC |
| Thickness | 0.4mm | |
| Diameter | 2.0x3.0mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (ºC) |
|---|---|---|---|---|---|---|
| GJXFH-1~2 | 2.2x3.0±0.2mm | 9.5 | 40/80 | 500/1000 | 20D/10D | -20~+70 |
About Takfly
- Established in 2000, Takfly is a leading manufacturer of fiber optic cable
- Certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel
- Main customers include Fibertronics, Nexans, Corning, R&M, Amphenol, SENKO, Telefonica, Orange, Movistar, Vodafone, Singtel
- Availability of R & D with more than 26 engineers
- High quality, attractive price and fast delivery (2-7 days)
- 10 fiber optic indoor and outdoor cable production lines
