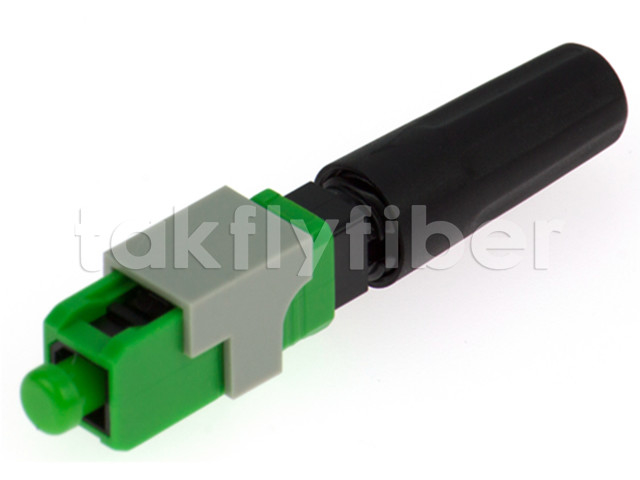

Waterproof Single-Mode Fast Connect Fiber Connectors For Drop Cable / Indoor Cable
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-5501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Model No: | Fiber Optic Fast Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | 62.5/125µm OM1, 50/125µm OM2 |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Repeatability: | ≤0.2dB |
| Fiber Diameter: | 125μm | Assembly Type: | Mechanical |
| Connector Module: | 3.0mm | Connector Cable Od: | 0.9mm ,2.0mm, 3.0mm |
| Durability: | ≥1000 Times | Production Capacity: | 700000pieces/Month |
| Polishing Type: | UPC, APC | Filler: | Optical Silicone Grease |
| Endurance: | 500 Cycles | Operating Temperature: | -40°C To +85°C |
| Connector Return Loss: | SMF: UPC≥50, APC≥60 ;MMF: ≥30 | Salt Spray: | 500h |
| Installation Time: | Within 60s ( No Fiber Cut ) | ||
| Highlight: | Indoor Cable Fiber Connectors,Waterproof Fast Connect Fiber Connectors,Drop Cable Fiber Connectors |
||
Product Description
Product Structure
Measured the Structure
Product length
50mm ≤L≤53mm(≈50mm)
Optical Characteristics
|
Category |
Specification |
Remarks |
|
|
Aoolicable for |
Drop cable.Indoor cable |
|
|
|
Fiber mode |
Single mode or Multi mode |
|
|
|
Fiber type |
G.652D, G.657A1 |
|
|
|
Fiber cable |
3.0*2.0mm rubber-insulated optical cable ∅ 3.0/∅ 2.0 /∅ 0.9 insulated optical cable |
|
|
|
Fiber diameter |
0.125mm |
|
|
|
Force holds 2 x 3mm cable type at the beginning of the fast connector |
≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes) |
|
|
|
Working wavelength |
1310 nm, 1490 nm, 1550 nm |
|
|
|
Operation time |
S |
About 50(no fiber cut) |
|
|
Insertion Loss |
dB |
≤0.35 |
|
|
Insertion Loss Typical value |
dB |
0.3 |
|
|
Return Loss |
dB |
UPC≥45,APC≥55 |
|
|
Tensile strength |
N |
≥40 |
|
|
Reusable |
Time |
≥10 times |
|
|
Operating Temperature |
℃ |
-40～+85 |
|
|
On-line tensile strength(20N) |
dB |
ΔIL≤0.3 |
|
|
Mechanical durability(500 times) |
dB |
ΔIL≤0.3 |
|
|
Drop-off test(drop-off height4m,once per direction,totally 3 times) |
dB |
ΔIL≤0.3 |
|
Environmental performance requirements
|
Category |
Specification |
|||
|
Condition |
IL Variation |
RL Variation |
Appearance |
|
|
High TEMP |
110℃,200H |
≤0.5 |
≤5 |
No mechanic al damage, like defo rmation, cr acking and untight |
|
Low TEMP |
-40℃,200H |
≤0.5 |
≤5 |
|
|
TEMP Cycling |
-40～85℃,3.5H/Cle, 100C |
≤0.5 |
≤5 |
|
|
HAST |
110℃,90%RH,200H |
≤0.5 |
≤5 |
|
|
Immersion |
25℃,200H |
≤0.5 |
≤5 |
|
|
Salt Mist |
5% Nacl,6.5＜PH＜ 7.5,35℃,200H |
≤0.5 |
≤5 |
|
Mechanical Performance Requirements
|
Category |
Specification |
|||
|
Condition |
IL Variation |
RL Variation |
Appearance |
|
|
Impact |
Height: 4m； 1 drop each axis； 3 cycles |
≤0.5 |
≤5 |
No mechan ical dama ge, like deformat ion, crac king and untight |
|
Vibration |
Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial |
≤0.5 |
≤5 |
|
|
Torsional |
Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200 |
≤0.5 |
≤5 |
|
|
Tensile |
Pull:50N； The distance between Loadi ng location and fast conn ector: L = 22-28cm； Duration:1min. |
≤0.5 |
≤5 |
|
Product Packaging Information
Blister Box Packing
|
|
Size(CM) |
14.6*7.6*1.6 |
|
QTY(PCS/Box) |
10 |
|
|
N.W(KG/PCS) |
0.0031 |
|
|
N.W(KG/Box) |
0.0465 |
|
|
G.W(KG/Box) |
0.031 |
Gift Box Packing(Inner packing)
|
|
Size(CM) |
15.8*14.5*9.5 |
|
QTY(Blister Box/Girt Box) |
10 |
|
|
N.W(KG/Box) |
0.55 |
|
|
G.W(KG/Box) |
0.52 |
Outer Packing
|
|
Size(CM) |
46*46*32.5 |
|
QTY(Gift Box/Box) |
30 |
|
|
QTY(Pcs/Box) |
3000 |
|
|
N.W(KG/Box) |
16.5 |
|
|
G.W(KG/Box) |
15.3 |
