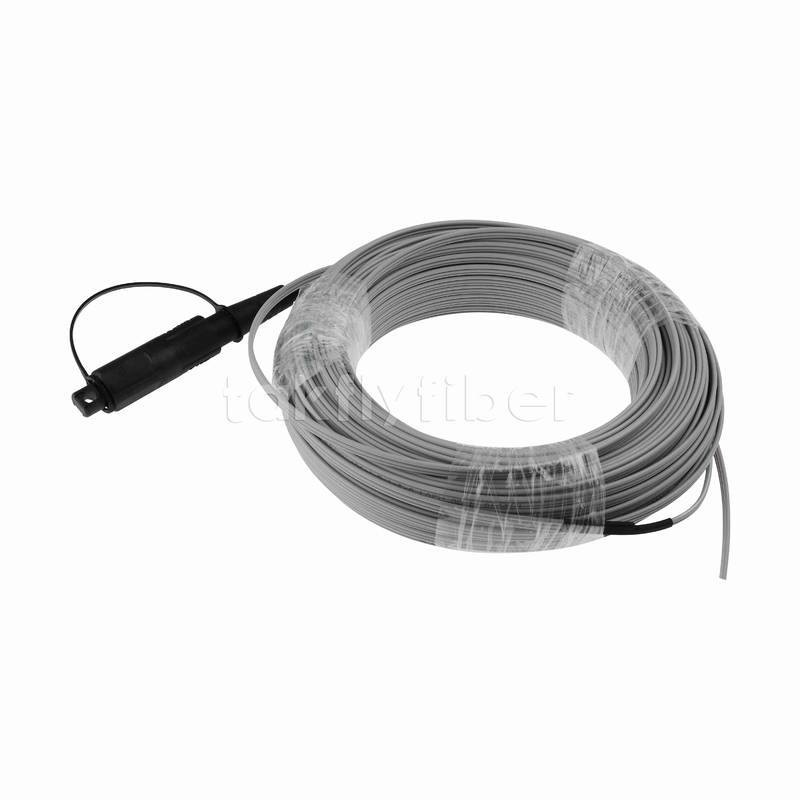

1 Core Preterminated Optitap SC/APC Figure 8 FTTH Fiber Optic Drop Cable Pigtail 40M G657A LSZH 0.25μd Low Friction Jacket With 1.0mm Galvanized Messenger Steel Wire
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PT-1F-OT-SA-A1-40M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$0.01~9.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | ≥60dB (APC) | Fiber Type: | G657A1/G657A2 |
| Cable Diameter: | 5.1*2.0mm | Connector Type: | SC/APC |
| Jacket Material: | LSZH | Color: | Grey Or Customized |
| Wavelength: | 1310nm, 1550nm | Length: | 40M , 80M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 9/125 |
| Fiber Brand: | YOFC, OFS, Corning,Draka | ||
| Highlight: | 40M Preterminated Optitap SC/APC Pigtail,0.25μd Preterminated Optitap SC/APC Pigtail,Figure 8 Fiber Optic Drop Cable |
||
Product Description
1 Core Preterminated Optitap SC/APC Figure 8 FTTH Fiber Optic Drop Cable Pigtail 40M G657A LSZH 0.25μd Low Friction Jacket with 1.0mm Galvanized messenger steel wire
Optical IP67 Pre-connectorized Drop Cable With Optitap Connector SC/APC Outdoor Cable Assembly is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. Mini SC APC Patchcord is made of special plastic shell IP68.We also accept OEM Services. Insertion loss SM /APC≤0.3dB, Return loss SM/APC≥60dB.Cable outer jacket LSZH low friction UV resistant Materials. Outer jacket color can be grey, white and black.
Fiber Optic Pigtail Specifications
- FTTH Cable information
- Number of fiber:1 core
- Fiber type:G657A1
- Strength member material: Steel wire;
- Diameter:0.5mm*2

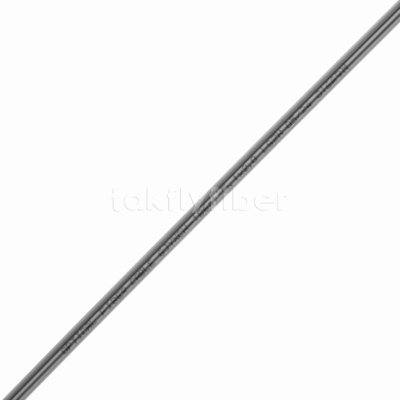

Self support Messenger wire:
- Material:steel wire
- Diameter:1.2mm
Outer sheath:
- Material:LSZH Black
- Cable size:5.1*2.0mm
Connector Test specifications
| Item | specifications |
| Type | SC/APC(1310) |
| Insertion Loss |
≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/ km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 90N |
Optical fiber performance
| Tensile strength | Long term(N) | 300 |
| Short term(N) | 600 | |
| Crush load | Long term(N) | 1100 |
| Short term(N) | 2200 | |
| wavelength(nm) | 1310/1550 | |
| Attenuation(dB) | 0.4/0.3 | |
| Cladding diameter(um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter(um) | 242±7 | |
Takfly is a leading manufacturer of Fiber optic product since 2000, with ISO9001 and ISO14001 Certified. All of our products have been passed the CE, ROHS, Reach Test, and our main customer are: Telefonica, Orane, Movistar, DIGI Telecom, Fibertronics, Netceed, and Nvidia, ect.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
