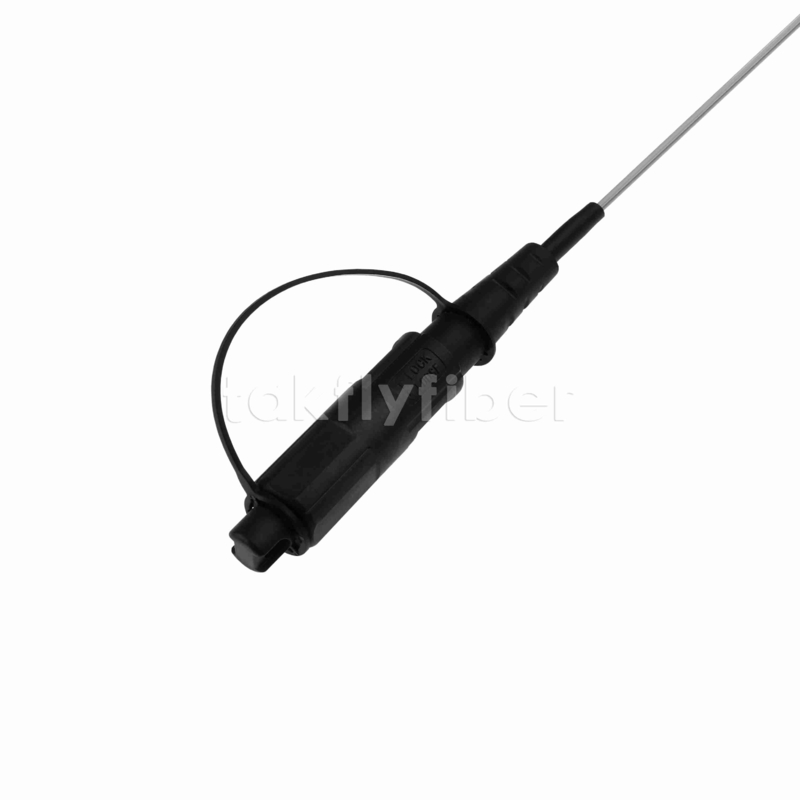

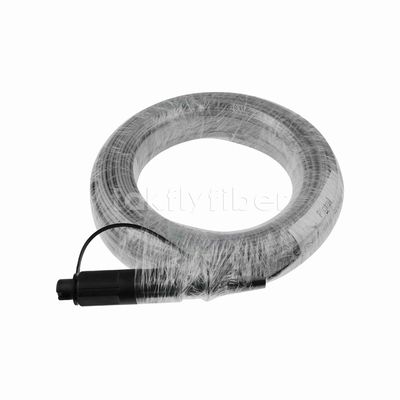

Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PT-1F-OT-SA-A1-40M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$0.01~9.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | ≥60dB (APC) | Fiber Type: | G657A1/G657A2 |
| Cable Diameter: | 5.1*2.0mm | Connector Type: | SC/APC |
| Jacket Material: | LSZH | Color: | Grey Or Customized |
| Wavelength: | 1310nm, 1550nm | Length: | 40M , 80M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 9/125 |
| Fiber Brand: | YOFC, OFS, Corning,Draka | ||
| Highlight: | FTTH Fiber Optic Pigtail,Low Friction Jacket Fiber Optic Pigtail,Self-Support Fiber Optic Pigtail |
||
Product Description
Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket
A FastConnect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.
- Fiber Optic Attributes
- 1. Mode field diameter:8.6um±0.4um at 1310nm
- Cladding diameter:125.0um±0.7um
- Coating diameter:245um±10um
- Coating-cladding concentricity error:≤12.5um
- Cut-off wavelength:≤1260nm
- Attenuation coefficient:1310≤0.4dB 1550≤0.3dB
Fiber Optic Pigtail Specifications
- FTTH Cable information
- Number of fiber:1 core
- Fiber type:G657A1
- Strength member material: Steel wire;
- Diameter:0.5mm*2
Self support Messenger wire:
- Material:steel wire
- Diameter:1.2mm
Outer sheath:
- Material:LSZH Black
- Cable size:5.1*2.0mm
Connector Test specifications
| Item | specifications |
| Type | SC/APC(1310) |
| Insertion Loss |
≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/ km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 90N |
Optical fiber performance
| Tensile strength | Long term(N) | 300 |
| Short term(N) | 600 | |
| Crush load | Long term(N) | 1100 |
| Short term(N) | 2200 | |
| wavelength(nm) | 1310/1550 | |
| Attenuation(dB) | 0.4/0.3 | |
| Cladding diameter(um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter(um) | 242±7 | |
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 24 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
