SC UPC 0.9mm 12 Color Fiber Optic Pigtail Simplex SM G652D 2M
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | DF/OEM |
| Certification: | CE/ROHS/REACH/ISO9001ISO14001 |
| Model Number: | TK-PT-LC/UPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100Sets |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 2000Sets/Day |
|
Detail Information |
|||
| Product Name: | SC UPC 12 Color Fiber Optic Pigtail | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | UPC SM≥50dB | Fiber Type: | SM G652D |
| Diameter: | 0.9mm | Connector Type: | SC/UPC |
| Jacket Material: | LSZH | Color: | 12 Color |
| Length: | 2M Or Customized | Operation Temperature: | -20℃~70℃ |
| Storage Temperature: | -40℃~80℃ | ||
| Highlight: | 12 Color Fiber Optic Pigtail,SC UPC Fiber Optic Pigtail,0.9mm Fiber Optic Pigtail |
||
Product Description
Takfly's Fiber optic pigtails could come with LC/SC/FC/ST/E2000/MU according to customer's detailed requirement.
Takfly's Production capacity for SC/UPC 12 Color Fiber Optic Pigtails could reach 2000Sets/Day.
SC/UPC 12 Color Fiber Optic Pigtails usually installed in Fiber Optic Patch Panel, Outdoor Cabinet, Fiber Optic Termination Box, Splice Closure, and Splice Tray, ect.
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Fiber Optic Pigtail Specifications
| End face type | SC/UPC |
| Fiber type | SM G652D |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | 2M |

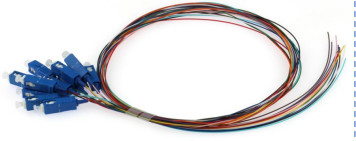

Fiber Optic Pigtail Picture
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 23 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 5 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
If you’re interested in our products or have any doubt, why not send me inquiry at once?
