120m-2-24 Core ADSS Cable All Dielectric Self Supporting Cable for Network Applications
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DX-Armored-T1771 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Insertion Loss: | ≤0.1dB | Core Quantity: | 12 Cores |
|---|---|---|---|
| Tensile Strength: | 100-200N | Bend Radius: | 10-30mm |
| Strength Member: | Steel Wire | Fiber Number: | 1 Core |
| Core: | Multicore | Fiber Core: | 4-96 Cores |
| Central Strength Member: | FRP | Transport Package: | ADSS Cable/Wooden Drum |
| Network: | None | Length: | Customizable |
| Fiber Option: | Single Mode Or Multimode | Part Number: | FC/APC~FC/APC |
| Fiber Count: | Single Mode/Multimode | ||
| Highlight: | 24 core ADSS cable,120m ADSS cable,ADSS All Dielectric Self Supporting Cable |
||
Product Description

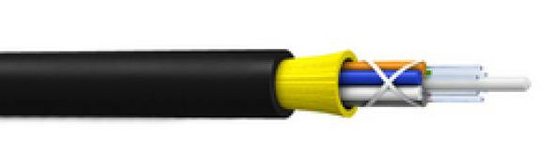

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber
Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
- Can be installed without shutting off the power;
-
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
-
Large span lengths and the largest span is over 1000m;
-
Good performance of tensile strength and temperature.
Optical parameters and properties:
| Optical fiber type | G.652D | G.655 | 50/ 125um | 62.5/ 125um | |
|
Attenuation |
@850nm | ... | ... | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | ... | ... | ≤1.5 dB/km | ≤1.5 dB/km | |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ... | ... | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | ... | ... | |
| Bandwidth | @850nm | ... | ... | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | ... | ... | ≥1000 MHz·km | ≥600 MHz·km | |
| Numerical Aperture | ... | ... | 0.200±0.015NA | 0.275±0.015NA | |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | ... | ... | |

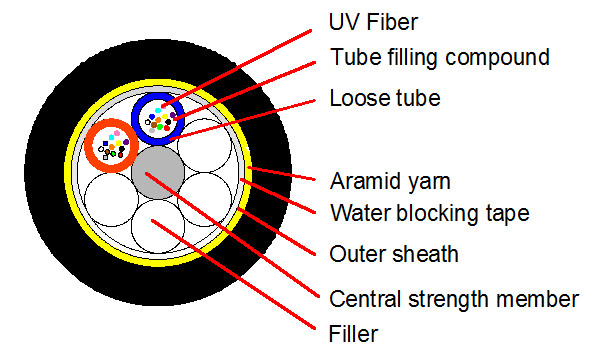

Product structure:
| Fiber count | 2-24 | |||||
| Optical fiber | Diameter(±1µm) | 125µm | ||||
|
Coating diameter(±5µm) |
250µm | |||||
| Loose tube | Diameter | 2.0mm | ||||
| Material | PBT | |||||
| Supplementar | Filler | |||||
| Strength member | Center reinforcement | FRP | ||||
| Supplementar | Aramid yarn | |||||
| Protective material | Water blocking tape | |||||
| Outer sheath | Sheath material | PE/AT | ||||
| Thickness(mm) | 1.8mm | |||||
| Color | Black | |||||
|
Cable |
Span(M) | 120 | ||||
| Wind speed(M/s) | 30 | |||||
| Fiber count | Outside diameter | Cable weight (kg/km) |
MAT/RTS(KN) |
Min bend radius(D) | Running temperature | |
| Dynamic/static | ||||||
| 2-24 | 10.7 | 115 | 2.0/5.5 | 20/ 10 | -20 ℃ ~+70 ℃ | |
Other requirements:
Length of production optical cable: 2000M
Optical cable outer sheath printing specifications, such as:OPTICAL FIBER CABLEADSS 24C 10.7 SM G652D MM/YY 00000M
