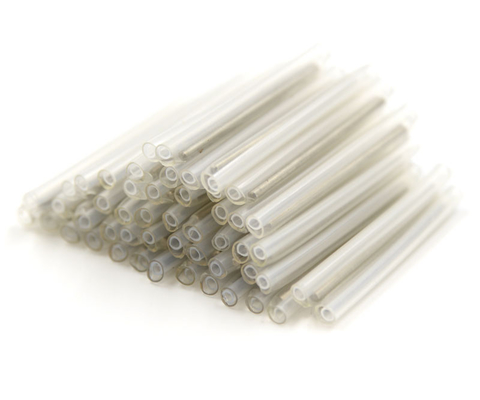

Standard Heat Shrinkable Tubing Fiber Insertion Mechanical Alignment Guide for ODF
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | TK-FC-SCA-E002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Model No: | Fiber Waterproof HW Connector | Atorage Temperatuture: | -40°C~85℃ |
|---|---|---|---|
| Wiring Devices: | ODF | Color: | Blue, Green, Beige, Black |
| Free Sample: | Yes | Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm |
| Housing Color: | Blue, Green, Beige | Transmission Medium: | Single-Mode |
| Feature: | Waterproof | Material: | Plastic |
| Interchangeability: | ≤0.2dB | Fiber Mode: | Single Mode |
| Port: | Fiber Hub Box From NINGBO Port | Model Name: | Fiber Optics Connector |
| Weight: | 2kg | Insert Loss: | 0.2dB |
| Network: | None | Waterproof: | IP68 |
| Mqo: | 1 Piece | Tensile Strength: | ≥100N |
| Flange Size: | 0.9 / 2.0 / 3.0 Mm | Fiber Insertion: | Mechanical Alignment Guide, Built-in6. |
| Cable Od: | 0.9/2.0/3.0mm | Fiber Cable Type: | 0.9mm,2.0mm,3.0mm, 2.0*3.0mm |
| Fiber Diameter: | 125um, 250um, 900um, 2mm, 3mm | Length And Tolerance: | 10cm |
| Model: | FC-12 | Warranty Time: | 20 Years |
| Highlight: | Fiber Insertion Heat Shrinkable Tubing,ODF Heat Shrinkable Tubing,Mechanical Alignment Guide Heat Shrinkable Tubing |
||
Product Description
Applications

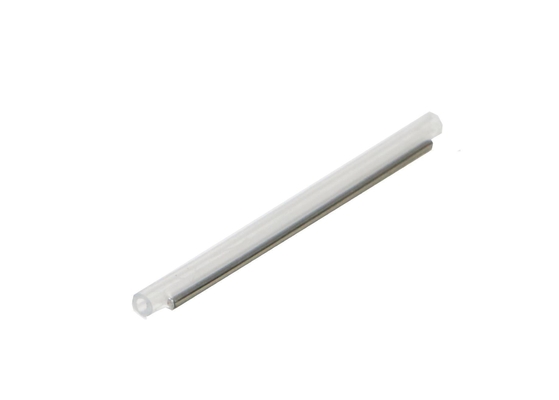

Consist of a rod of reinforcing the splice, hot fusion tubing and cross-linked polyolefin. To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties.
Characteristics
Moisture resistant for environmental protection
Clear sleeve make it easy to detect splice before shrinkage
Easily use and avoid any damages to the optical fiber during installation Color optical fiber splice protector is very convenience for installation
Operating temperature: -45℃~ 100℃ / -45℃~ 135℃ Minimum shrink temperature :80℃
Minimum fully recovery temperature:120℃
Technical indicators
| Performance | Test Method | Typical data |
| Tensile strength | ASTM D 2671 | 18MPa |
| Elongation at break | ASTM D 2671 | 700% |
| Density | ISOR 1183D | 0.94g/cm3 |
| Dielectric strength | IEC243 | 25KV/mm |
| Volume resistance | IEC243 | 1015Ω .cm |
| Length changes | ASTM D 2671 | ±5% |
Product Dimensions
|
Part NO. |
OD after Recovery (mm) |
Length (mm) | Fusion tube (D) | Steel rod(d) | Package (pcs/bag) | ||
|
ID (mm) |
Length(mm) | OD (mm) | Length (mm) | ||||
| TK-60L | 3.0±0.1 | 60 | 1.5 | 60 | 1.5 | 55 | 100 |
| TK-60 | 2.8±0.1 | 60 | 1.3 | 60 | 1.5 | 55 | 100 |
| TK-45L | 3.0±0.1 | 45 | 1.5 | 45 | 1.5 | 40 | 100 |
| TK-40L | 3.0±0.1 | 40 | 1.5 | 40 | 1.5 | 35 | 100 |
| TK-23L | 3.0±0.1 | 23 | 1.5 | 23 | 1.5 | 18 | 100 |
| TK-60M | 2.6±0.1 | 60 | 1.3 | 60 | 1.2 | 55 | 100 |
| TK-45M | 2.6±0.1 | 45 | 1.3 | 45 | 1.2 | 40 | 100 |
| TK-40M | 2.6±0.1 | 40 | 1.3 | 40 | 1.2 | 35 | 100 |
| TK-30M | 2.6±0.1 | 30 | 1.3 | 30 | 1.2 | 25 | 100 |
| TK-25M | 2.6±0.1 | 25 | 1.3 | 23 | 1.2 | 20 | 100 |
Item No composed of OD after Recovery + Steel rod OD + Fusion tube ID + Casing length Color :red , blue , yellow , clear , green , purple
