Fiber Optic MPO Cassette Module MPO/MTP-LC 12C/24C for Data Center FTTX
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | TK-HRM-02/03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD7.5-18/pc |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Customizable: | Yes | Color: | Black |
|---|---|---|---|
| Connector: | MPO/MTP-LC | ||
| Highlight: | Fiber Optic MPO Cassette Module,Data Center MPO Cassette Module,MPO/MTP-LC MPO Cassette Module |
||
Product Description
MPO/MTP-LC 12C/24C MPO Cassette Module
Description:

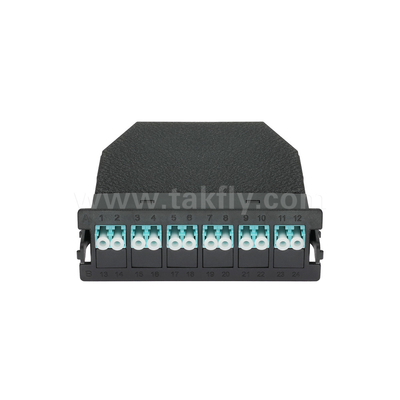

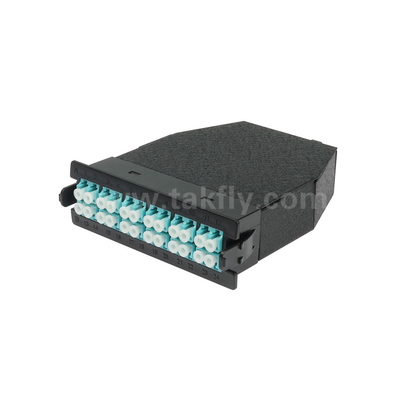

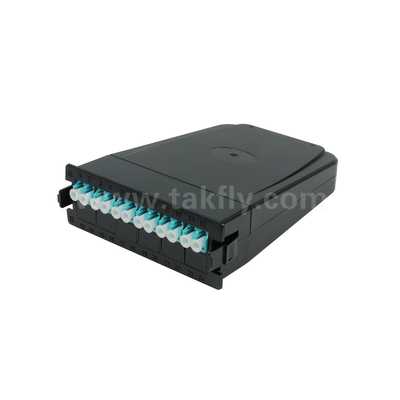

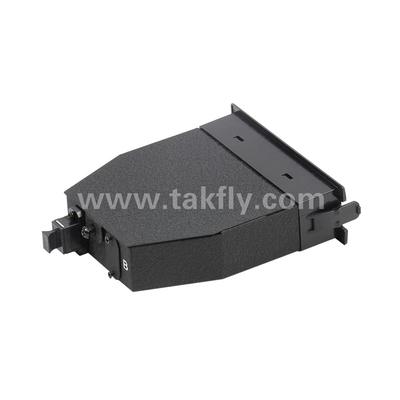

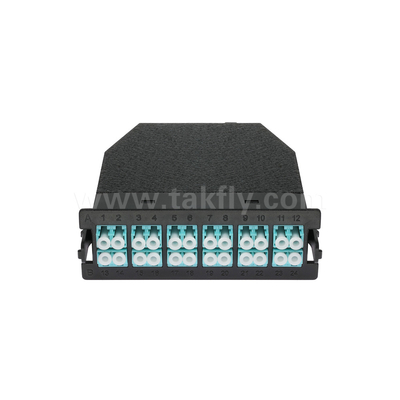

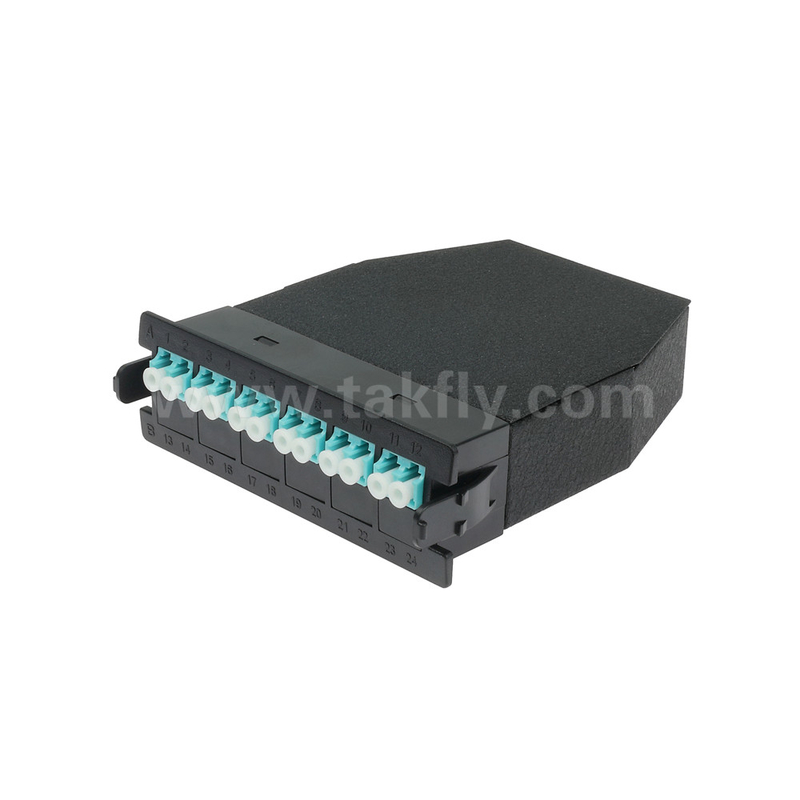

The MPO/MTP-LC pre-terminated cassette module, is mainly to branch the 12/24 cores MPO connector of the trunk optical cable terminal into duplex connector. The specific feature is that the front panel of the 12/24 core cassette module is installed with LC duplex adapters, and the rear panel is installed with two MPO/MTP adapters. There is a patch cord in the cassette module, which directly connects the LC duplex adapter on the front panel and the MPO/MTP adapter on the rear panel. Every separated MPO/MTP-LC pre-terminated cassette module form a completed patch panel.
Application:
Meet the wiring of various scenarios.
The cassette module can be installed in the modular patch panel for flexible management, and is widely used in the data center machine room and other scenarios.

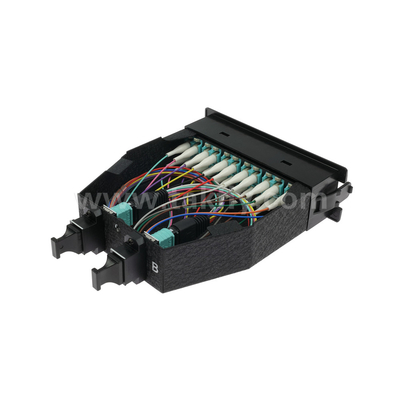

Internal structure design of cassette module:
The adapter and the equipment are installed in a snap-fit manner to ensure the patch cord with bending radius has storage space of more than 2cm, and thus more stable low-loss data.
Parameter:
