9.4mm Armored Optical Cable The Ultimate Solution for Portable Data Transmission
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | Bundle Armored-T715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Construction: | All-dielectric | Fiber Color: | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
|---|---|---|---|
| Cores: | 4/6/12 | Fiber Count: | 12 |
| Part Number: | SC/APC~SC/APC | Tensile Strength: | 1000N |
| Loss Per Kilometer: | 0.23 | Way: | Portable |
| Packing: | Wooden Reel | Armored Or Not: | Corrugated Steel Tape Armoured |
| Cable Od: | 9.4mm | Crossing: | 1 To 4 X SC APC Simplex With Shutter |
| Length Per Roll: | 2km To 4km | Marking On Jacket: | Marking On Jacket |
| Out Sheath: | PE, PVC, LSZH | ||
| High Light: | Portable Data Transmission Armored Optical Cable,9.4mm Armored Optical Cable |
||
Product Description
Product description:
Product application:
- Optical fiber active connection jumper or tail fiber;
- Optical connections in optical communication equipment rooms and optical distribution frames;
- Interconnection of instruments and communication equipment.
Product characteristics:
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meets the requirements of relevant standards;
- The mechanical characteristics meet the requirements of relevant standards;
- Soft, flexible, easy to splice, and with big capacity data transmission;
- Anti rodent and UV stable.
Optical parameters and properties:
|
Optical fiber type |
Test wavelength |
Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) | |
| Typical (dB/km) | Maximum (dB/km) | |||||
| G652D |
1310/1550nm |
0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | ... | ... | 10 | |
| G657A2 | 0.36/0.22 | 0.5/0.4 | ... | ... | 7.5 | |
| 62.5/125 |
850/1300nm |
3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| 50/125 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ... | 30 | |
| OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000/... | 7.5 | |
| OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700/... | 7.5 | |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... | 7.5 |

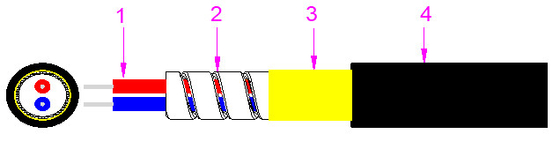

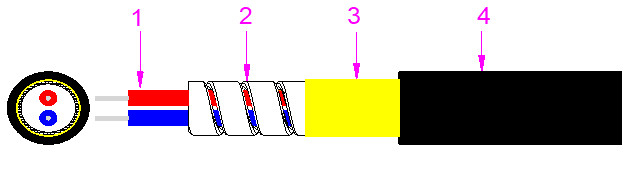

Product structure:
| Fiber count | 2 | 4-12 | ||||||
|
Optical fiber |
Diameter(±1µm) | 125µm | ||||||
|
Coating diameter(±5µm) |
250µm | |||||||
|
Tight buffer |
Diameter(±50µm) | 600µm | 900µm | |||||
| Sheath material | PVC/LSZH | |||||||
| Color | 1. White 2. Blue or other colors available upon request | |||||||
| Strength member | Metal tube material | Stainless steel | ||||||
| Core reinforce | Aramid yarn | |||||||
|
Outer sheath |
Sheath material | PVC/LSZH/PU | ||||||
| Color | Blue for single mode cable, Grey for multi mode cable; Or others color available upon request | |||||||
|
Cable |
Fiber count |
Outside diameter (mm) |
Armor diameter (mm) |
Cable weight (kg/km) |
Max tensile force(N) |
Crush resistance (N/ 100mm) |
Min bend radius(D) |
Running temperat ure |
| Long-term/ short-term | Short-term | Dynamic/ static | ||||||
| 2 | 3.0 | 1.8 | 25 | 80/ 150 | 3000 | 20/ 10 |
-20 ℃ ~+70 ℃ |
|
| 4 | 4.8 | 2.8 | 36 | 80/ 150 | 3000 | 20/ 10 | ||
| 6 | 4.8 | 2.8 | 37 | 160/300 | 3000 | 20/ 10 | ||
| 8 | 5 | 3.2 | 41 | 160/300 | 3000 | 20/ 10 | ||
| 12 | 5.5 | 3.8 | 47 | 160/300 | 3000 | 20/ 10 | ||
Other requirements:
- Length of production optical cable:2000M
- Optical cable outer sheath printing specifications, such as: ARMORED OPTICAL FIBER CABLE 12C 5.5 SM G652D-9/ 125um - LSZH - MM/YY 00000M
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.
