PE Cover Flat Duplex Armored Optical Cable with 1200N Installation Tensile
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DX-Armored-T715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
|
Detail Information |
|||
| Keyword: | Out Door Adss Fiber Optic Cable | Port: | Shenzhen Port |
|---|---|---|---|
| Fiber Type: | G.652D, G.657A1, G.657A2, G.657B3 | Use: | Optical Jumper Or Pigtail |
| Attenuation: | ≤0.4dB/km @1310nm, ≤0.3dB/km @1550nm | Data Rate: | 10G |
| Quality Control: | 100% Test Before Shipping | Color: | Customized Color Optional |
| Length Per Drum: | 2KM Or Customized | Connector: | SC FC ST LC MPO MU MTRJ D4 SMA... |
| Number Of Conductors: | 4 | Cover Material: | PE |
| Installation Tensile: | 1200N | Jacket: | HDPE |
| Cable Length: | Customizable | ||
| High Light: | 1200N Installation Tensile Armored Optical Cable,PE Cover Armored Optical Cable,Duplex Armored Optical Cable |
||
Product Description
Product description:

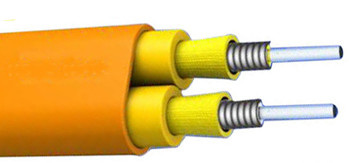

Flat Twin Duplex Indoor armored Cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium.The tight buffer fiber wrapped with a layer of steel wire , and aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath.
Product application:
- Optical fiber active connection jumper or tail fiber;
- Optical connections in optical communication equipment rooms and optical distribution frames;
- Interconnection of instruments and communication equipment.
Product characteristics:
- Two single-fiber as basic unit.flat twin configuration;
- Single-cable with Φ600µm or Φ900µm tight buffer. aramid yarn with steel armored;
- Flexible or out sheath independent strength member;
- Excellent mechanical and environmental performance;
- Meet various requirements of market and clients.
Optical parameters and properties:
| Optical fiber type |
Test wavelength |
Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) |
Minimum bending radius(mm) |
|
| Typical (dB/km) | Maximum (dB/km) | |||||
| G652D |
1310/ 1550nm |
0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | ... | ... | 10 | |
| G657A2 | 0.36/0.22 | 0.5/0.4 | ... | ... | 7.5 | |
| 62.5/ 125 |
850/ 1300nm |
3.0/ 1.0 | 3.5/ 1.5 | ≥200/500 | ... | 30 |
| 50/ 125 | 3.0/ 1.0 | 3.5/ 1.5 | ≥500/500 | ... | 30 | |
| OM3 | 3.0/ 1.0 | 3.5/ 1.5 | ≥1500/500 | ≥2000/... | 7.5 | |
| OM4 | 3.0/ 1.0 | 3.5/ 1.5 | ≥3500/500 | ≥4700/... | 7.5 | |
| OM5 | 850/953nm/ 1300nm | 3.0/.../ 1.0 | 3.5/.../ 1.5 | ≥3500/ 1850/500 | ≥4700/2470/... | 7.5 |

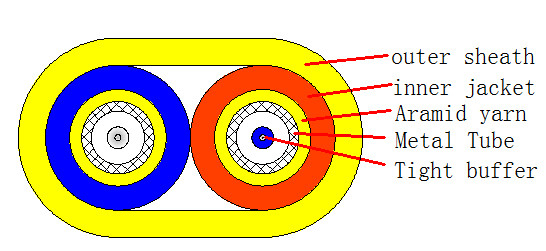

Product structure:
| Fiber count | 2 | |||
| Optical fiber | Diameter(±1µm) | 125µm | ||
| Coating diameter(±5µm) | 250µm | |||
|
Tight buffer |
Diameter(±50µm) | 600µm | 900µm | |
| Sheath materiall | PVC/LSZH | |||
| Color | 1. White 2. Blue or other colors available upon request | |||
| Metal tube | Diameter(mm) | 1.2mm | 1.4mm | |
| Material | Stainless steel | |||
|
Subunit |
Outside diameter(±0.2mm) | 2.0mm | 3.0mm | |
| Sheath material | PVC/LSZH | |||
| Color | Blue for single mode cable, Grey for multi mode cable; Or others color available upon request | |||
| Strength member | Core reinforce | Aramid yarn | ||
| Outer sheath | Sheath material | PVC/LSZH | ||
| Color | Blue for single mode cable, Grey for multi mode cable; Or others color available upon request | |||
|
Cable |
Outside diameter (mm) | 3.0*5.0 | 4.0*7.0 | |
| Cable weight (kg/km) | 35 | 50 | ||
| Max tensile force(N) | Long-term/ short-term | 160/300 | 160/300 | |
|
Crush resistance(N/ 100mm) |
Short-term | 3000 | 3000 | |
| Min bend radius(D) | Dynamic/ static | 20/ 10 | 20/ 10 | |
| Running temperature | -20 ℃ ~+70 ℃ | |||
Other requirements:
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 4.0X7.0 SM G652D-9/ 125um - LSZH - MM/YY 00000M
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.
