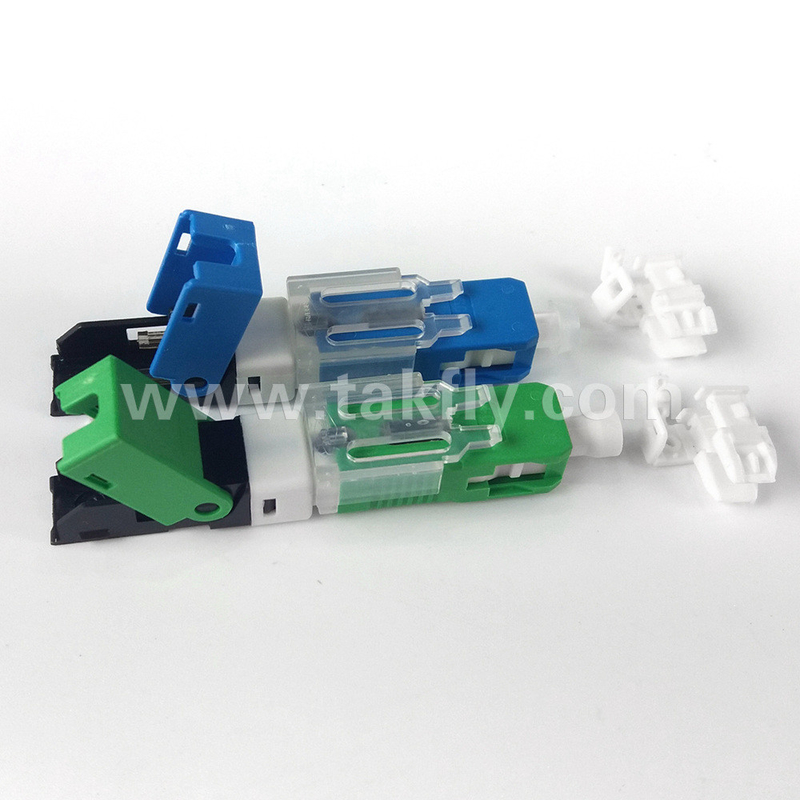

Single Mode Sc Fiber Optic Fast Connector In FTTH
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Model Number: | Fiber Optic Fast Connector |
|
Detail Information |
|||
| Fiber Count: | 1 | Connector Style: | SC, LC, FC |
|---|---|---|---|
| Name: | Fiber Optic Fast Connector | Connector Gender: | Male/Female |
| Durability: | ≥1000 Times | Operating Temperature: | -40℃~+85℃ |
| Return Loss: | ≥50dB | Cable Type: | Single Mode, Multi-mode |
| High Light: | singlemode sc fiber optic fast connector,ftth sc fiber optic fast connector,ftth field installable fiber connector |
||
Product Description
Product Description:
SC Quick Filed Assembly Fiber Optic Connector is also known as Field Assembly Connector, Field terminated fiber connector or Quickly assembly Fiber connector.
This type of connector is incredibly innovative as it eliminates the need of epoxy and polishing for installation. Apart from that, it does not require any adhesive and curing process either.
By using this onsite assembly optical connector, polarization of optical wiring design and the time for fiber termination can be minimized. It is widely used to cater LAN & CCTV needs and FTTH inside buildings and floors.
Features:
Fiber termination has never been easier. Whether it's for a quick on-site assembly or for allowing optical continuity to be verified, the streamlined component design uses proven molded v-groove technologies so that no epoxy or polishing is required.
The precision mechanical alignment ensures that there's a low insertion loss for a superior optical performance. Moreover, pre-installed components makes assembly quick and easy without needing to worry about end face grinding and consideration.
Clearly, this offers a simple and efficient solution that no other fiber termination system can match!
Technical Parameters:
| Category | Specification | Remarks | |
| Aoolicable for | 3.0mm×2.0mm(Drop cable.Indoor cable) | ||
| 2.0mm×1.6mm(Drop cable.Indoor cable) | |||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | About 50(no fiber cut) | ||
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥45 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40～+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
Applications:
Fiber optic communication systems and telecommunication networks are becoming more and more important in our lives. Fiber optics are used in data transmission, CATV, and optical access, making communication easier and more efficient.
Fiber optic data transmission utilizes cable to send information at high speeds with minimal noise and distortion. It is one of the most reliable ways of transmitting data, making it popular for use in the telecommunications industry. Data transmission also requires less energy, making it a cost-effective option for businesses.
CATV, short for cable television, is another form of data transmission that uses coaxial cables to deliver video programming to television sets. It is especially suited for long-distance transmissions, providing a robust and reliable method for delivering signals.
Finally, optical access is a way to connect to the internet by using fiber optic cables. This type of access provides a high-speed connection that is also very secure. It is becoming an increasingly popular method of accessing the web, providing quicker access times and more reliable service.
Customization:
Takfly/OEM Fiber Optic Fast Connector is designed with high-quality materials and advanced technology to ensure great performance. It has an insertion loss of ≤0.3dB, and is suitable for cables with a diameter of 2.0mm, 3.0mm, and 0.9mm. This Fiber Optic Fast Connector is a great choice for Optical Fiber Termination, Fiber Optic Coupler, and other Fiber Optic Connector applications.
Support and Services:
We are committed to providing our customers with the best support and service for our Fiber Optic Connectors. Our professional team of experts are on hand to answer any questions you may have, provide technical advice and help you find the best solution for your needs.
We offer a comprehensive range of services including:
- Installation and configuration support
- Diagnostic and troubleshooting assistance
- Software and firmware updates
- On-site and remote technical support
- Product repair and replacement
If you have any questions or require any assistance, please don't hesitate to contact us at any time.
Packing and Shipping:
Fiber optic connectors must be packaged and shipped properly to ensure their safe arrival at their destination. The following outlines the packaging and shipping requirements for fiber optic connectors:
- Connectors should be placed in a sturdy, protective box, free from dust, dirt and moisture.
- The box should be labeled with the name of the product, the quantity of the product, and the shipping destination.
- The box should be wrapped in bubble wrap to ensure that the connectors are secure and protected during transit.
- The box should be placed inside a larger box for additional protection.
- The box should be sealed securely with packing tape.
- The box should be shipped via a reliable carrier, such as UPS or FedEx.
