4 Hilo SM FTTH Drop Cable GJYXCH-1B6 G657A2 Outdoor Optical Fiber Drop Cable With Messenger
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM/Takfly |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | GJYXCH, GJYXFCH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KM |
|---|---|
| Price: | USD33/km ~ USD100/km |
| Packaging Details: | Wooden drum, Plastic drum |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability: | 100,000km per month |
|
Detail Information |
|||
| Product Name: | 1-12 Core GJYXCH GJYXFCH FTTH Drop Cable | Fiber Amount: | 1 To 12 |
|---|---|---|---|
| Outer Sheath Color: | Black,Grey,White | Outer Sheath Material: | LSZH |
| Certification: | CPR, ANATEL, CE, RoHS, FCC, REACH | ||
| High Light: | 4 Hilo FTTH Drop Cable,Outdoor FTTH Drop Cable,G657A2 Optical Fiber Drop Cable |
||
Product Description
4 Hilo Fibra Optica SM FTTH Drop Cable, GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable With Messenger
Description:

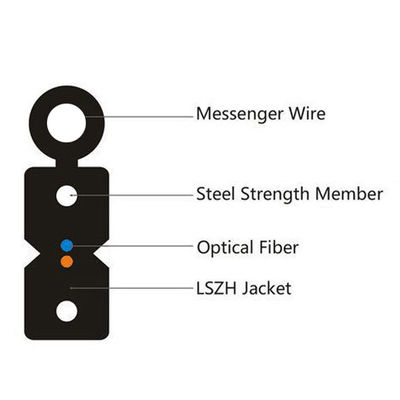

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.
Features:
* FTTH cable, 1, 2, 4 cores
* Soft and flexible, good bending performance
* Excellent tensile and crush performance
* Steel wire used for self-supporting
* Optical fiber cores are positioned in the center, two strength member are placed at the two sides.
* Strength member: FRP or KFRP or steel wire
* Jacket: LSZH or PVC
* Access network, FTTH cable (Fiber to the home)
* Used in indoor cabling, and end users directly cabling;
* Used as access building cable.
Characteristics:.
* Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
* Two parallel Steel wire or frp strength members ensure good performance of crush resistance to protect the fiber.
* Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
* Simple structure, light weight and high practicability.
* Novel flute design, easily strip and splice, simplify the installation and maintenance.
* Low smoke, zero halogen and flame retardant sheath.
Application:
* Adopted to outdoor distribution;
* Suitable for aerial, pipeline laying method;
* As FTTH cable,for outdoor horizontal and vertical cabling.
Optical parameters and properties:
|
Optical fiber type |
Test wavelength | Decay |
Full injection bandwidth (MHZ.km) |
Effective modal bandwidth (MHZ.km) |
Minimum bending radius(mm) |
|
|
Typical (dB/km) |
Maximum (dB/km) |
|||||
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 10 | |||||
| G657A2 | 7.5 | |||||
| OM1 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| OM2 | ≥500/500 | ... | 30 | |||
| OM3 | ≥1500/500 | ≥2000/... | 7.5 | |||
| OM4 | ≥3500/500 | ≥4700/... | 7.5 | |||
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... |
7.5 |
Specification:
| Cable code | FIiber count | Cable size (mm) |
Cable weight (KG/KM) |
Tensile strength long/short term(N) |
Crush resistance long/short term (N/100mm) |
Bending radius static/dynamic (mm) |
| GJYXCH | 1 | (2.0+-0.1)X(5.2+-0.1) | 19 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 2 | (2.0+-0.1)X(5.2+-0.1) | 19 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 4 | (2.0+-0.1)X(5.2+-0.1) | 19 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 8 | (2.5+-0.1)X(6.0+-0.1) | 27 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 12 | (2.5+-0.1)X(6.0+-0.1) | 27 | 300/600 | 1100/2200 | 15/30 |
| GJYXFCH | 1 | (2.0+-0.1)X(5.2+-0.1) | 18 | 300/600 | 1100/2200 | 15/30 |
| GJYXFCH | 2 | (2.0+-0.1)X(5.2+-0.1) | 18 | 300/600 | 1100/2200 | 15/30 |
| GJYXFCH | 4 | (2.0+-0.1)X(5.2+-0.1) | 18 | 300/600 | 1100/2200 | 15/30 |
| GJYXFCH | 8 | (2.5+-0.1)X(6.0+-0.1) | 25 | 300/600 | 1100/2200 | 15/30 |
| GJYXFCH | 12 | (2.5+-0.1)X(6.0+-0.1) | 25 | 300/600 | 1100/2200 | 15/30 |
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo on the cable.
Q: Can you provide free samples ?
A: If we have stock, free sample is available.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is the min
A: Generally 10km.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
