E2000 APC Fiber Optic Cable Green Connector Multimode Fiber Cable Patch Cord
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | E2000 APC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 pcs/ Month |
|
Detail Information |
|||
| Connector Type: | E2000 APC | Fiber Count: | 2 Fibers |
|---|---|---|---|
| Cable Diameter: | 2.0/3.0mm | Mode Type: | OM2 |
| Cable Color: | Orange | Outer Sheath Material: | PVC |
| High Light: | E2000 APC Fiber Optic Cable,Dia 3.0mm Fiber Optic Cable,Multimode Fiber Cable Patch Cord |
||
Product Description

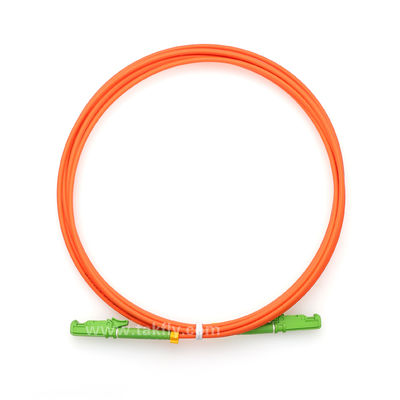

E2000 APC Fiber Optic Cable Green Connector Multimode Fiber Cable Patch Cord
Fiber Optic Cable Description:
The E2000 APC Fiber Optic Cable Green Connector Multimode Fiber Cable Patch Cord. The E2000 connector is a single-mode APC type, and the cable is a multimode fiber cable 50/125um OM2 fiber.
It is for a special application because the single-mode connector should be combined with the single-mode cable. And multimode connector should be combined with the multimode fiber. No matter which combination, Takfly always tries its best to meet your demands and requirements.
More information about the E2000 fiber optic cable, pls feel free to contact us.
Fiber Optic Cable Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANs)
- Data processing networks
- Test equipment
- Wide area networks(WANs)
Fiber Optic Cable Features:
- Low insertion loss and High reflection loss
- Good exchangeability
- Good durability
- High-temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Cable Specification:
| Fiber Optic Cable Specification: | |
| End face type | PC, UPC, and APC |
| Fiber type | SM(G652, G655, G657)； MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating | -20℃~70℃ |
| Temperature | |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius | 10D/20D |
| (Static/Dynamic | |
| Length | Customized |
Fiber Optic Cable types:
How to order Fiber Optic Cable
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
