1 Core Fiber Optic Armored Cable SM G652D LSZH Blue Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM/Takfly |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | GJSFJV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2KM |
|---|---|
| Price: | USD99.99/KM ~ USD399.99/KM |
| Packaging Details: | 2-4km per Wooden Drum |
| Delivery Time: | 7-11 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability: | 20000km channels each month |
|
Detail Information |
|||
| Product Name: | 1 Core Fiber Optic Armored Cable | Outer Sheath Material: | LSZH , PVC |
|---|---|---|---|
| Armored: | Steel | Metal Tube: | 1.2mm Or 1.4mm |
| Fiber Type: | SM G652D , G657A , G657B , MM , OM1 , OM2 , OM3 , OM4 | Cable Jacket: | Blue Or Customized |
| Cable Diameter: | 2.0mm Or 3.0mm | Length Per Drum: | 2KM Or Customized |
| Crush Resistance: | 3000N | Short Term Tensile Strength: | 150N |
| High Light: | 1 Core Fiber Optic Armored Cable,SM G652D Fiber Optic Armored Cable,LSZH Blue Jacket Fiber Optic Cable |
||
Product Description
1 Core Fiber Optic Armored Cable , SM G652D , LSZH Blue Jacket
Fiber Optic Armored Cable Description:

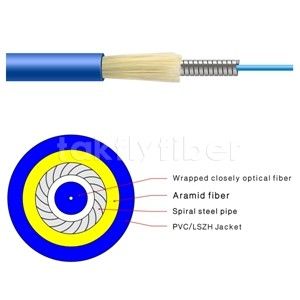

Simplex armored optical cable uses a single Φ600μm or Φ900μm tightly sheathed optical fiber as optical transmission medium, covered with a layer of spiral steel armor, and a layer of aramid yarn as stress strengthening unit. The outermost layer is extruded with a layer of polyvinyl chloride PVC or PU polyurethane,LSZH (low-smoke, halogen-free, flame retardant) jacket.
Fiber Optic Armored Cable Characteristic:
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meets the requirements of relevant standards;
- The mechanical characteristics meet the requirements of relevant standards;
- Soft, flexible, easy to splice, and with big capacity data transmission;
- Meet various requirements of market and clients.
Fiber Optic Armored Cable Application:
- Optical fiber active connection jumper or tail fiber;
- Optical connections in optical communication equipment rooms and optical distribution frames;
- Interconnection of instruments and communication equipment.
Fiber Charateristic:
|
Optical fiber type |
Test wavelength |
Decay |
Full injection bandwidth (MHZ.km) |
Effective modal bandwidth (MHZ.km) |
Minimum bending radius (mm) |
|
|
Typical (dB/km) |
Maximum (dB/km) |
|||||
| G652D |
1310/1550nm |
0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | ... | ... | 10 | |
| G657A2 | 0.36/0.22 | 0.5/0.4 | ... | ... | 7.5 | |
| 62.5/125 |
850/1300nm |
3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| 50/125 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ... | 30 | |
| OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000/... | 7.5 | |
| OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700/... | 7.5 | |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... | 7.5 |
Fiber Optic Armored Cable Product Structure:
| Fiber count | 1 | |||
|
Optical fiber
|
Diameter(±1µm) | 125µm | ||
| Coating diameter(±5µm) | 250µm | |||
|
Tight buffer
|
Diameter(±50µm) | 600µm | 900µm | |
| Sheath materiall | PVC/LSZH | |||
| Color | Blue or Other colors available upon request | |||
|
Metal tube
|
Diameter(mm) | 1.2mm | 1.4mm | |
| Material | Stainless steel | |||
|
Strength member |
Core reinforce |
Aramid yarn |
||
|
Outer sheath
|
Sheath material | PVC/LSZH/PU | ||
|
Color |
Blue for single mode cable, Grey for multi mode cable; Or others color available upon request |
|||
|
Cable
|
Outside diameter(mm) | 2.0mm | 3.0mm | |
| Cable weight (kg/km) | 15 | 19 | ||
|
Max tensile force(N) |
Long-term/ short-term |
80/150 |
80/150 |
|
|
Crush resistance(N/100mm) |
Short-term |
3000 |
3000 |
|
|
Min bend radius(D) |
Dynamic/ static |
20/10 |
20/10 |
|
| Running temperature | -20 ℃ ~+70 ℃ | |||
For your information, established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
1. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
2. Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
3. Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
4. High quality, attractive price and fast delivery
With more than 7 years experience in Fiber Optic field, I hope with my professional knowledge could help you to increase your sales.
