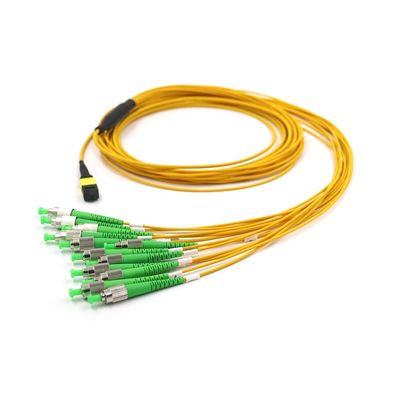

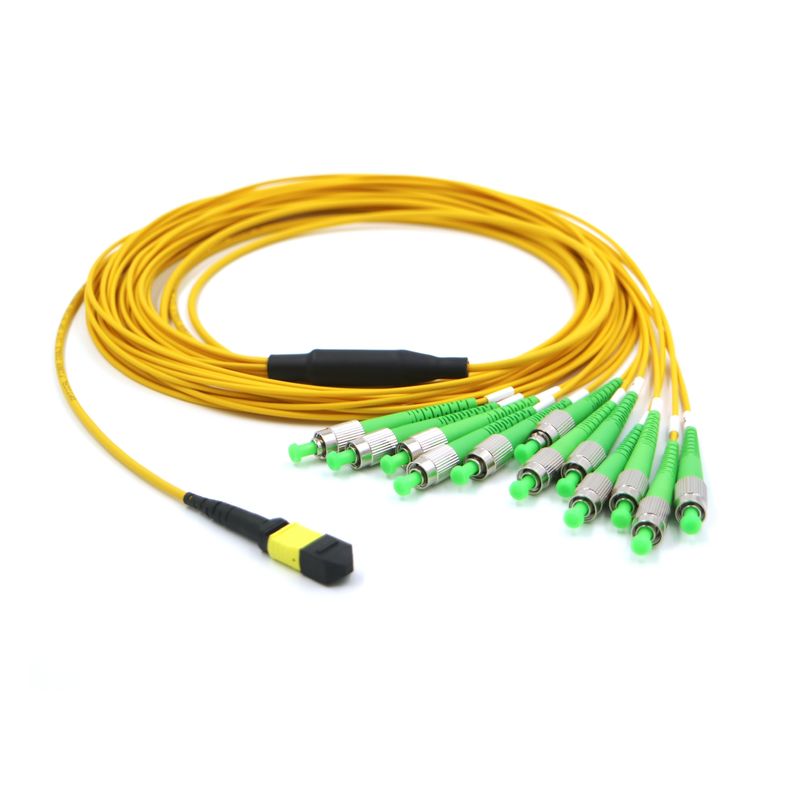

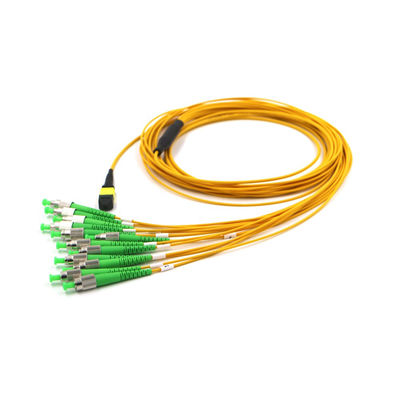

FC APC to MTP 12 Fiber Breakout Cable G657A1 0.3dB Low Loss
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | MPO MTP- FC |
| Document: | MPO-MTP Patchcord specifica...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability: | 50000 pcs/ Month |
|
Detail Information |
|||
| Product Name: | FC To MPO MTP G657A1 12 Fibers Mpo Breakout Cable 0.3dB Low Insertion Loss | Connector Type: | FC APC To MTP |
|---|---|---|---|
| Fiber Count: | 12 | Gender: | Femle Type |
| Cable Type: | 3.0mm Breakout Cable | Mode Type: | SM G657a1 |
| Cable Color: | Yellow Color | Insertion Loss: | 0.3dB |
| Return Loss: | UPC SM：40dB APC SM：60 DB PC MM：25 DB | Test Wavelength （nm）: | 1310/1550 |
| Outer Sheath Material: | LSZH | Application: | Fiber Solution |
| Highlight: | 12 Fibers MPO Breakout Cable,FC To MPO Breakout Cable,0.3dB MPO Breakout Cable |
||
Product Description
FC To MPO MTP G657A1 12 Fibers Mpo Breakout Cable 0.3dB Low Insertion Loss
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | FC To MPO MTP G657A1 12 Fibers Mpo Breakout Cable 0.3dB Low Insertion Loss |
| Connector Type | FC APC to MTP |
| Fiber Count | 12 |
| Gender | Female type |
| Cable type | 3.0mm breakout cable |
| Mode type | SM g657a1 |
| Cable color | Yellow |
| Insertion loss | 0.3dB |
| Return loss | UPC SM：40dB APC SM：60 dB PC MM：25 dB |
| Test Wavelength (nm) | 1310/1550 |
| Outer Sheath Material | LSZH |
| Application | Fiber solution |
Product Description
This FC to MPO/MTP breakout cable features G657A1 single-mode fiber with 12 fibers in a 3.0mm breakout cable configuration. With low insertion loss of 0.3dB and high return loss specifications, it provides reliable performance for demanding fiber optic applications.
Key Features
- Precision molded MT ferrule for optimal performance
- High precision guide pins for exact alignment
- Compact design supporting up to 4, 8, 12, or 24 fibers
- Compliant with IEC 61754-7 and EIA/TIA-604-5 standards
- LSZH outer sheath material for safety
- Customizable lengths available
Technical Specifications
| Parameter | LC,SC,ST,FC... | MPO/MTP |
|---|---|---|
| End face type | PC, UPC, and APC | PC and APC |
| Fiber type | SM(G652, G655, G657); MM(OM1-OM5) | |
| Core number | 12,24 | |
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video, and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnects
- Interconnection for O/E modules
- Industrial & Military applications
- Optical Switch interframe connections
MPO/MTP Patchcord Fiber Count Types
How to Order
- Specify connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Select mode type: single mode (UPC and APC) / multi mode (PC)
- Choose cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Select coating material: PVC / LSZH
- Specify fiber count: simplex / duplex / 4 core / 6 core / 8 core /12 core / 24 core / 48 core / 96 core
- Choose cable type: G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
- Specify patch cord length according to your requirements
- For MPO/MTP connectors: specify method (A type / B type /C type), gender (male/female), and fiber count (4/8/12/16/24/32 fiber)
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pc, but the price is not competitive. With more quantity, the price will be more competitive.
Q: Can you quote the FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver by sea. We can quote the price with freight and lead time after receiving your detailed requirements with quantity.
Q: How is your quality?
A: Our production follows IEC and Europe standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
Q: What's your lead time?
A: It depends on quantity and products. For fiber optic patch cords, lead time is typically 2-3 working days for quantities under 5000 pcs. We keep regular products in stock and can accommodate urgent orders.
Q: What's your warranty?
A: We offer 1 year warranty for patch cords against non-artificial damage. For artificial damage, we provide free repairs with buyer responsible for freight costs.
Q: What's your payment term?
A: We accept T/T, Western Union, Paypal, MoneyGram. For large amounts, we can arrange 50% deposit in advance with 50% balance paid before delivery.
