8524-3LCD05 1.25Gbps SFP Optical Transceiver – 850nm VCSEL, 550m, LC Duplex, MMF, SFP MSA Compliant
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | TK-8524-3LCD05 1.25Gbps |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 3000PCS/Week |
|
Detail Information |
|||
| Highlight: | 1.25Gbps SFP optical transceiver,850nm VCSEL SFP transceiver,550m LC duplex optical transceiver |
||
|---|---|---|---|
Product Description

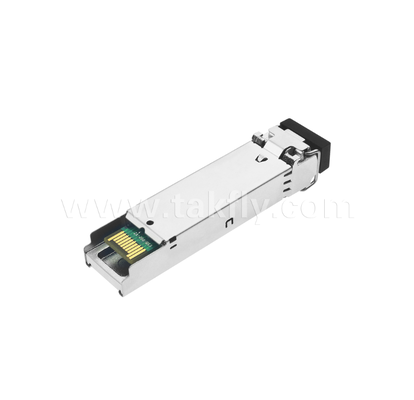

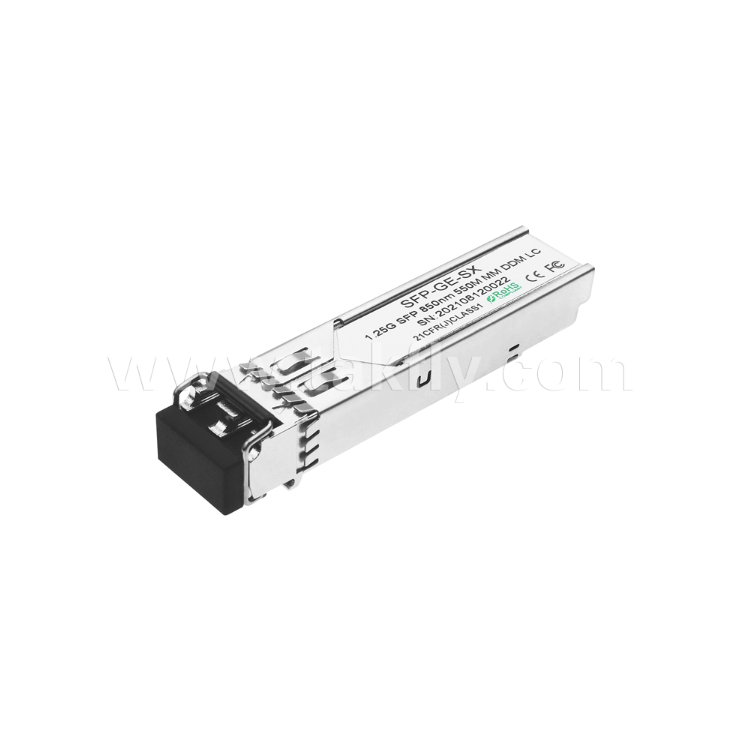

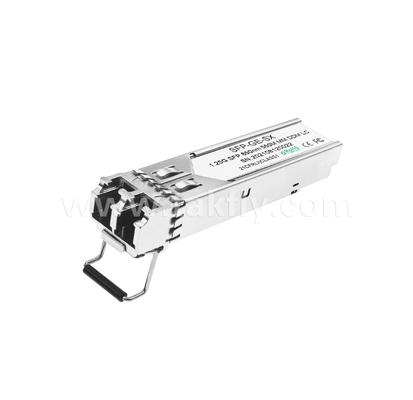

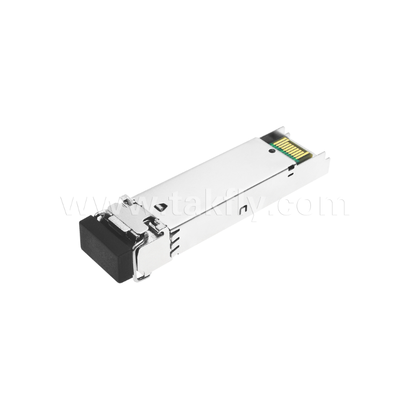

8524-3LCD05 1.25Gbps SFP Optical Transceiver
The TK-8524-3LCD05 is a high-performance, cost-effective SFP optical transceiver designed for 1.25Gbps Gigabit Ethernet applications over multimode fiber (MMF). Supporting a 550m transmission distance, this module is ideal for short-reach interconnects in data centers, enterprise networks, and campus LAN environments.
The 850nm VCSEL laser provides low-cost, low-power, and reliable optical transmission, while the PIN-TIA receiver delivers high sensitivity for accurate signal detection in short-range applications.
Product Features
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- 500m transmission with 50/125μm MMF
- 300m transmission with 62.5/125μm MMF
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature options:
- Standard: 0 to +70°C
- Extended: -20 to +85°C
- Industrial: -40 to +85°C
Applications
- Gigabit Ethernet networks
- Data center short-reach interconnects
- Enterprise network cabling
- Campus LAN networks
- Server to switch connections
- Storage area networks (SAN) over short distances
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Manufacturing Excellence
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China
Delivery Information
| Samples: | 1-3 working days |
| Mass production orders: | 3-7 working days |
| Packaging: | Plastic bag, carton, and pallet options available according to your requirements |
Want to Know more details about this product
