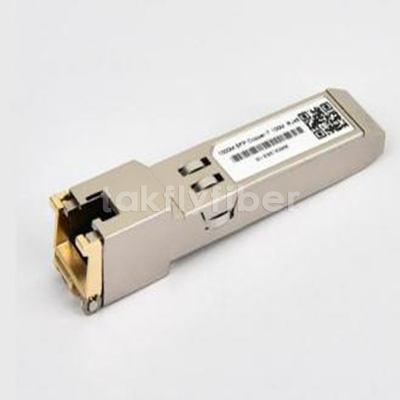

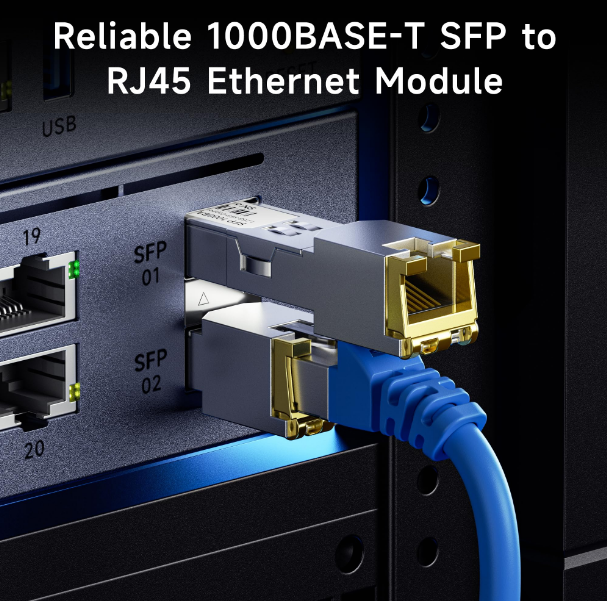

RJ45 Gigabit SFP Module – 1000BASE-T, 1.25Gbps, 100m over Cat 6, Low EMI
Product Overview
The TK-G1-RJ45 is a hot-pluggable copper SFP transceiver designed for Gigabit Ethernet applications. It conforms to IEEE 802.3-2002 and IEEE 802.3ab (1000BASE-T) standards. The module operates at 1000Mbps data rate over Category 5 unshielded twisted-pair cable with a maximum reach of 100 meters.
Signal transmission uses 5-level Pulse Amplitude Modulation (PAM) on all four wire pairs (250 Mbps per pair) for full-duplex links. The module includes serial ID functionality per SFP MSA, accessible via a 2-wire serial bus at address A0h. The physical layer IC can also be accessed at address ACh.
Key Features
- Data rate up to 1.25Gb/s bidirectional
- SFP MSA compliant, hot-pluggable
- TX Disable and RX LOS (or no LOS)
- Full metal housing for low electromagnetic interference
- Typical power consumption: 1.05 W
- Compact RJ-45 connector
- 2-wire serial bus access to physical IC
- Supports 1000BASE-T on host systems with SERDES interface
- Operating case temperature: 0℃ to +70℃ (commercial) or -20℃ to +85℃ (extended)
Applications
- 1.25 Gigabit Ethernet transmission over Cat 5 cable
Pin Assignment and Functions
| Pin | Name | Function | Seq. | Notes |
|---|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 | VeeT and VeeR are internally connected. |
| 2 | TX_FAULT | Transmitter Fault | 3 | Not implemented; tied to VeeT. |
| 3 | TX_DISABLE | Transmitter Disable | 3 | See TX Disable description. |
| 4 | MOD DEF (2) | Module Definition 2 | 3 | Data line for serial ID bus. |
| 5 | MOD DEF (1) | Module Definition 1 | 3 | Clock line for serial ID bus. |
| 6 | MOD DEF (0) | Module Definition 0 | 3 | Tied to Vee in SFP. |
| 7 | RATE SELECT | Not used | 3 | Not implemented; 33k pulldown to Vee. |
| 8 | LOS | Loss of Signal | 3 | See LOS option. |
| 9 | VeeR | Receiver Ground | 1 | Connected to VeeT inside SFP. |
| 10 | VeeR | Receiver Ground | 1 | Same as above. |
| 11 | VeeR | Receiver Ground | 1 | Same as above. |
| 12 | RD- | Inverted RX Data | 3 | AC coupled, 100Ω differential. |
| 13 | RD+ | Non-inverted RX Data | 3 | AC coupled, 100Ω differential. |
| 14 | VeeR | Receiver Ground | 1 | Connected to VeeT. |
| 15 | VccR | Receiver Power | 2 | Connected to VccT. |
| 16 | VccT | Transmitter Power | 2 | Connected to VccR. |
| 17 | VeeT | Transmitter Ground | 1 | Common ground. |
| 18 | TD+ | Non-inverted TX Data | 3 | AC coupled, 100Ω differential input. |
| 19 | TD- | Inverted TX Data | 3 | AC coupled, 100Ω differential input. |
| 20 | VeeT | Transmitter Ground | 1 | Common ground. |
Notes on Pin Functions
- Plug Seq.: Pin engagement order during hot-plugging.
- TX_FAULT: Permanently low (not supported).
- TX_DISABLE: Internal 4.7kΩ pull-up. Low (0-0.8V) → transceiver on; High (2.0-3.465V) or open → reset.
- Mod-Def 0/1/2: Host pulls up with 4.7k-10kΩ to Vcc. Mod-Def 0 = module present (grounded). Mod-Def 1 = clock, Mod-Def 2 = data.
- RX_LOS: LVTTL output. Can be disabled (order option). If unused, tied to ground via 100Ω.
- RD ± / TD±: AC coupled 100Ω differential lines. Host SERDES must terminate RD± with 100Ω; TD± have internal 100Ω termination.
Power Supply (+3.3V)
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Supply Current | Is | 320 | 375 | mA | 1.2W max over full Vcc & temp | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Maximum Voltage | Vmax | 4 | V | Non-destructive |
Low-Speed Interface (LVTTL)
| Parameter | Symbol | Min | Max | Unit | Condition |
|---|---|---|---|---|---|
| SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k-10k pull-up to host_Vcc |
| SFP Output HIGH | VOH | host_Vcc-0.5 | host_Vcc+0.3 | V | Same pull-up |
| SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k-10k pull-up to Vcc |
| SFP Input HIGH | VIH | 2 | Vcc+0.3 | V | Same pull-up |
High-Speed Electrical Characteristics (SFP Side)
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Line Frequency | fL | 125 | MHz | 5-level encoding, IEEE 802.3 | ||
| TX Output Impedance (diff) | Zout,TX | 100 | Ω | 1-125 MHz | ||
| RX Input Impedance (diff) | Zin,RX | 100 | Ω | 1-125 MHz |
High-Speed Interface (Host Side)
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Single-ended TX input swing | Vinswing | 250 | 1200 | mV | ||
| Single-ended RX output swing | Voutswing | 350 | 800 | mV | ||
| Rise/Fall time (20-80%) | Tr,Tf | 175 | ps | |||
| TX input impedance (SE) | Zin | 50 | Ω | |||
| RX output impedance (SE) | Zout | 50 | Ω |
Temperature Ranges
| Parameter | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Operating (Commercial) | 0 | 70 | ℃ | |
| Operating (Extended) | -20 | 85 | ℃ | |
| Storage | -40 | 85 | ℃ |
Mechanical Outline
The module's host-side mechanical dimensions follow SFP MSA specifications. The front portion (protruding outside the host panel) is enlarged to accommodate the RJ-45 jack.
Reference Documents
- SFP Transceiver MSA, September 2000
- IEEE 802.3-2002 (including 802.3ab)
- Atmel AT24C01A/02/04/08/16 2-Wire Serial EEPROM datasheet
Regulatory Compliance
| Feature | Standard | Result |
|---|---|---|
| ESD | IEC/EN 61000-4-2 | Compliant |
| EMI | FCC Part 15 Class B, EN 55022 Class B | Compliant |
| Laser Safety | FDA 21CFR 1040.10, 1040.11; IEC/EN 60825-1,2 | Class 1 |
| Product Safety | IEC/EN 60950, UL | Compliant |
| RoHS | 2002/95/EC | Compliant |
| EMC | EN61000-3 | Compliant |
