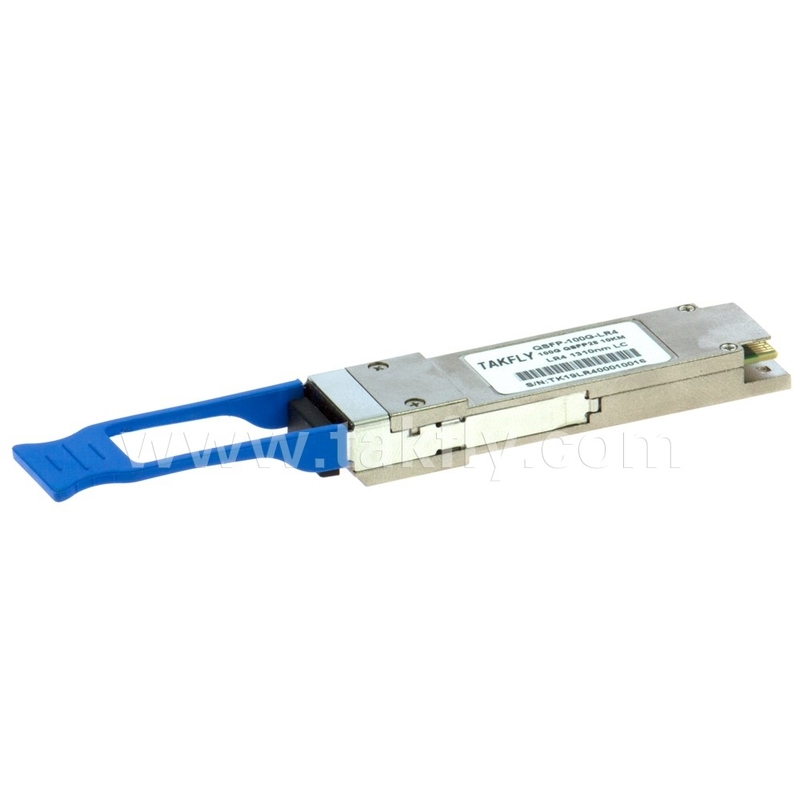

• Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections
  • Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections
Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections

Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: TKQS28-100G-LR4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Delivery Time: 3-7working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Get Best Price Contact Now

Detail Information

Ratio: 50/50 Center Wavelength: 1450nm
Insertion Loss: ≤0.3dB Package Weight: 10g
Package Type: Bare Fiber, 900um Loose Tube, 2mm Cable Wavelegth: 1310nm
Axis Alignment: Slow Axis Or Fast Axis Wavelength Range: 1310nm, 1550nm
Application: Optical Communication Systems Splitter Ratio: 98/2
Storage Temperature: -40~+85℃ Port Number: 1x2
Fiber Length: 1m Fiber: PM Corning 980nm Fiber
Power Handling Capacity: High Power
Highlight:

100Gbps QSFP28 LR4 Transceiver

,

DDM QSFP28 LR4 Transceiver

,

10KM QSFP28 LR4 Transceiver

Product Description

Features

Ø Hot pluggable QSFP28 MSA form factor

Ø Compliant to IEEE 802.3ba 100GBASE-LR4

Ø Supports 103.1Gb/s aggregate bit rate

Ø Up to 10km reach for G.652 SMF

Ø Single +3.3V power supply

Ø Operating case temperature: 0~70

Ø Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

Ø Receiver: 4x25Gb/s PIN ROSA

Ø 4x28G Electrical Serial Interface (CEI-28G-VSR)

Ø Maximum power consumption 4.0W

Ø Duplex LC receptacle


Applications

Ø 100GBASE-LR4 Ethernet Links

Ø Infiniband QDR and DDR interconnects

Ø Client-side 100G Telecom connections


Description

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Functional Description

The transceiver module receives 4 channels of 25Gb/s electrical data, which are processed by a 4-channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal. Subsequently, each of 4 EML laser driver IC's converts one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled EML lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA). Each laser launches the optical signal in specific wavelength specified in IEEE802.3ba 100GBASE-LR4 requirements. These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit. The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.

The receiver receives 4-lane LAN WDM optical signals. The optical signals are de-multiplexed by a 1-to-4 optical DEMUX and each of the resulting 4 channels of optical signals is fed into one of the 4 receivers that are packaged into the Receiver Optical Sub-Assembly (ROSA). Each receiver converts the optical signal to an electrical signal. The regenerated electrical signals are retimed and de-jittered and amplified by the RX portion of the 4-channel CDR. The retimed 4-lane output electrical signals are compliant with IEEE CAUI-4 interface requirements. In addition, each received optical signal is monitored by the DOM section. The monitored value is reported through the 2-wire serial interface. If one or more received optical signal is weaker than the threshold level, RX_LOS hardware alarm will be triggered.

A single +3.3V power supply is required to power up this product. Both power supply pins VccTx and VccRx are internally connected and should be applied concurrently. As per MSA specifications the module offers 7 low speed hardware control pins (including the 2-wire serial interface): ModSelL, SCL, SDA, ResetL, LPMode, ModPrsL and IntL.

Module Select (ModSelL) is an input pin. When held low by the host, this product responds to 2-wire serial communication commands. The ModSelL allows the use of this product on a single 2-wire interface bus – individual ModSelL lines must be used.

Serial Clock (SCL) and Serial Data (SDA) are required for the 2-wire serial bus communication interface and enable the host to access the QSFP28 memory map.

The ResetL pin enables a complete reset, returning the settings to their default state, when a low level on the ResetL pin is held for longer than the minimum pulse length. During the execution of a reset the host shall disregard all status bits until it indicates a completion of the reset interrupt. The product indicates this by posting an IntL (Interrupt) signal with the Data_Not_Ready bit negated in the memory map. Note that on power up (including hot insertion) the module should post this completion of reset interrupt without requiring a reset.

Low Power Mode (LPMode) pin is used to set the maximum power consumption for the product in order to protect hosts that are not capable of cooling higher power modules, should such modules be accidentally inserted.

Module Present (ModPrsL) is a signal local to the host board which, in the absence of a product, is normally pulled up to the host Vcc. When the product is inserted into the connector, it completes the path to ground through a resistor on the host board and asserts the signal. ModPrsL then indicates its present by setting ModPrsL to a “Low” state.

Interrupt (IntL) is an output pin. “Low” indicates a possible operational fault or a status critical to the host system. The host identifies the source of the interrupt using the 2-wire serial interface. The IntL pin is an open collector output and must be pulled to the Host Vcc voltage on the Host board.


Transceiver Block Diagram

Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections 0

Figure 1.  Transceiver Block Diagram



Pin Assignment and Description

Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections 1

Figure 2.  MSA compliant Connector


Pin Definition

PIN

Logic

Symbol

Name/Description

Note s

1



GND

Ground

1

2

CML-I

Tx2n

Transmitter Inverted Data Input



3

CML-I

Tx2p

Transmitter Non-Inverted Data output



4



GND

Ground

1

5

CML-I

Tx4n

Transmitter Inverted Data Input



6

CML-I

Tx4p

Transmitter Non-Inverted Data output



7



GND

Ground

1

8

LVTLL-I

ModSelL

Module Select



9

LVTLL-I

ResetL

Module Reset



10



VccRx

+3.3V Power Supply Receiver

2

11

LVCMOS-I/O

SCL

2-Wire Serial Interface Clock



12

LVCMOS-I/O

SDA

2-Wire Serial Interface Data



13



GND

Ground



14

CML-O

Rx3p

Receiver Non-Inverted Data Output



15

CML-O

Rx3n

Receiver Inverted Data Output



16



GND

Ground

1

17

CML-O

Rx1p

Receiver Non-Inverted Data Output



18

CML-O

Rx1n

Receiver Inverted Data Output



19



GND

Ground

1

20



GND

Ground

1

21

CML-O

Rx2n

Receiver Inverted Data Output



22

CML-O

Rx2p

Receiver Non-Inverted Data Output



23



GND

Ground

1

24

CML-O

Rx4n

Receiver Inverted Data Output

1

25

CML-O

Rx4p

Receiver Non-Inverted Data Output



26



GND

Ground

1

27

LVTTL-O

ModPrsL

Module Present



28

LVTTL-O

IntL

Interrupt



29



VccTx

+3.3 V Power Supply transmitter

2

30



Vcc1

+3.3 V Power Supply

2

31

LVTTL-I

LPMode

Low Power Mode



32



GND

Ground

1

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input



34

CML-I

Tx3n

Transmitter Inverted Data Output



35



GND

Ground

1

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input



37

CML-I

Tx1n

Transmitter Inverted Data Output



38



GND

Ground

1


 Notes:

1. GND is the symbol for signal and supply (power) common for the QSFP28 module. All are common within the module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.

2.VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown in Figure 3 below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the module in any combination. The connector pins are each rated for a maximum current of 1000mA.


Recommended Power Supply Filter

Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections 2

Figure 3. Recommended Power Supply Filter


Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Units

Notes

Storage Temperature

TS

-40

85

degC



Operating Case Temperature

TOP

0

70

degC



Power Supply Voltage

VCC

-0.5

3.6

V



Relative Humidity (non-condensation)

RH

0

85

%



Damage Threshold, each Lane

THd

5.5



dBm



Recommended Operating Conditions and Power Supply Requirements


Parameter

Symbol

Min

Typical

Max

Units

Operating Case Temperature

TOP

0



70

degC

Power Supply Voltage

VCC

3.135

3.3

3.465

V

Data Rate, each Lane





25.78125



Gb/s

Control Input Voltage High



2



Vcc

V

Control Input Voltage Low



0



0.8

V

Link Distance with G.652

D

0.002



10

km

Notes:

1.Depending on actual fiber loss/km (link distance specified is for fiber insertion loss of0.4dB/km)



Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min

Typical

Max

Units

Notes

Power Consumption







4.0

W



Supply Current

Icc





1.21

A



Transceiver Power-on Initialization Time









2000



ms



1

Transmitter (each Lane)





Single-ended Input Voltage Tolerance (Note 2)







-0.3







4.0





V

Referred to TP1 signal common

AC Common Mode Input

Voltage Tolerance





15







mV



RMS

Differential Input Voltage Swing Threshold





50







mVpp

LOSA

Threshold

Differential Swing

Input

Voltage



Vin,pp



190





700



mVpp



Differential Input Impedance

Zin

90

100

110

Ohm



Receiver (each Lane)



Single-ended Voltage





Output







-0.3







4.0





V

Referred to signal

common

AC Common Mode Output

Voltage









7.5



mV



RMS

Differential Output Voltage Swing



Vout,pp



300





850



mVpp



Differential Impedance



Output



Zout



90



100



110



Ohm



Notes:

1.Power-on Initialization Time is the time from when the power supply voltages reach and remain above the minimum recommended operating supply voltages to the time when the module is fully functional.

2.The single ended input voltage tolerance is the allowable range of the instantaneous input signals.



Optical Characteristics

QSFP28 100GBASE-LR4


Parameter

Symbol

Min

Typical

Max

Unit

Notes






Lane Wavelength

L0

1294.53

1295.56

1296.59

nm






L1

1299.02

1300.05

1301.09

nm






L2

1303.54

1304.58

1305.63

nm






L3

1308.09

1309.14

1310.19

nm




Transmitter


Side Mode Suppression Ratio

SMSR

30





dB




Total Average Launch Power

PT





10.5

dBm




Average Launch Power, each Lane



PAVG



-4.3





4.5



dBm




OMA, each Lane

POMA

-1.3



4.5

dBm

1


Difference in Launch Power between any Two Lanes (OMA)



Ptx,diff







5



dB




Launch Power in OMA minus Transmitter and Dispersion





-2.3







dBm




Penalty (TDP), each Lane













TDP, each Lane

TDP





2.2

dB



Extinction Ratio

ER

4





dB



RIN20OMA

RIN





-130

dB/Hz



Optical Return Loss Tolerance

TOL





20

dB



Transmitter Reflectance

RT





-12

dB



Eye Mask{X1, X2, X3, Y1, Y2, Y3}





{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}





2

Average   Launch Power OFF

Transmitter, each Lane



Poff







-30



dBm



Receiver

Damage Threshold, each Lane

THd

5.5





dBm

3

Total Average Receive Power







10.5

dBm



Average Receive Power, each Lane





-10.6





4.5



dBm



Receive   Power (OMA), each

Lane









4.5



dBm



Receiver Sensitivity (OMA), each Lane



SEN







-8.6



dBm



Stressed Receiver Sensitivity

(OMA), each Lane









-6.8



dBm



4

Receiver Reflectance

RR





-26

dB



Difference in Receive Power

between any Two Lanes (OMA)



Prx,diff







5.5



dB



LOS Assert

LOSA



-18



dBm



LOS Deassert

LOSD



-15



dBm



LOS Hysteresis

LOSH

0.5





dB



Receiver Electrical 3 dB upper Cutoff Frequency, each Lane



Fc







31



GHz



Conditions of Stress Receiver Sensitivity Test (Note 5)

Vertical Eye Closure Penalty, each Lane







1.8





dB



Stressed Eye J2 Jitter, each Lane





0.3



UI



Stressed Eye J9 Jitter, each Lane





0.47



UI


 Notes:

1.Even if the TDP < 1 dB, the OMA min must exceed the minimum value specified here.

2.See Figure 4 below.

3.The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal

having this power level on one lane. The receiver does not have to operate correctly at this input power.

4.Measured with conformance test signal at receiver input for BER = 1x10-12.

5.Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

 Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections 3


Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

Parameter

Symbol

Min

Max

Units

Notes

Temperature monitor absolute error



DMI_Temp



-3



+3



degC

Over operating temperature range

Supply voltage monitor

absolute error



DMI _VCC



-0.1



0.1



V

Over full operating

range

Channel RX power monitor absolute error



DMI_RX_Ch



-2



2



dB



1

Channel Bias current

monitor

DMI_Ibias_Ch

-10%

10%

mA



Channel TX power

monitor absolute error

DMI_TX_Ch

-2

2

dB

1

 Notes:

Due to measurement accuracy of different single mode fibers, there could be an additional +/-1 dB fluctuation, or a +/- 3 dB total accuracy.



Mechanical Dimensions

Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections 4

Figure 4. Mechanical Outline


ESD

This transceiver is specified as ESD threshold 1KV for high speed data pins and 2KV for all others electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A  (HBM).  However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.


Laser Safety

This is a Class 1 Laser Product according to EN 60825-1:2014. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).

Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.


Regulatory Compliance

Feature

Reference

Performance



Electrostatic discharge(ESD)



IEC/EN 61000-4-2



Compatible with standards



Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B

(CISPR 22A)



Compatible with standards



Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN

60825-1, 2



Class 1 laser product

Component Recognition

IEC/EN 60950, UL

Compatible with standards

ROHS

2002/95/EC

Compatible with standards

EMC

EN61000-3

Compatible with standards


Want to Know more details about this product
I am interested in Client-side 100Gbps 10KM QSFP28 LR4 with DDM Transceiver High Power Fiber Length 1m Telecom Connections could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
