| Product Name: | 10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network |（TKX-TDxxX-3LCD80） | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps DWDM XFP transceiver,Tunable XFP transceiver 80KM,DWDM optical transceiver module |
||
Product Description

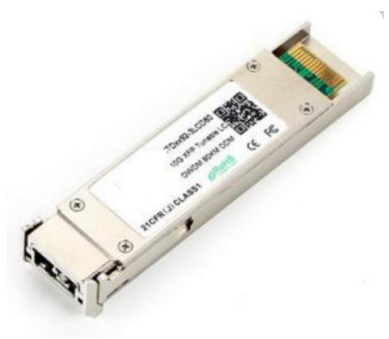

10Gbps Tunable DWDM 80KM XFP Transceiver | Fiber Optical Network | (TKX-TDxxX-3LCD80)
Product Overview
The Tunable 10Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95Gb/s to 11.35Gb/s. The module complies with the 10Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications (SFF-8477).
It complies with the ITU-T G.698.1 standard with 50GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80km reach (Ethernet), and DWDM 10GFC for 80km reach (Fiber Channel) applications.
The transceiver integrates the receiver and transmit path on one module. On the transmit side, the 10Gbps serial data stream is recovered, retimed, and passed to a modulator driver. The modulator driver biases and modulates a C-band-tunable integrated laser Mach-Zehnder (ILMZ), enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side, the 10Gbps data stream is recovered from an APD/ trans-impedance amplifier, retimed, and passed to an output driver. This module features a hot-pluggable XFI-compliant electrical interface.
Applications
- DWDM 10GBASE-ZR/ZW 10G Ethernet
- DWDM 80KM 10G Fiber Channel
- DWDM SONET OC-192 & SDH STM-64
Key Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter
- 50GHz ITU channel spacing with integrated wavelength locker
- C-band-tunable Laser and APD receiver
- Maximum link length of 80km
- Full Duplex LC connector
- Hot-pluggable XFP footprint
- Supports Line-side and XFI loopback
- No Reference Clock required
- Built-in digital diagnostic functions
- Standard bail release mechanism
- Power dissipation <3.5W
Technical Specifications
Notes:
1) Corresponds to approximately 0.4 nm.
2) Measured with worst ER; BER<10 -12 with 10.3Gbps,2 31 - 1 PRBS.
1) Corresponds to approximately 0.4 nm.
2) Measured with worst ER; BER<10 -12 with 10.3Gbps,2 31 - 1 PRBS.
Electrical Interface Characteristics
Note:
1) Maximum total power value is specified across the full temperature and voltage range.
2) After internal AC coupling.
3) Into 100 ohms differential termination.
4) Loss Of Signal is open collector to be pulled up with a 4.7k - 10kohm resistor to 3.15 - 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
1) Maximum total power value is specified across the full temperature and voltage range.
2) After internal AC coupling.
3) Into 100 ohms differential termination.
4) Loss Of Signal is open collector to be pulled up with a 4.7k - 10kohm resistor to 3.15 - 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
