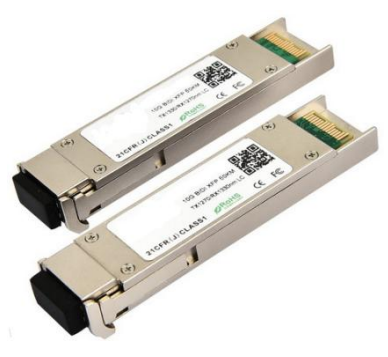

10Gbps XFP Bi-Directional Transceiver | 60KM Reach Tx1270/1330nm / Rx1330/1270 nm |（XFP-TKBxx92-3LCD60）
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | XFP-TKBxx92-3LCD60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 10Gbps Tunable DWDM 80KM SFP+ Transceiver | 80KM Reach High Quality And Cost Effective |（TKTDxxX-3LCD80） | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps XFP transceiver 60KM reach,XFP Bi-Directional transceiver Tx1270/1330nm,XFP optical transceiver module with warranty |
||
Product Description
10Gbps XFP Bi-Directional Transceiver | 60KM Reach
Model: XFP-TKBxx92-3LCD60 | Tx1270/1330nm / Rx1330/1270 nm
Product Overview
TAKFLY XFP-TKBxx92-3LCD60 is compliant with IEEE803.3ae 10Gbase-Bx standards and delivers transmission distances up to 60km on single-mode fiber. This transceiver module features a 1270/1330nm DFB laser transmitter and an APD photodiode receiver integrated with TIA, operating within a wide temperature range of 0℃ to +70℃.
Applications
- 10GBASE-ER 10G Ethernet at 10.3125Gbps
- 10GBASE-EW 10G Ethernet at 9.953Gbps
- 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps
Key Features
- Supports 9.95Gb/s to 10.5Gb/s bit rates
- Hot-pluggable XFP footprint
- Maximum link length of 60KM with SMF
- 1270/1330nm DFB laser Transmitter and 1330/1270nm APD Receiver
- XFP MSA package with LC connector
- No reference clock required
- Loop Back Support
- +3.3V,+1.8V power supply
- Power dissipation <2W
- Compatible with RoHS
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
Technical Specifications
Notes: 1) The optical power is launched into SMF. 2) Measured with RPBS 2^31-1 test pattern @10.3125Gbs
Notes: 1) Measured with RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12 ER=6DB
Electrical Interface Characteristics
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
