10Gbps Tunable DWDM 80KM SFP+ Transceiver | 80KM Reach High Quality and Cost Effective |（TKTDxxX-3LCD80）
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TKTDxxX-3LCD80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 10Gbps Tunable DWDM 80KM SFP+ Transceiver | 80KM Reach High Quality And Cost Effective |（TKTDxxX-3LCD80） | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps DWDM SFP+ transceiver 80KM reach,tunable DWDM SFP+ transceiver with warranty,80KM SFP+ transceiver cost effective |
||
Product Description

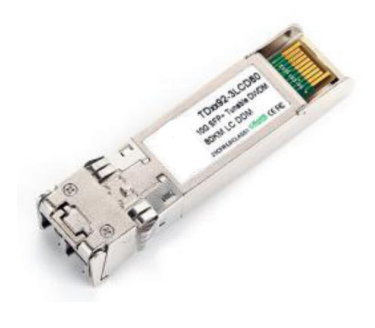

10Gbps Tunable DWDM 80KM SFP+ Transceiver
Model: TKTDxxX-3LCD80 | 80KM Reach | High Quality and Cost Effective
Product Overview
The Tunable 10Gb/s SFP+ transceiver provides high-speed serial links at signaling rates from 9.95 Gb/s to 11.3 Gb/s. This integrated fiber optic transceiver complies with SFP+ MSA standards (SFF-8431, SFF-8432, SFF-8690, SFF-8472) and ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10G FC for 80 km reach (Fiber Channel) applications.
The module integrates both receiver and transmitter paths, featuring a C-band-tunable integrated Mach-Zehnder laser for data transmission over single-mode fiber via industry-standard LC connectors. The receiver side recovers the 10 Gb/s data stream using APD/trans-impedance amplifier technology.
Applications
- DWDM 10GBASE-ZR/ZW 10G Ethernet
- DWDM 80KM 10G Fiber Channel
- DWDM SONET OC-192 & SDH STM-64
Key Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter and APD receiver
- 50 GHz ITU channel spacing with integrated wavelength locker
- Maximum link length of 80km
- Metal enclosure for lower EMI
- 2-wire interface with integrated Digital Diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Power dissipation <1.65W
- Case temperature range: -5°C to 70°C
Technical Specifications
Notes:
1. Output power is power coupled into a 9/125 mm single-mode fiber.
2. ƒc refers to Page 2 the Frequency row of TKTDxxX-3LCD80 Wavelength Guide Table, and test condition is reflect power to transmitter lower than -27dBm.
3. Corresponds to approximately 0.4 nm.
1. Output power is power coupled into a 9/125 mm single-mode fiber.
2. ƒc refers to Page 2 the Frequency row of TKTDxxX-3LCD80 Wavelength Guide Table, and test condition is reflect power to transmitter lower than -27dBm.
3. Corresponds to approximately 0.4 nm.
Electrical Interface Characteristics
Note:
1) Connected directly to TX data input pins. AC coupled thereafter.
2) Or open circuit.
3) Into 100 ohms differential termination.
4) These are unfiltered 20-80% values. Loss of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
1) Connected directly to TX data input pins. AC coupled thereafter.
2) Or open circuit.
3) Into 100 ohms differential termination.
4) These are unfiltered 20-80% values. Loss of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
Product Images
