10Gbps 1550nm SFP+ Optical Transceiver | High Quality and Cost Effective TAKFLY 40KM Reach (TK-1592-3LCD40)
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-1592-3LCD40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 10Gbps 1550nm SFP+ Optical Transceiver | High Quality And Cost Effective TAKFLY 40KM Reach (TK-1592-3LCD40) | Supply Voltage: | 3.15-3.6V |
|---|---|---|---|
| Supply Current: | 185-280 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 250-1200 MV | Transmit Disable Assert Time: | 10 Us |
| ISingle Ended Data Output Swing: | 250-800 MV | Power Supply Rejection: | 100 MVpp |
| Working Temperature: | 0 °C To +70 °C | Storage Temperature: | -40 °C To +85 °C (Industrial) |
| Warranty: | 1 Years, Lifetime Maintenance | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | 10Gbps SFP+ optical transceiver 40KM reach,1550nm SFP+ transceiver with warranty,TAKFLY optical transceiver module cost effective |
||
Product Description
10Gbps 1550nm SFP+ Optical Transceiver | High Quality and Cost Effective TAKFLY 40KM Reach (TK-1592-3LCD40)
Product Overview
TAKFLY's SFP+ transceiver TK-1592-3LCD40 is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system can also disable the module via I2C. Tx Fault indicates laser degradation, while Loss of signal (LOS) output indicates loss of input optical signal or link status with partner. The system can access LOS (or Link)/Disable/Fault information via I2C register access.
Applications
- Switch to Switch Interface
- Gigabit Ethernet
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
- 10GBASE-ER/EW
- 10G Ethernet
Key Features
- Hot-pluggable SFP+ footprint
- Supports 9.5 to 11.3Gb/s bit rates
- Single 3.3V power supply
- Maximum link length of 40km
- 1550nm EML transmitter, PIN photo-detector
- Duplex LC connector
- Power dissipation < 1.5W
- Built-in digital diagnostic functions
- Case temperature range: Standard: -5 to +70°C, Industrial: -40 to +85°C
Compliance Standards
- Compliant with SFF-8472 SFP+ MSA
- Compliant to SFP+ SFF-8431 and SFF-8432
- Compliant to 802.3ae 10GBASE-ER
- RoHS Compliant
Optical Characteristics
Note: 1) Launched power (avg.) is power coupled into a single mode fiber with master connector (Beginning of Life). 2) These are unfiltered 20-80% values. 3) Measured with conformance test signal for BER = 10^-12 @10.3125Gbps, PRBS=2^31-1, NRZ.
Electrical Interface Characteristics

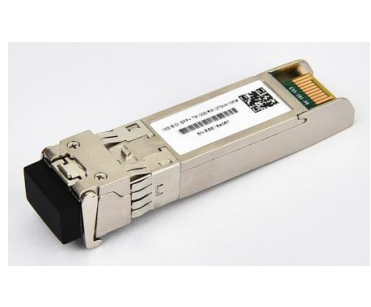

Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
