10Gbps 1310nm MM 220M SFP+ Optical Transceive | High Quality and Cost Effective |（TK-1392-3LCD02）
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-1392-3LCD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 10Gbps 1310nm MM 220M SFP+ Optical Transceive | High Quality And Cost Effective |（TK-1392-3LCD02） | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps SFP+ optical transceiver,1310nm MM 220M transceiver module,cost-effective SFP+ optical transceiver |
||
Product Description

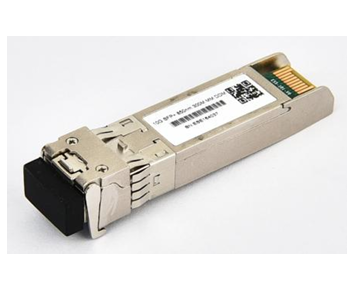

10Gbps 1310nm MM 220M SFP+ Optical Transceiver
High Quality and Cost Effective | Model: TK-1392-3LCD02
Product Overview
The 10Gbps 1310nm MM 220M SFP+ Optical Transceiver supports 9.95 to 10.3Gbps bit rates and is engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm.
The transmitter section features a multiple quantum well DFB laser that meets Class 1 laser safety standards per IEC-60825. The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-LRM 10GEthernet
- Legacy FDDI multimode links
- Compliant with SFF-8472 SFP+ MSA
- Compliant to SFP+ SFF-8431 and SFF-8432
- Compliant to 802.3ae 10GBASE-LRM
- RoHS Compliant
The TK-1392-3LCD02 SFP+ transceiver is a linear-interface transceiver that enables high-performance connectivity.
Key Features
- Supports 9.95 to 10.3Gbps bit rates
- Transmission distance up to 220m (OM1 fiber)
- Hot Pluggable SFP+ footprint
- 1310nm FP transmitter, PIN photo-detector
- Digital Status monitoring Interface
- Duplex LC connector
- RoHS compliant and Lead Free
- Metal enclosure for lower EMI
- Single 3.3V power supply
- Power dissipation < 1W
- Operating case temperature: 0 to 70℃
- Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431, SFF-8432 and SFF-847
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- Compliant with SFF-8472
- Compliant to SFF-8431
- RoHS compliant
Technical Specifications
