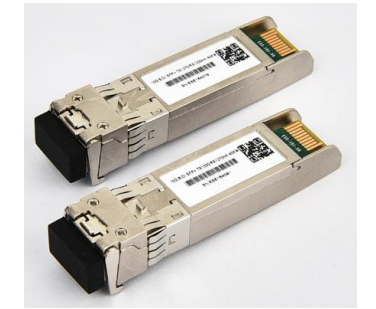

10Gbps SFP+ Bi-Directional Transceiver | 80KM ReachTx1490/Rx1550nm / Tx1550/Rx1490nm |（TK-Bxx92-3LCD80）
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-Bxx92-3LCD80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 10Gbps SFP+ Bi-Directional Transceiver | 80KM ReachTx1490/Rx1550nm / Tx1550/Rx1490nm |（TK-Bxx92-3LCD80） | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps SFP+ transceiver 80KM reach,Bi-Directional SFP+ transceiver Tx1490/Rx1550nm,SFP+ optical transceiver module with warranty |
||
Product Description
10Gbps SFP+ Bi-Directional Transceiver | 80KM Reach
Model: TK-Bxx92-3LCD80 | Wavelength: Tx1490/Rx1550nm / Tx1550/Rx1490nm
Product Overview
The TK-Bxx92-3LCD80 is a hot-pluggable 3.3V Small-Form-Factor transceiver module designed for high-speed communication applications requiring data rates up to 11.1Gb/s. Compliant with SFF-8472 SFP+ MSA standards, this module supports data links up to 80km over 9/125μm single mode fiber.
Engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm, the transmitter section features a multiple quantum well DFB laser that meets Class 1 laser safety standards per IEC-60825. The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-BX
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
Key Features
- Up to 11.1Gbps Data Links
- Up to 80km transmission on Single Mode Fiber
- 1490nm EML laser and APD receiver for ESPB4592-3LCD80
- 1550nm EML laser and APD receiver for ESPB5492-3LCD80
- 2-wire interface with integrated Digital Diagnostic monitoring EEPROM with Serial ID Functionality
- Hot-pluggable SFP+ footprint
- Compliant with SFP+ MSA with LC connector
- Single +3.3V Power Supply
- Operating temperature range: -10°C to 70°C (Commercial) / -40°C to 85°C (Industrial)
- Low power dissipation: 1.5W (Commercial) / 1.6W (Industrial)
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- Compliant with SFF-8472
- Compliant to SFF-8431
- RoHS compliant
Technical Specifications
Electrical Interface Characteristics
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
