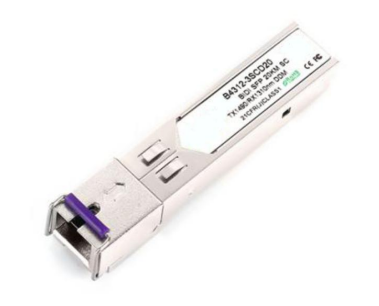

2.488Gbps SFP Bi-Directional Transceiver | High Quality and Cost Effective 20km Reach Tx1490nm/Rx1310nm (TK-B4324-3SCD20)
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 2.488Gbps SFP Bi-Directional Transceiver |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 2.488Gbps SFP Bi-Directional Transceiver | High Quality And Cost Effective 20km Reach Tx1490nm/Rx1310nm (TK-B4324-3SCD20) | Supply Voltage: | 3.15-3.6V |
|---|---|---|---|
| Supply Current: | 185-280 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 250-1200 MV | Transmit Disable Assert Time: | 10 Us |
| ISingle Ended Data Output Swing: | 250-800 MV | Power Supply Rejection: | 100 MVpp |
| Working Temperature: | 0 °C To +70 °C | Storage Temperature: | -40 °C To +85 °C (Industrial) |
| Warranty: | 1 Years, Lifetime Maintenance | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | 2.488Gbps SFP transceiver 20km reach,Bi-Directional SFP transceiver Tx1490nm/Rx1310nm,Optical transceiver module with warranty |
||
Product Description
2.488Gbps SFP Bi-Directional Transceiver
High Quality and Cost Effective 20km Reach Tx1490nm/Rx1310nm (TK-B4324-3SCD20)
Product Overview
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting dual data-rates of 2.488Gbps/2.125Gbps with 20KM transmission distance over single-mode fiber.
The transceiver consists of three main sections: a DFB laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy Class I laser safety requirements and are compliant with SFP Multi-Source Agreement (MSA) and SFF-8472 standards.
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Key Features
- Data-rate of 2.488Gbps/2.125Gbps operation
- 1490nm DFB laser and APD photo detector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with Simplex SC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with SDH/SONET OC-48/STM-16
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard: 0 to +70°C / -40°C to +85°C (Industrial)
Technical Specifications
Optic Characteristics - Transmitter
Notes: 1. Measure at 2^23-1 NRZ PRBS pattern 2. Transmitter eye mask definition
Optic Characteristics - Receiver
Notes: 1. Measured with Light source 1490nm (1310nm), ER=10dB; BER ≤10^-12 @PRBS=2^23-1 NRZ. 2. When LOS de-asserted, the RX data+/- output is signal output.
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
