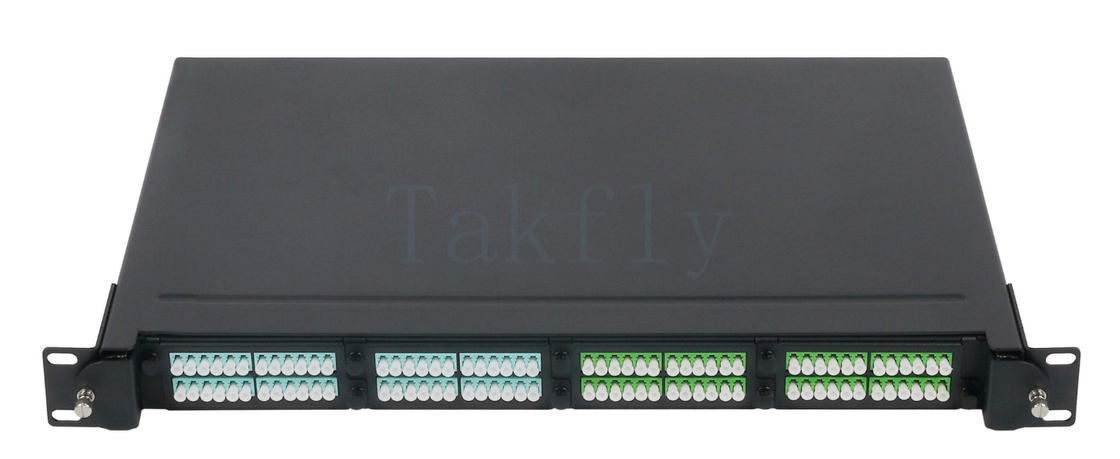

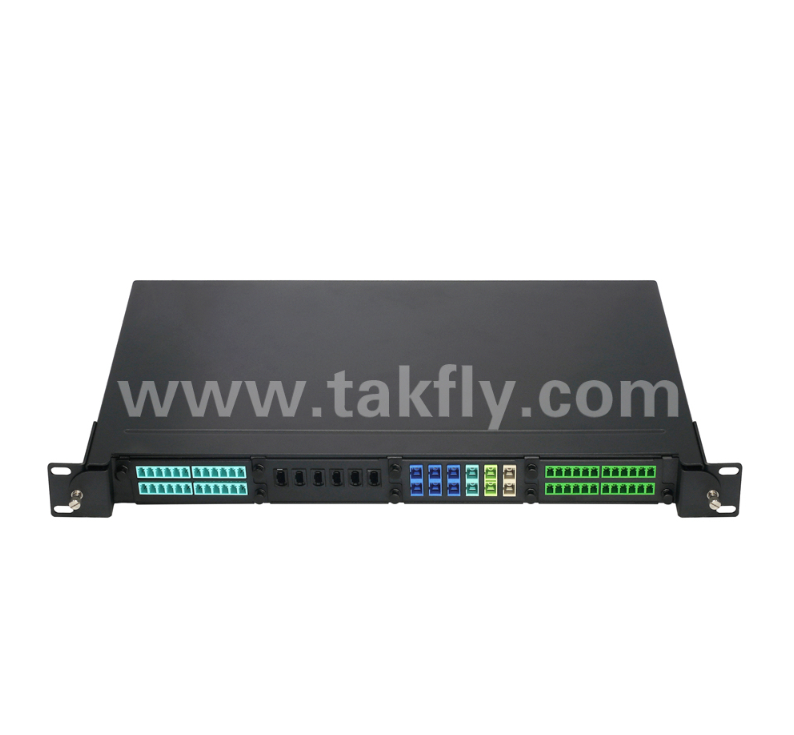

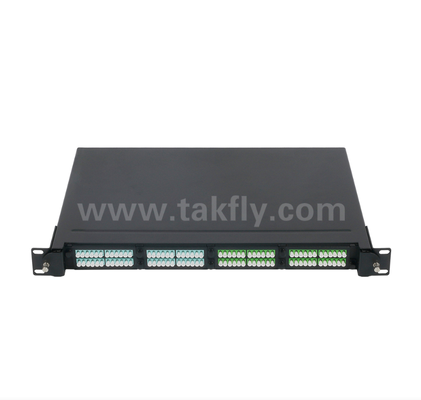

1U 19" MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
Product Details:
| Place of Origin: | ShenZhen & ZhongShan,China |
| Brand Name: | OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | TK-HRS-1096E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 working days depend on QTY |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 500 PCS/Days |
|
Detail Information |
|||
| Highlight: | 1U 19-inch MPO patch panel,high-density MTP fiber optic panel,rack-mount 4-cassette patch panel |
||
|---|---|---|---|
Product Description
1U 19" MPO/MTP High-Density Patch Panel – 4 Cassette Slots, Rack-Mount
This 1U 19-inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center applications including MDF installations, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
The patch panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interfaces or 96 cores for LC interfaces. Each independent pre-terminated module box is housed within the optical fiber distribution frame to create a complete patch panel system.
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base stations
- Data center rooms in industrial areas
- Data center rooms in commercial buildings
- CATV systems
- LAN networks
- WAN networks
- FTTX deployments
Key Features
- Constructed from high-quality aluminum alloy with sturdy, durable electrostatic coating surface
- Designed for 19-inch rack-mount and cabinet installation, ideal for cassette module centralized management
- Flexible configuration options: 1U high-density capacity of 96 fibers for LC interface or installation with LC, SC, MPO/MTP adapter panels fusion splice type
- Available with male or female MPO/MTP connectors with precise PIN and adapter positioning for stable connections
- Modular design with plug-in locking structure, clear fiber line sequence identification for easy testing, installation, removal and adjustment
- Compact, lightweight cassette modules and patch panel with impact-resistant, high-pressure, flame-retardant, corrosion-resistant construction
Technical Parameters
Packaging
Structure Design
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry exhibitions including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to your requirements
