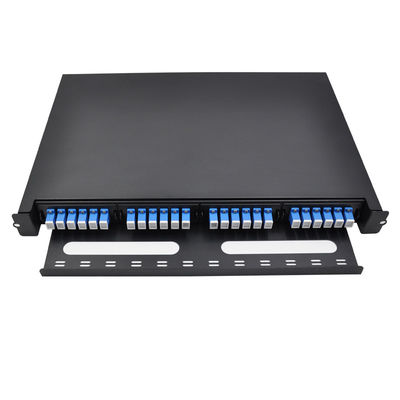

SC 24 Ports 1U Rack Mount Slide Fiber Optic Patch Panel For Data Center Cabinet

Product Description

                                          SC 24 Ports 1U Rack Mount Slide Fiber Optic Patch Panel For Data Center Cabinet

Fiber Optic Patch Panel Description:
The 1U patch panel's Connector plugging durability life>1000 times. The curvature radius of the whole process is controlled to ensure that the radius of curvature of the fiber at any position is greater than 30mm. Each optical fiber is clearly marked, so as to avoid the confusion that may be caused by disassembly during maintenance. Flame retardant: meet the requirements of GB5169.7 experiment A.

Connector attenuation (insertion, interchange, repetition) ≤ 0.3dB; Return loss: APC type≥60dB, UPC type≥50dB, PC type≥40dB; High-voltage protective grounding device: Insulation resistance: ≥1000MΩ/500V (DC). Withstand voltage: ≥3000V (DC)/1min, no breakdown, no arcing. Grounding wire cross-sectional area: >6mm2, there is an obvious grounding mark on the ground

The optical fiber distribution box is used for the introduction, fixing, and stripping protection of optical cables, fusion, and protection of optical fibers, storage of pigtails, storage, and management of jumpers, fixed connection and cross-connection of optical fibers, etc.; at the same time, it can be based on customer requirements Install value-added module units such as optical splitter and wavelength division multiplexer.

Fiber Optic Patch Panel Features:

• Standard size, lightweight, and reasonable structure
• FC, SC, ST, LC adapter patch panel for option
• Front access panel design for easy operation
• Snap in Lock Design for easy change
• Suitable for 19’’ standard optic distribution cabinets
• Max. capacity 24 fibers
• 4 fiber cable entry ports at the rear side
• Materials: aluminum


Fiber Optic Patch Panel Application:

• Telecommunications
• Fiber to the home (FTTH)
• LAN/WAN
• CATV​

Fiber Optic Patch Panel Parameter:




Fiber Optic Patch Panel Details:


How to order MPO/ MTP patch panel:

• Port count: 12/24/48/96/144/288 ports
• Connector type: MPO, E2000, LC, SC, FC, ST, etc.
• Patch panel type: fusion tray type, MPO cassette type.
• Size: 1U/ 2U,etc
• Load type: full set/ empty box


FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
4. Q: What's your warranty?
A: Depends on different products, 1-3 years since delivery, but only responsible for non-artificial damage.
5. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. The Confidentiality Agreement is acceptable.
6. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
7. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
    2.We will offer our quotation with lead time.
    3.After the quotation confirmed, we will send a PI with our bank account.
    4.Production will be arranged after the payment received.
    5.Confirm the consignee with you before we deliver it.
    6.The tracking number will be provided after the delivery.

8.Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
